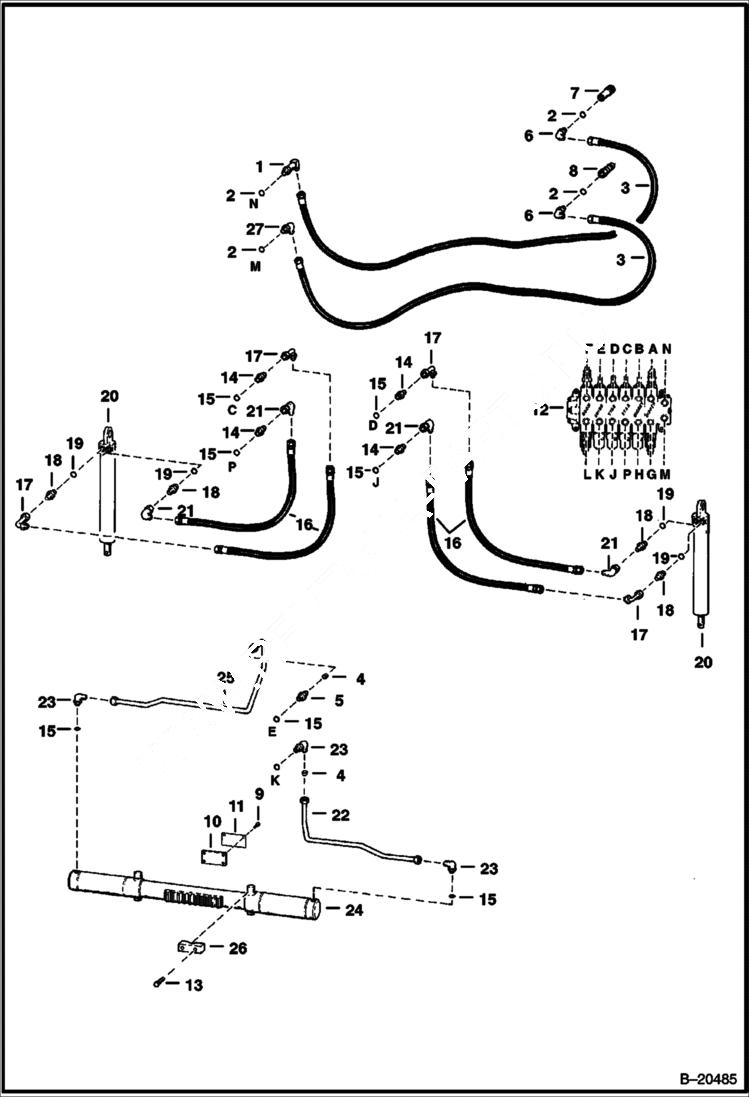

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics With Husco Valve) (909 113802037 & Above) 909 BACKHOE

1

6519195

ELBOW W/Ref. 2

2

79K10

O RING 10 Use with poppet couplers

2

79K12

O RING 10 Use with flush face couplers

3

672554

HYD HOSE

4

6592853

ORIFICE .09 (2,29 mm) dia.

5

15K6

ADAPTER W/Ref. 15

6

17K7

ELBOW W/Ref. 2 - used with poppet couplers

6

17KB1012

FITTING, HYD ELBOW W/Ref. 2 - used with flush face couplers - Was 1302104 - A

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

48K16

O RING 10 Use with poppet coupler

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

84G3712

BOLT 5

10

6560604

WEAR PLATE

11

6562822

SHIM

12

VALVE See Illustration BACKHOE/ E1622A

13

MAIN FRAME See Illustration BACKHOE/ B20484

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6593148

HOSE

17

6630814

ELBOW

18

15K5

FITTING W/Ref. 19

19

79K6

O RING 10

20

CYLINDER See Illustration BACKHOE/ B20477B See Illustration BACKHOE/ C1203C stab.

21

11K5

FITTING

22

6592842

TUBE

23

17K6

ELBOW W/Ref. 15

24

CYLINDER See Illustration BACKHOE/ C2592 swing

25

6592841

TUBE

26

6560428

RETAINER

27

17K7

ELBOW
