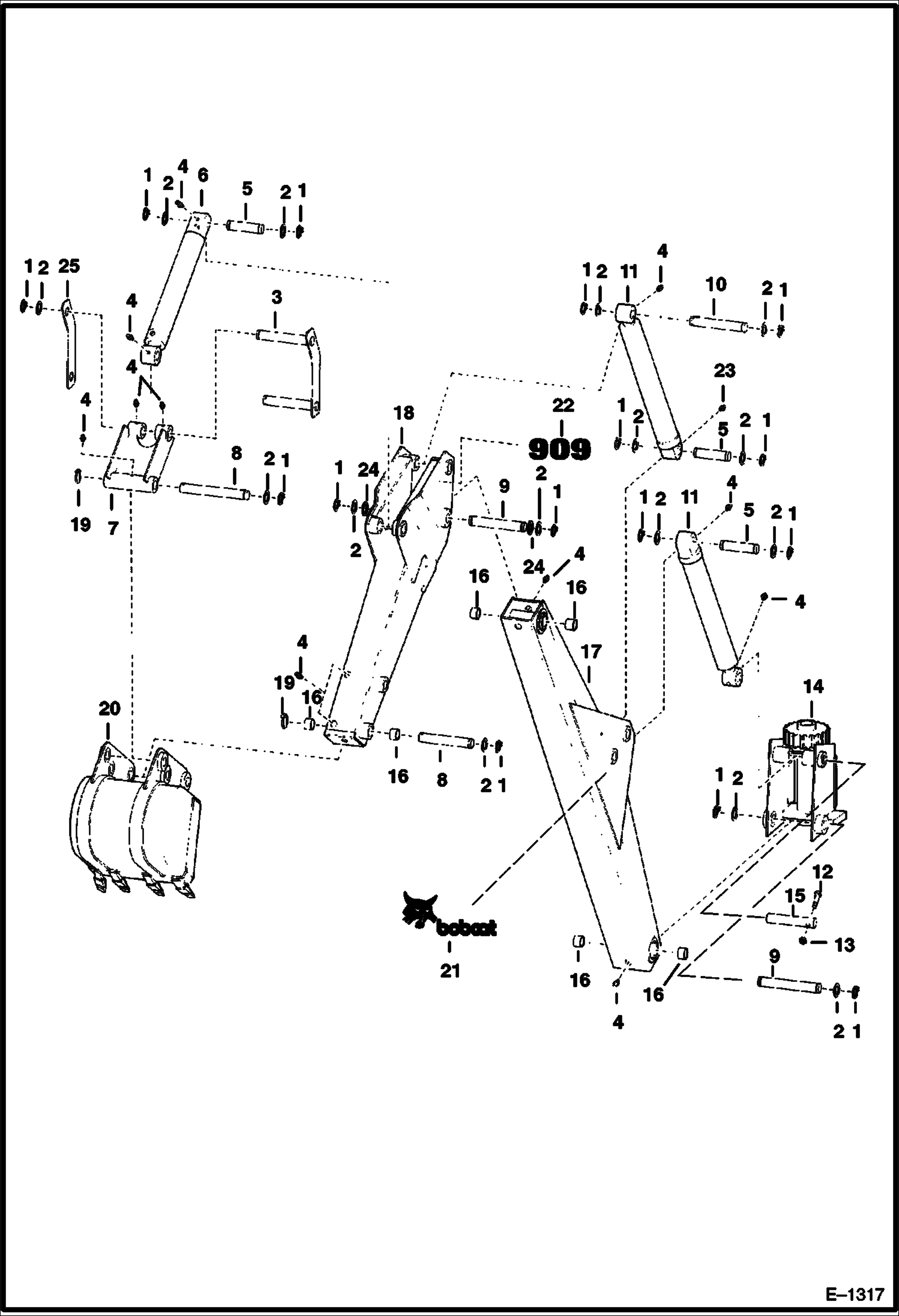

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick) (909) 909 BACKHOE

1

22J24

RING SNAP retainer - Was 6538285 - B

2

6584872

WASHER 1/8'' (3.18 mm) thick

3

6560390

LINK W/pins

4

10H25

FITTING, GREASE 5

5

6560350

PIN

6

CYLINDER See Illustration BACKHOE/ D1579 bucket

7

6592874

LINK

8

6560401

PIN, PIVOT BUCKET

9

6560349

PIN

10

6560352

PIN

11

CYLINDER See Illustration BACKHOE/ B20903 boom & dipperstick

12

17C648

BOLT 5

13

61D6

NUT 5

14

FRAME See Illustration BACKHOE/ B20484 swing

15

6560351

PIN

16

6560334

BUSHING

17

6560727

BOOM W/Ref. 16

18

6560792

DIPPERSTICK W/Ref. 16

19

6560382

PIN, LOCK ring lock

20

BUCKET See Illustration BACKHOE/ B20489 See Illustration BACKHOE/ B20488 SALES

21

6808545

DECAL bobcat - R.H. - Was 6557412 - A

21

6808546

DECAL bobcat - L.H. - Was 6557413 - A

22

6593413

DECAL

23

12H15

FITTING, GREASE 5

24

6584873

WASHER 1/16'' (1,59 mm) thick

25

6560391

LINK
