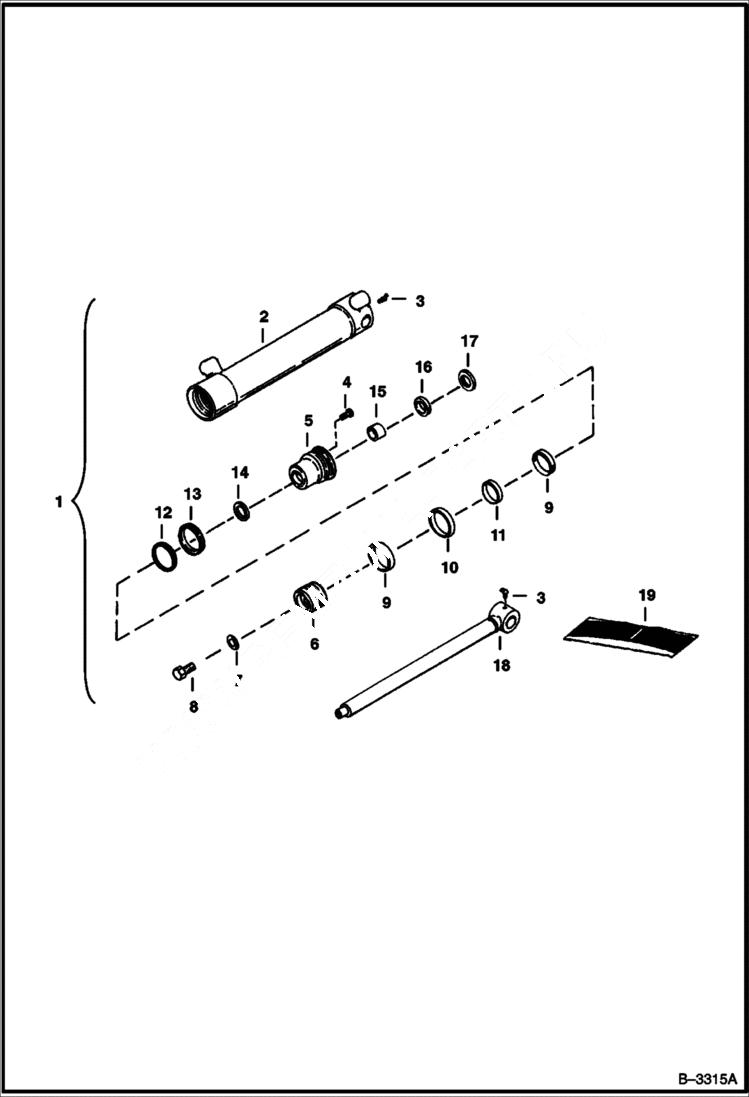

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (908A) (908B) 908A/908B BACKHOE

1

6513695

CYLINDER Ref. 2-18

2

6513718

BARREL

3

11H15

GREASE FITTING

4

65G804

SCREW

5

GLAND NSS - Was 6660938 - A

6

6513720

PISTON

7

6519809

WASHER

8

6513721

BOLT

9

RING NSS

10

RING NSS

11

SEAL NSS

12

O-RING NSS

13

WASHER NSS

14

SEAL NSS

15

BUSHING NSS

16

RING NSS

17

WIPER NSS

18

6513719

ROD

19

6513723

SEAL KIT Ref. 9-17
