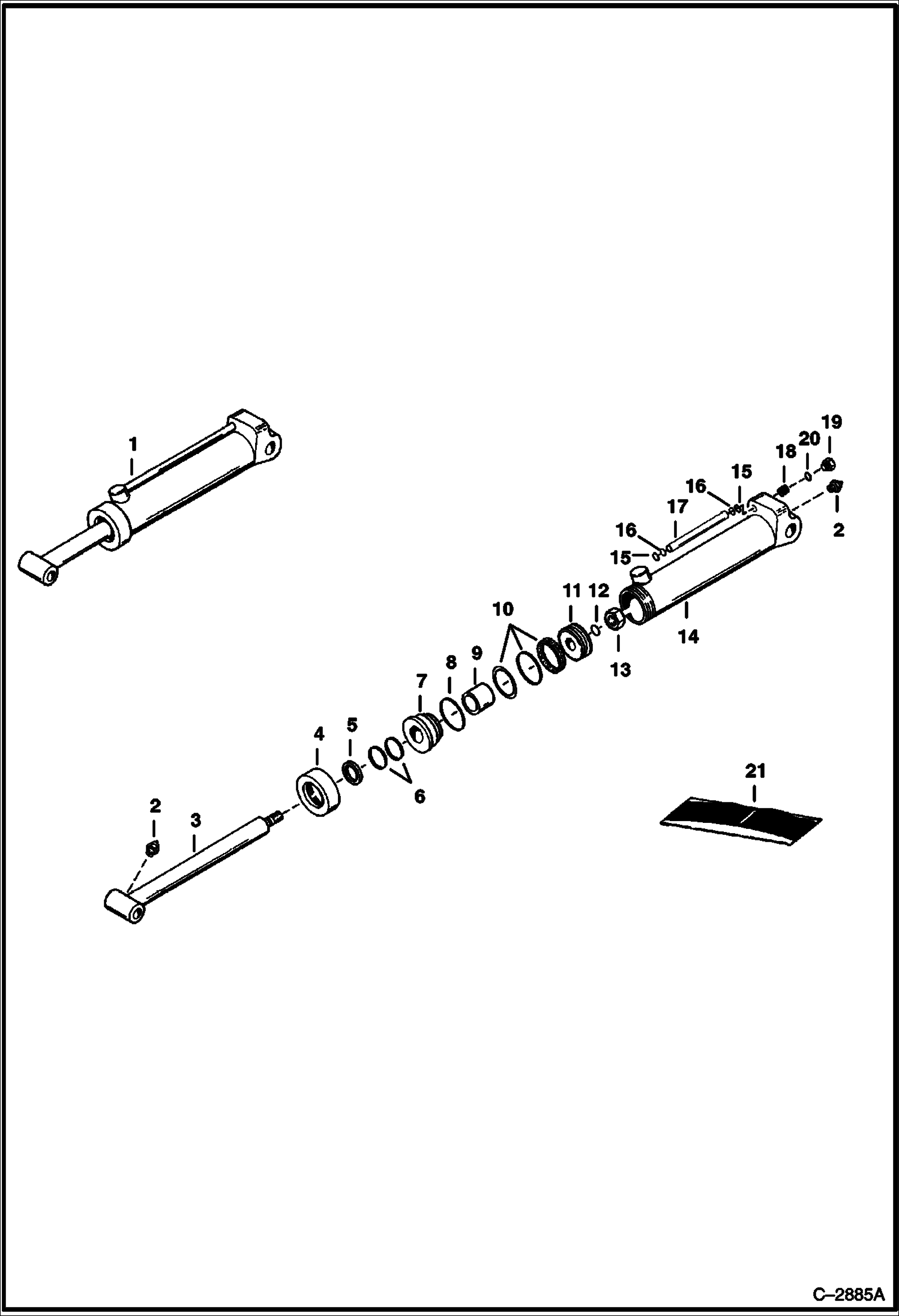

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (908A) 908A/908B BACKHOE

1

CYLINDER See BTI110 NLA - lantex - Was 6512877 - A

2

10H25

FITTING, GREASE 5

3

6512890

ROD

4

6512888

COLLAR

5

WIPER NSS

6

SEAL NSS

7

6512887

GLAND

8

O-RING NSS

9

SPACER NLA

10

SEAL NSS

11

PISTON NLA - Was 6512889 - A

12

O-RING NSS

13

86D20

NUT

14

CASE NLA

15

O-RING NSS

16

RING NSS

17

MANIFOLD NSS

18

SPRING NLA - Was 6510921 - A

19

24K6

FITTING

20

79K8

O RING 10

21

6512891

SEAL KIT Ref. 5, 6, 8, 10 & 12

21

KIT NLA - manifold - Ref. 15-17 - Was 6510923 - A
