BACKHOE (Swing Cylinder) (908A) (908B)

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (908A) (908B) 908A/908B BACKHOE

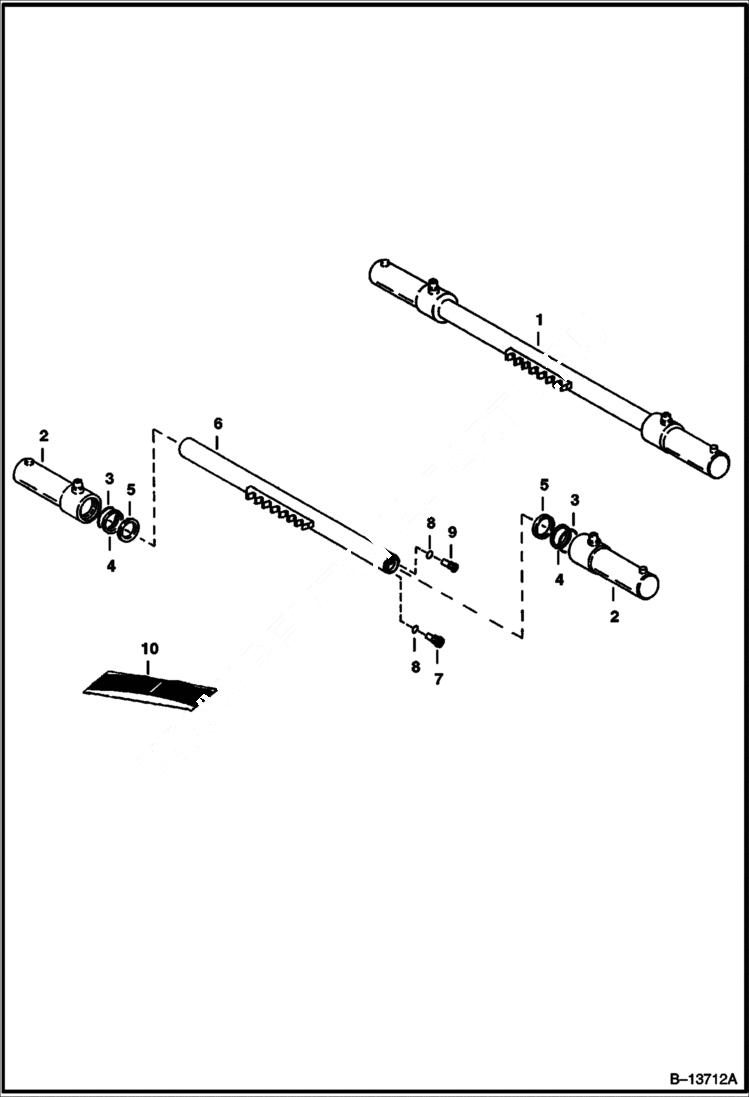

Схема запчастей Bobcat BACKHOE - BACKHOE (Swing Cylinder) (908A) (908B) 908A/908B BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6518012

CYLINDER swing - Ref. 2-9

2

6518044

CASE

3

6653101

O-RING Was NSS - D

4

6653104

WASHER back-up - Was NSS - D

5

6653103

SEAL dust - Was NSS - D

6

6518057

ROD piston assy.

7

6518058

RELIEF VALVE W/Ref. 8

8

6653102

O-RING Was NSS - D

9

6518059

RELIEF VALVE W/Ref. 8

10

6515459

SEAL KIT Ref. 3-5 & 8
