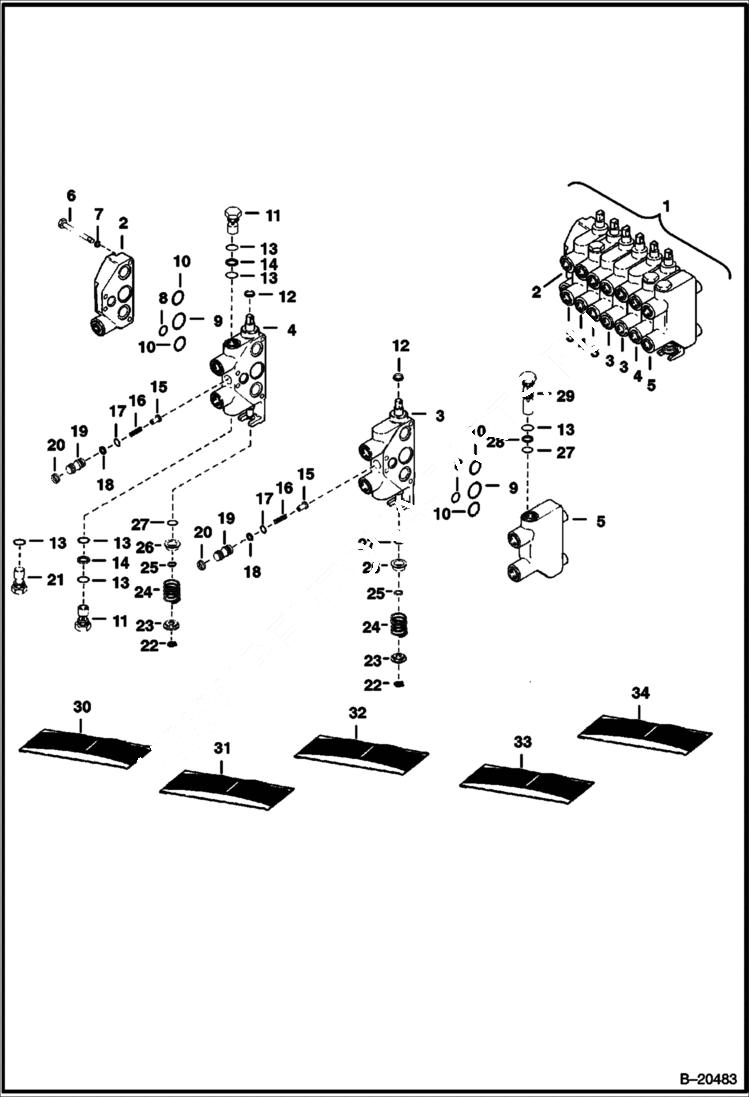

Запчасти Bobcat BACKHOE BACKHOE (Valve) (Cessna) (908B) 908A/908B BACKHOE

1

6518006

VALVE

2

4149056

END PLATE end

3

SECTION valve - bucket, stabilizer & swing sections - Was 4149060B - A

4

4149058

VALVE valve - boom & crowd sections

5

4149057

PORT PLAT port

6

17C6174

BOLT section retaining

7

4E6

WASHER

8

O-RING NSS

9

O-RING NSS

10

O-RING NSS

11

RELIEF VALVE NLA - W/Ref. 13 - Was 6512602 - A

12

SEAL NSS - spool

13

O-RING NSS

14

WASHER NSS - back-up

15

4149071

PLUNGER L lift check

16

1550482

SPRING

17

O-RING NSS

18

WASHER NSS - back-up

19

4149069

BODY LIFT lift check

20

ORIFICE NSS - boom section - top port - .138'' (3,49 mm) dia. - Was 6518042 - A

20

6518998

ORIFICE swing section - both ports - .109'' (2,77 mm) dia.

21

6518043

PLUG W/Ref. 13

22

743609

RET RING retainer

23

4149067

WASHER, S shallow

24

4149068

SPRING SP spool

25

4149072

WASHER wire

26

4149070

WASHER deep

27

O-RING NSS

28

WASHER NSS - back-up

29

6518052

RELIEF VALVE W/Ref. 13, 27 & 28

30

6515455

SEAL KIT between sections - Ref. 8-10

31

6510058

SEAL KIT stabilizer & swing sections - Ref. 12, 17 & 27

32

6510059

SEAL KIT boom or crowd sections - Ref. 12-14, 17, 18 & 27

33

5294158

SEAL KIT relief valve - Ref. 13, 27 & 28 - Was 6515458 - A

34

6515454

SEAL KIT major - Ref. 30-33
