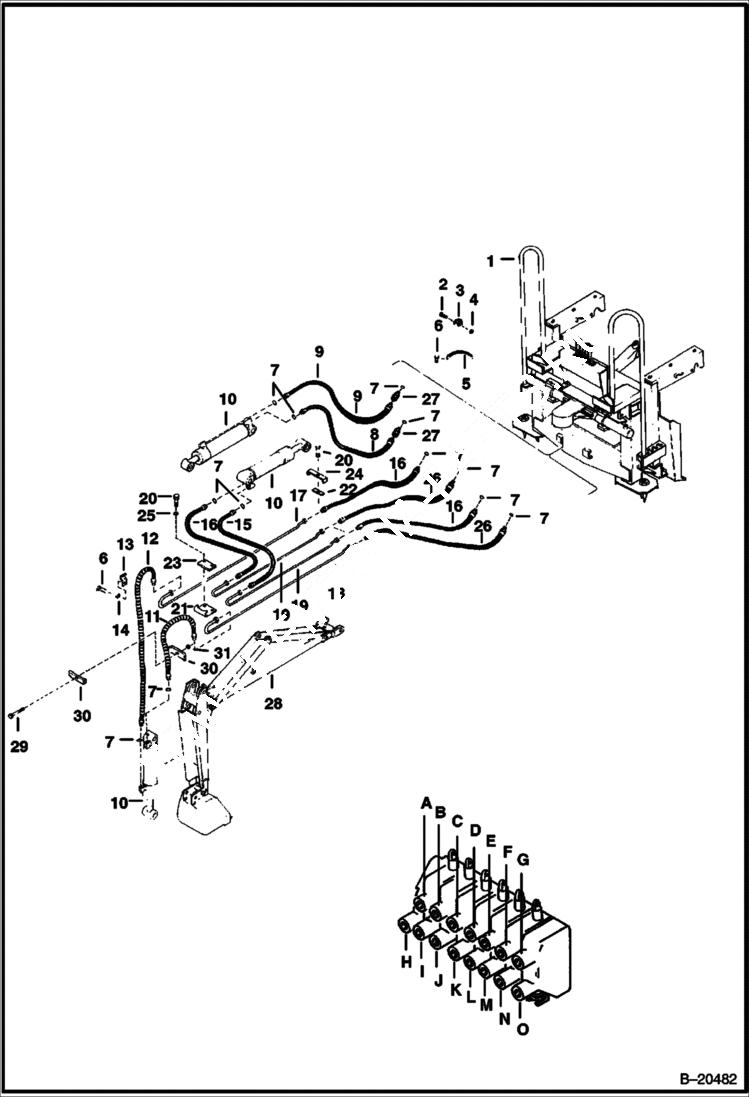

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (908B) 908A/908B BACKHOE

1

MAIN FRAME See Illustration BACKHOE/ D1507

2

SCREW NLA - machine - Was 89G000424B - A

3

6518020

CLAMP

4

61D4

NUT 5

5

6518019

SPRING

6

17C412

BOLT 5

7

79K8

O RING 10

8

6510198

HOSE

9

6513769

HOSE

10

6513695

CYLINDER See Illustration BACKHOE/ B3315A

11

6510181

HOSE

12

6513784

HOSE

13

6518027

CLAMP

14

6515305

NUT

15

6510195

HOSE

16

6510196

HOSE

17

6510134

TUBE

18

6510133

TUBE

19

6510135

TUBE

20

17C532

BOLT 5

21

6518022

CLAMP

22

6518025

CLAMP

23

6510318

CUSHION

24

6518026

CLAMP

25

23E5

L WASHER

26

6510200

HOSE

27

15K6

ADAPTER W/Ref. 7

28

BOOM See Illustration BACKHOE/ E1271 W/bucket & dipperstick

29

17C620

BOLT

30

6502773

CLAMP

31

85D6

NUT, 5
