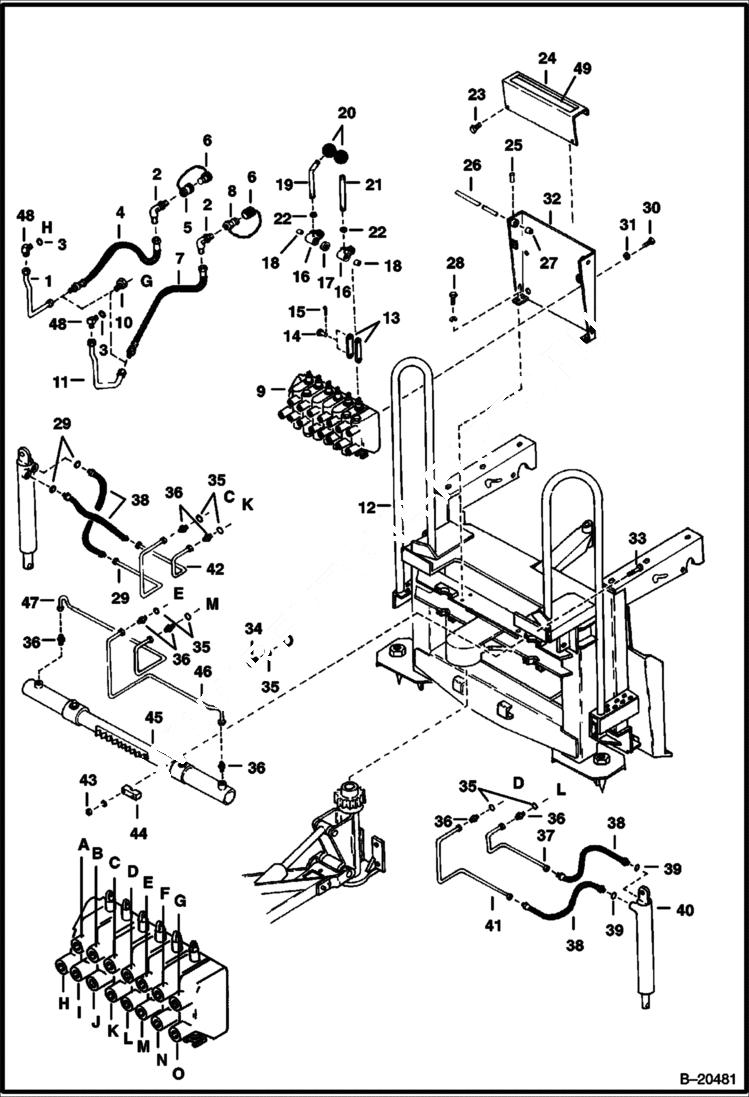

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (908B) 908A/908B BACKHOE

1

6519819

TUBE

2

17K7

ELBOW Use with poppet couplers

2

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A

3

79K10

O RING 10 Use with poppet couplers

3

79K12

O RING 10 Use with flush face couplers

4

6560787

HOSE

5

6598758

COUPLER, POPPET FEMALE straight

5

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

5

48K16

O RING 10 for poppet coupler

6

6513709

CAP PLUG assy. - rubber

6

6515168

CAP steel

6

6515167

PLUG steel

7

6560786

HOSE

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6518006

VALVE See Illustration BACKHOE/ B20483

10

93F7

CONNCTR

11

TUBE NLA - Was 6519820 - A

12

MAIN FRAME See Illustration BACKHOE/ D1507

13

6510131

LINK

14

6518002

PIN

14

6510316

PIN

15

1F208

PIN

16

6510132

PIVOT

17

SPACER NLA - Was 6510317 - A

18

6510315

BUSHING

19

6510129

LEVER

20

6510130

KNOB

21

6510128

LEVER

22

7D6

NUT

23

84G3112

BOLT 5 Was 14G-512 - A

24

6518005

COVER

25

659648

PIN Was 654724 - A

26

6518000

SHAFT

27

6518001

BUSHING

28

17C620

BOLT

29

6510141

TUBE

30

17C716

BOLT

31

4E7

WASHER

32

6518004

BRACKET valve mtg.

33

17C644

BOLT

34

24K6

FITTING

35

79K8

O RING 10

36

15K6

ADAPTER W/Ref. 35

37

6510138

TUBE

38

6510199

HOSE

39

79K6

O RING 10

40

CYLINDER See Illustration BACKHOE/ B20477A See Illustration BACKHOE/ C1203B stab.

41

6510140

TUBE

42

6510139

TUBE

43

85D6

NUT, 5

44

6518969

RETAINER

45

6518012

CYLINDER See Illustration BACKHOE/ B13712A

46

6510136

TUBE

47

TUBE NLA - Was 6510137 - A

48

17K7

ELBOW

49

6561627

DECAL
