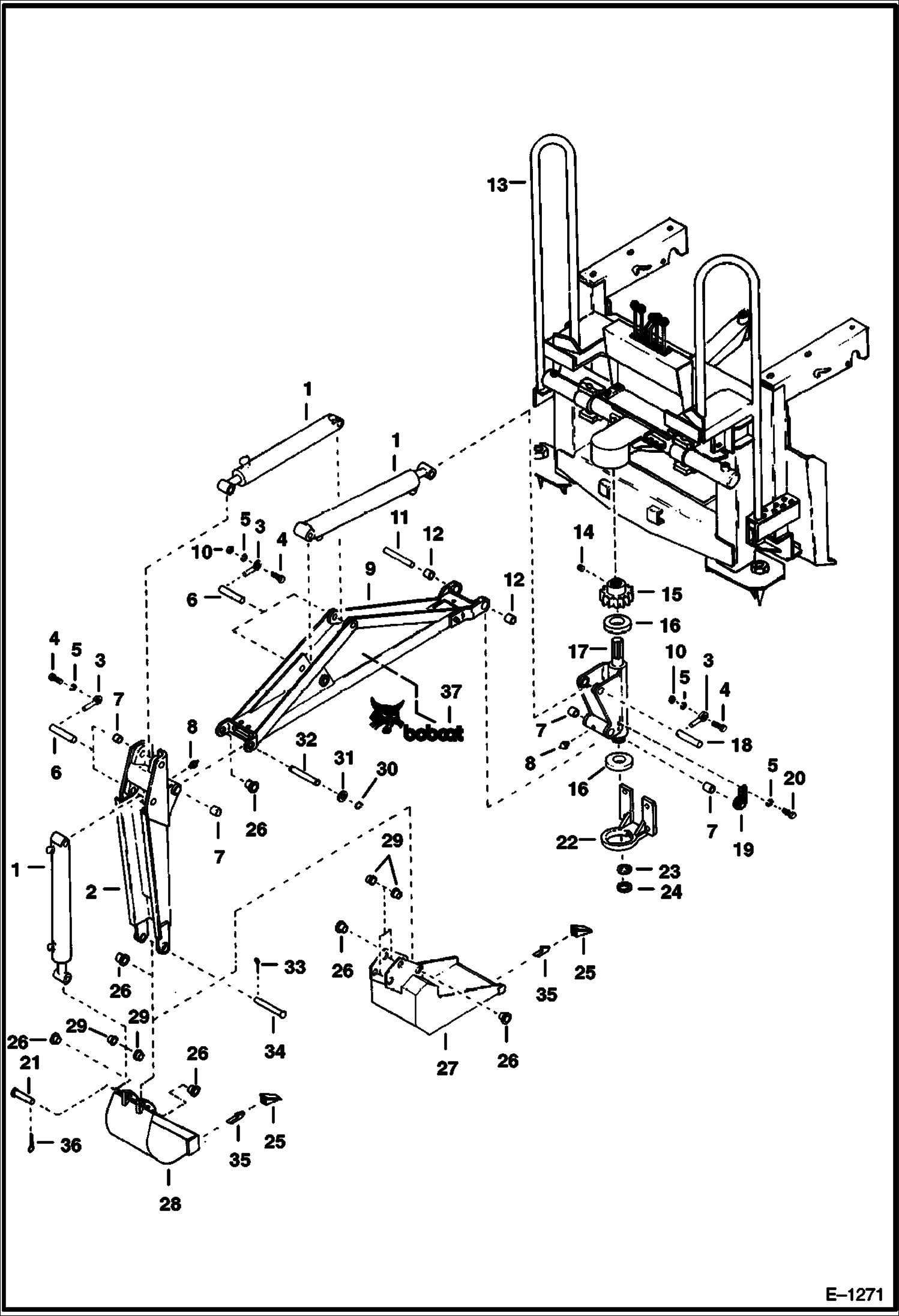

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick) (908B) 908A/908B BACKHOE

1

6513695

CYLINDER See Illustration BACKHOE/ B3315A

2

6517969

CROWD W/Ref. 7 & 8

3

6517976

RETAINER

4

17C624

BOLT 5

5

4E6

WASHER

6

6517975

PIN

7

6517959

BUSHING

8

10H35

FITTING, GREASE 10

9

6517965

BOOM W/Ref. 12 & 26

10

61D6

NUT 5

11

6517977

PIN

12

6517964

BUSHING

13

MAIN FRAME See Illustration BACKHOE/ D1507

14

SET SCREW NLA - Was 15G000608B - A

15

6517956

GEAR swing

16

6517957

BEARING

17

6517958

POST swing - W/Ref. 7 & 8

18

6518551

PIN

19

6517960

BUMPER rubber

20

17C816

BOLT

21

6517971

PIN

22

6517961

HOUSING lower

23

6517963

WASHER

24

6517962

NUT spanner

25

1550017

TOOTH, BUCKET 25

26

6517966

BUSHING

27

BUCKET See Illustration BACKHOE/ B20478A SALES - bell hole

28

BUCKET See Illustration BACKHOE/ B13654A See Illustration BACKHOE/ B20478A SALES - standard

29

6517985

BUSHING

30

710822

RING

31

6517968

WASHER

32

6517967

PIN

33

1F1232

PIN

34

6517970

PIN

35

6515119

SHANK tooth

36

1F828

PIN

37

6560986

DECAL, LOGO BOBCAT AND HEAD LH

37

6560987

DECAL logo - R.H.
