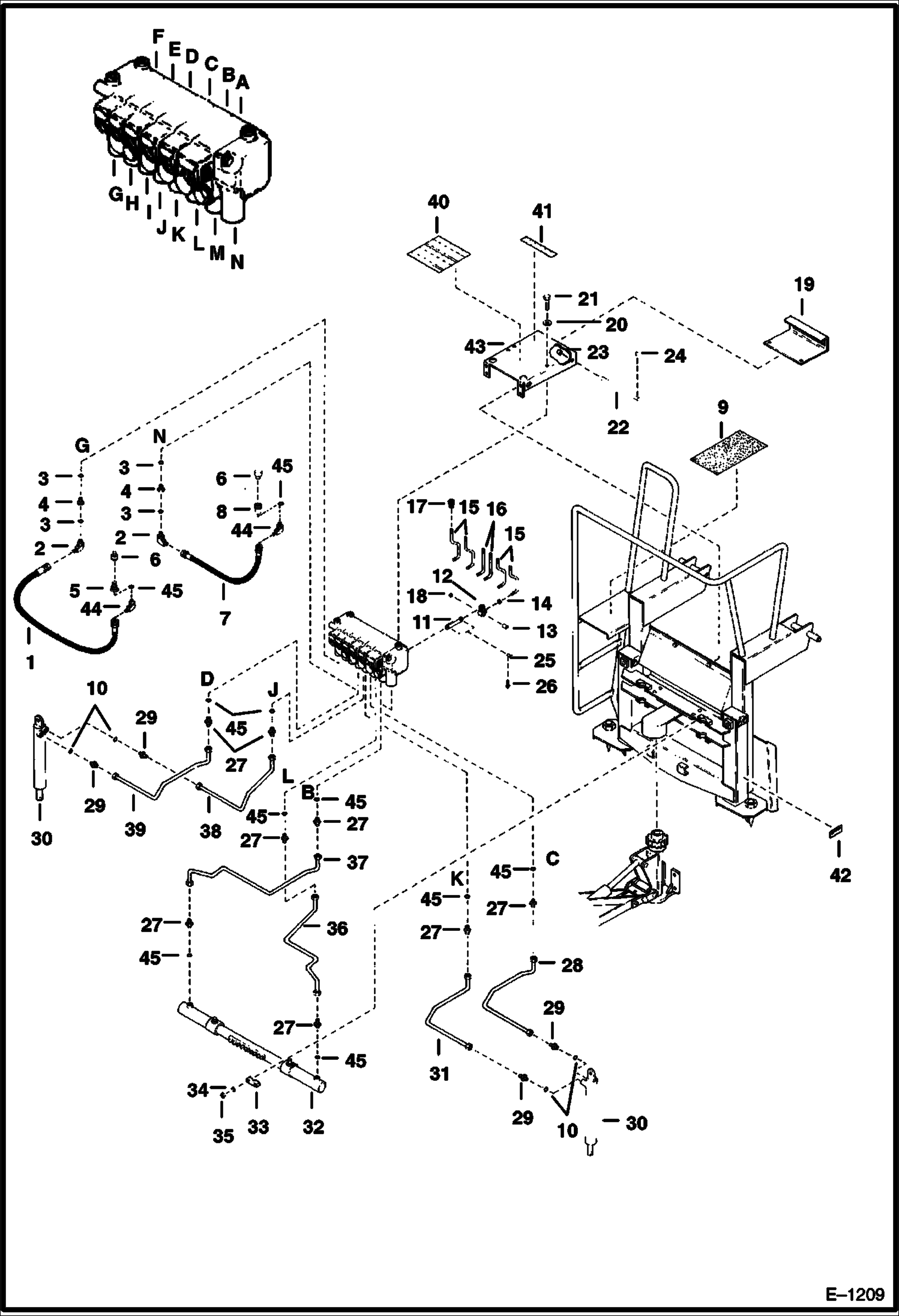

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (908A) 908A/908B BACKHOE

1

6560315

HOSE

2

17K7

ELBOW W/Ref. 3

3

79K10

O RING 10

4

93F7

CONNCTR W/Ref. 3

5

6513634

QUICK COUPLER male - poppet

5

6667806

COUPLER male - flush face

5

6669659

O-RING

6

6513709

CAP PLUG assy. - rubber

6

6515168

CAP steel

6

6515167

PLUG steel

7

6560316

HOSE

8

6512159

QUICK COUPLER female - poppet

8

6667805

COUPLER, FF FEMALE straight

8

58K211

O RING 10 Use with poppet coupler

9

6557902

SAFETY TREAD

10

79K6

O RING 10

11

6510131

LINK

12

6510132

PIVOT

13

6510315

BUSHING

14

7D6

NUT

15

6557857

LEVER

16

LEVER NLA - Was 6557858 - A

17

6510130

KNOB

18

SPACER NLA - Was 6510317 - A

19

6518005

COVER

20

25E20

WASHER

21

17C712

BOLT

22

6518000

SHAFT

23

6518001

BUSHING

24

659648

PIN Was 654724 - A

25

6518002

PIN

26

1F208

PIN

27

15K6

ADAPTER W/Ref. 45

28

TUBE NLA - Was 6557851 - A

29

755056

CONNECTR W/Ref. 10

30

CYLINDER See Illustration BACKHOE/ B20477A See Illustration BACKHOE/ C1203B stab.

31

TUBE NLA - Was 6557852 - A

32

6518012

CYLINDER See Illustration BACKHOE/ B13712A SWING

33

6518969

RETAINER

34

4E6

WASHER

35

61D6

NUT 5

36

TUBE NLA - Was 6557854 - A

37

6557855

TUBE

38

TUBE NLA - Was 6557856 - A

39

TUBE NLA - Was 6557853 - A

40

6558291

DECAL mtg. instructions

41

6561627

DECAL levers

42

6558051

DECAL caution

43

6518004

BRACKET valve mtg.

44

17K6

ELBOW W/Ref. 45

45

79K8

O RING 10
