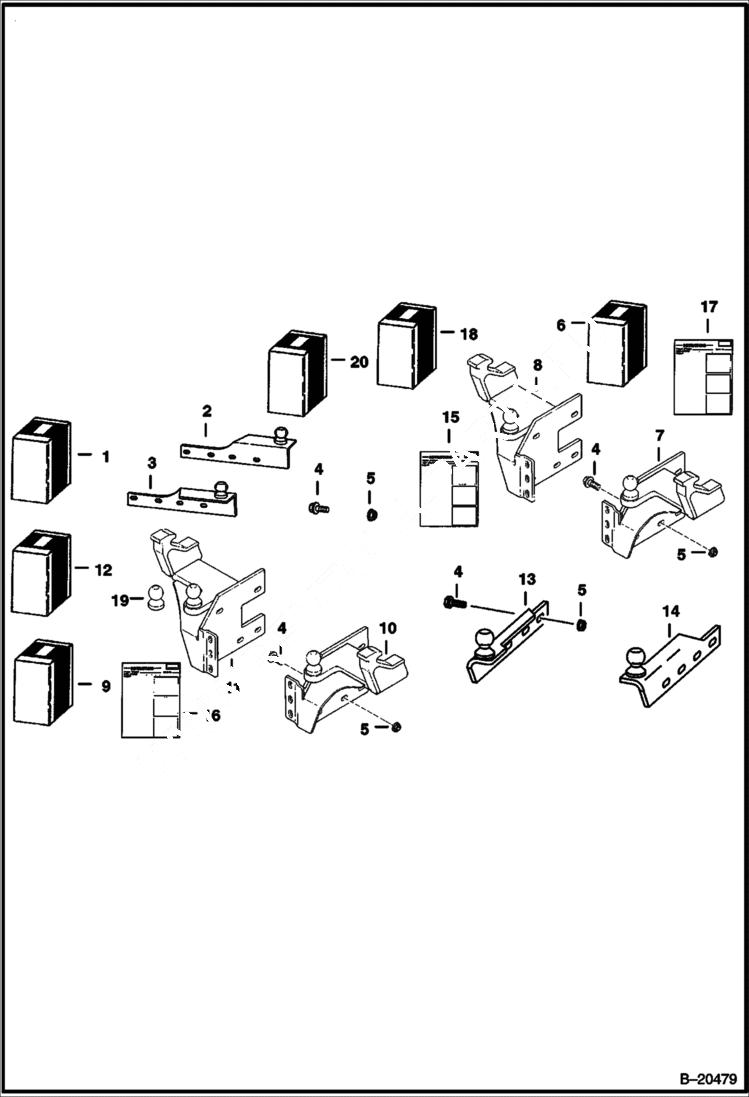

Запчасти Bobcat BACKHOE BACKHOE (Mounting Kits) (907) 907 BACKHOE

1

6562446

KIT 640 & 740 series - Ref. 2-5 & 15 - Was Sales - A

2

6561942

MOUNT L.H.

3

6561943

MOUNT R.H.

4

31C1028

SCREW 8 used in Ref. 1 & 12 and 16 used in Ref. 6 & 9

5

53D10

NUT 8 used in Ref. 1 & 12 and 16 used in Ref. 6 & 9

6

KIT SALES - 640 series - Ref. 4, 5, 7, 8 & 16 - SALES #6538130

7

6538705

MOUNT L.H.

8

6538706

MOUNT R.H.

9

KIT SALES - 740 series - Ref. 4, 5, 10, 11 & 16 - SALES #6538674

10

6538661

MOUNT L.H.

11

6538673

MOUNT R.H.

12

KIT SALES - 751 & 753 & S130, T140 - Ref. 4, 5, 13, 14 & 17 - SALES #6534612

13

6531694

MOUNT L.H.

14

6531692

MOUNT R.H.

15

6556976

INSTRUCTIONS for Ref. 1

16

6720596

INSTRUCTIONS for Ref. 6 & 9

17

6720179

INSTRUCTION W/Ref. 12

18

KIT See Illustration BACKHOE/ TS1069A SALES - 753 (mounting ball conversion)

19

6539094

BALL

20

6718759AR

KIT translation - for Ref. 12

20

6718759BR

KIT translation - for Ref. 12

20

6720179AR

INSTRUCTION translated for Ref. 12

20

6720179BR

INSTRUCTION translated for Ref. 12
