Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (Bobcat) (907) 907 BACKHOE

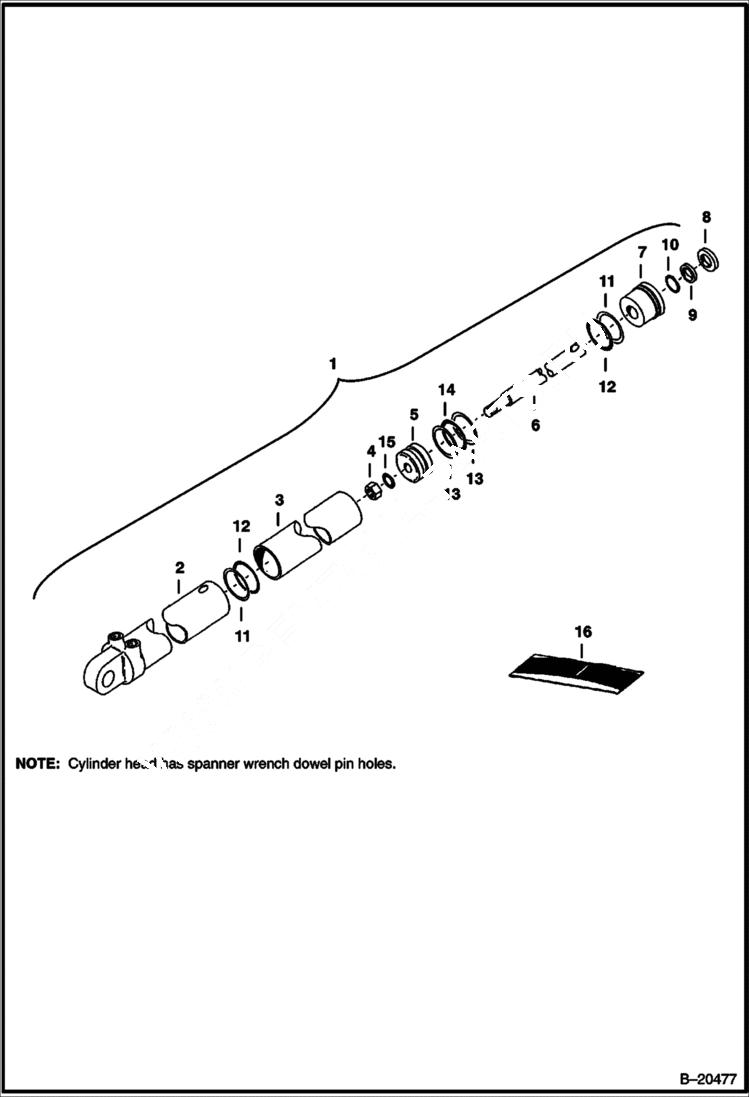

Схема запчастей Bobcat BACKHOE - BACKHOE (Stabilizer Cylinder) (Bobcat) (907) 907 BACKHOE

Артикул

Название

Примечание

Количество

1

7102042

CYLINDER Was 6592266 - A

2

7102043

BARREL W/head assy. - Was 6592802 - A

3

6592274

BARREL outer

4

92D10

NUT Was 86D000010B - B

5

6592273

PISTON

6

6592271

ROD

7

6592275

HEAD

8

6666542

SEAL, WIPER ROD Was NSS - D

9

6704243

SEAL u-cup - Was NSS - D

10

O-RING NSS - W/Ref. 9

11

80K328

BK UP RG back-up - Was NSS - D

12

25K60128

O RING 10 Was 54K60128 - D

13

80K222

BK UP RG back-up - Was NSS - D

14

58K222

O-RING Was NSS - D

15

25K20016

O RING 10 Was NSS - D

16

7102597

SEAL KIT Ref. 4, 8-15 - Was 6588378 - A

Выбрано товаров: 16
