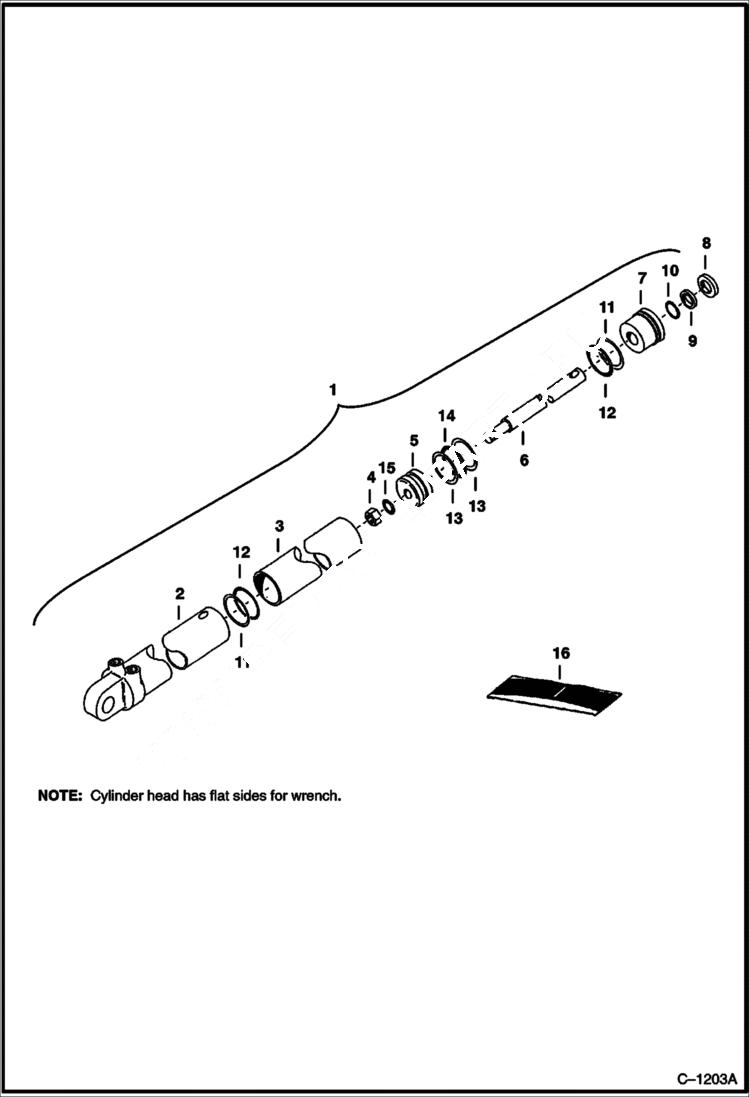

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (Cessna) (907) 907 BACKHOE

1

CYLINDER See Illustration BACKHOE/ B20477 NLA - Order 7102042

2

6598339

BARREL W/head assy.

3

6598341

BARREL outer

4

NUT NLA - Was 27D000010B - A

5

6598338

PISTON

6

ROD NLA - Was 6598340 - A

7

6598337

HEAD

8

SEAL NSS - u-cup

9

WASHER NSS - back-up

10

O-RING NSS - W/Ref. 9

11

WASHER NSS - back-up

12

O-RING NSS

13

WASHER NSS - back-up

14

O-RING NSS

15

O-RING NSS

16

6598343

SEAL KIT Ref. 8-15
