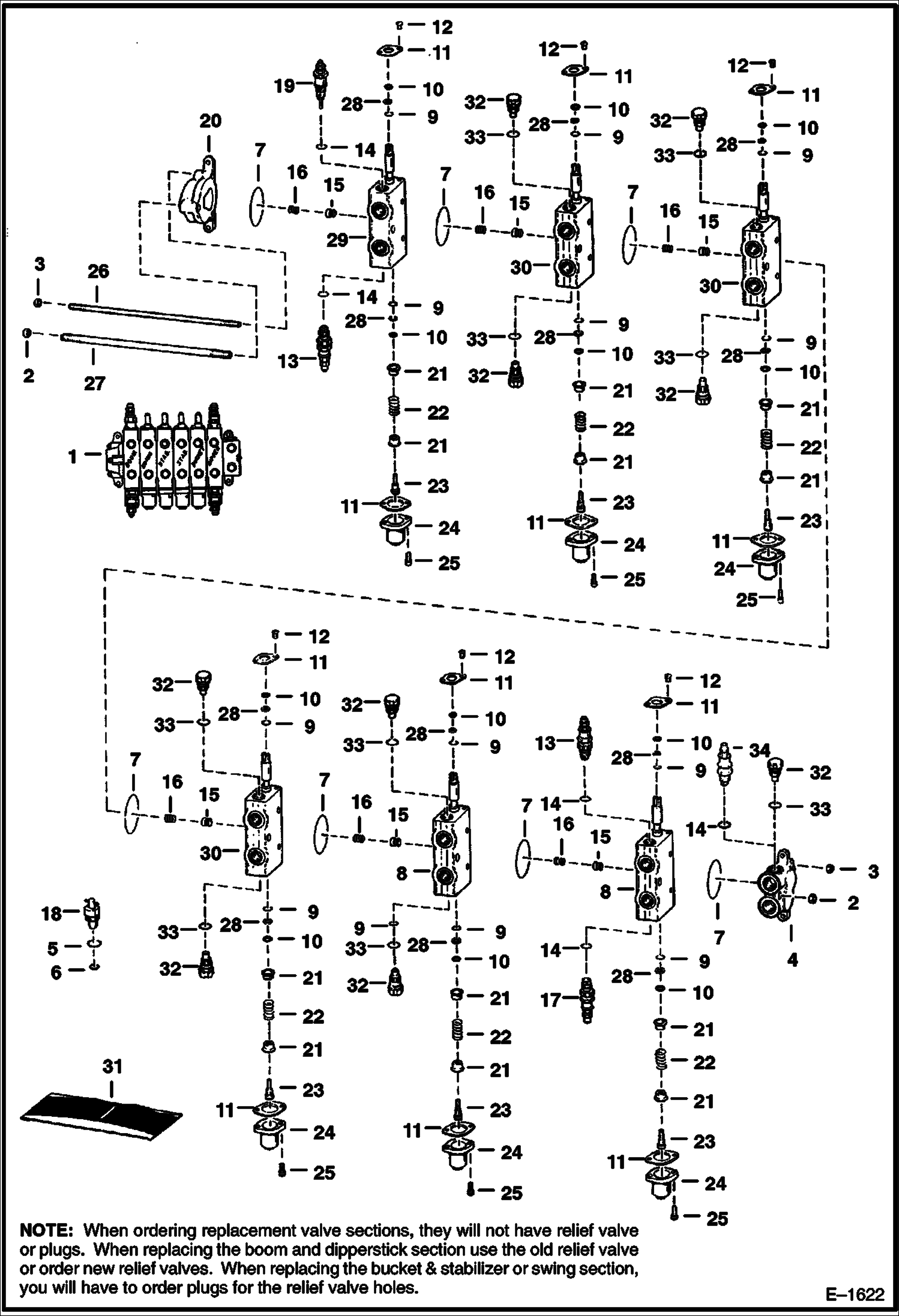

Запчасти Bobcat BACKHOE BACKHOE (Valve) (Husco) (907 195601426 & Above) 907 BACKHOE

1

6655020

VALVE Was 6651860 - A

2

62D6

NUT 5

3

61D5

NUT

4

6651869

SECTION inlet - W/Ref. 7 - Was 6646686 - A

5

79K10

O RING 10

6

58K110

O RING 10

7

6646691

O-RING Was 25K040208B - A

8

6646689

SECTION bucket dipper - W/O Ref. 13, & 17 - W/Ref. 7, 9-12, 15, 16, 21-25 & 28 - Was 6630959 - A

9

O-RING NSS - Was 25K030018B - A

10

WIPER NSS - Was 948021 - A

11

948016

PLATE

12

93G406

SCREW Was 89G-406 - A

13

6646679

RELIEF VALVE Was 966133 - A

14

961240

O-RING

15

6630965

POPPET

16

6630966

SPRING

17

6646701

RELIEF VALVE Was 966132 - A

18

945193

PLUG W/Ref. 5 & 6 - Was 966134 - A

19

6517503

RELIEF VALVE

20

948010

CAP end

21

948017

SEAT spring

22

948018

SPRING

23

948191

CAPSCREW

24

948192

CAP

25

73G412

SCREW Was 11G-412 - A

26

6514391

BOLT tie

27

6514392

TIE BOLT tie

28

WASHER NSS

29

6646688

SECTION boom - W/Ref. 7, 9-12, 15, 16, 21-25 & 28 - W/O Ref. 13 & 19

30

6646687

SECTION swing stab. - W/Ref. 7, 9-12, 15, 16, 21-25 & 28

31

6630136

SEAL KIT O-rings & back-up rings for Ref. 19

31

6646695

SEAL KIT O-rings & back-up ring for Ref. 13 & 17 - Was 6630962 - A

31

6646698

SEAL KIT spool - W/Ref. 9, 10 & 28

31

6661236

SEAL KIT complete - includes 6646695, 6646698, 6630136 & Ref. 7 - Was 6652871 - A

32

6652869

PLUG W/Ref. 33 - non reusable plug - Was 6649667 - A

33

SEAL NSS - Was 6649668 - A

34

6651867

RELIEF VALVE 2150 psi
