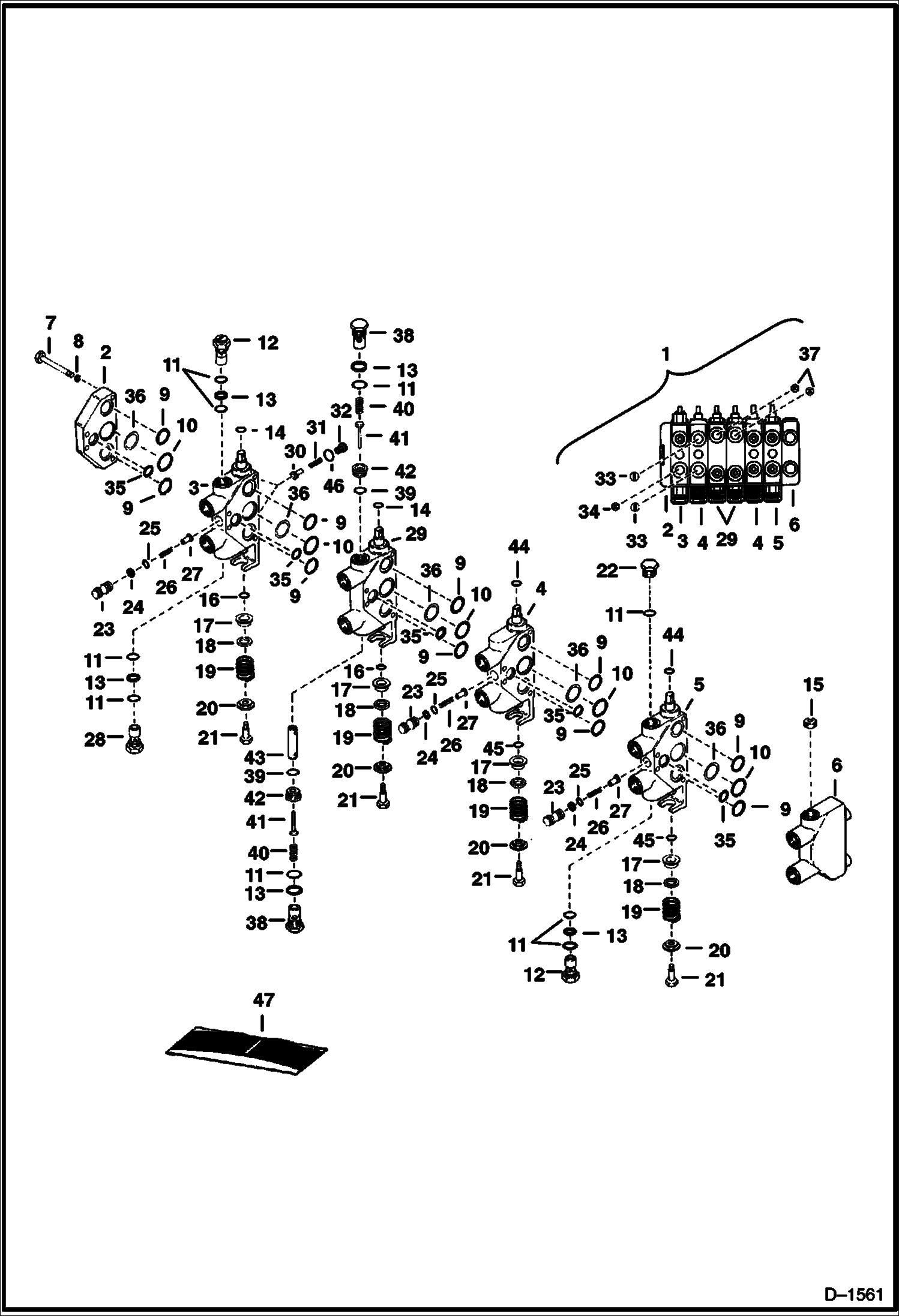

Запчасти Bobcat BACKHOE BACKHOE (Valve) (Cessna) (907 195600101 - 01425) 907 BACKHOE

1

VALVE NLA - control - less Ref. 22 - Was 6592447 - A

2

6510041

PLATE end

3

SECTION NSS - valve (boom) - Order Ref. 1 - Was 6598345 - A

4

SECTION NSS - valve (bucket & swing) - Order Ref. 1 - Was 6598201 - A

5

SECTION NSS - valve (crowd) - Was 6513626 - A

6

PLATE NLA - port - Was 6510042 - A

7

17C6174

BOLT

8

25E6

WSHR

9

O-RING NSS

10

O-RING NSS

11

O-RING NSS

12

6512603

RELIEF VALVE

13

WASHER NSS - back-up

14

O-RING NSS

15

6510063

PLUG

16

O-RING NSS

17

4149070

WASHER deep

18

4149072

WASHER wire

19

6510048

SPRING

20

4149067

WASHER, S shallow

21

947750

SCREW

22

6518043

PLUG

23

4149069

BODY LIFT lift check

24

WASHER NSS - back-up

25

O-RING NSS

26

1550482

SPRING

27

4149071

PLUNGER L lift check

28

RELIEF VALVE NLA - Was 6512602 - A

29

SECTION NLA - valve - stabilizer - Was 6599493 - A

30

994793

POPPET

31

6510047

SPRING

32

6598346

PLUG

33

6598437

ORIFICE .075'' (1,91 mm) dia.

34

ORIFICE NSS - .138'' (3,51 mm) dia. - Was 6518042 - A

35

O-RING NSS

36

WASHER NSS

37

6598752

ORIFICE .081'' (2,06mm) dia.

38

6598783

PLUG W/Ref. 11 & 13

39

O-RING NSS

40

6598779

SPRING

41

6598780

POPPET Was 6599494 - A

42

6598782

SEAT

43

6598781

PLUNGER

44

O-RING NSS

45

O-RING NSS

46

58K110

O RING 10

47

6510064

SEAL KIT between section - Ref. 9, 10, 35, 36

47

6598443

SEAL KIT boom section - Ref. 11, 13, 14, 16, 24 & 25

47

6510058

SEAL KIT bucket swing sections - Ref. 24, 25, 44 & 45

47

6510059

SEAL KIT crowd section - Ref. 11, 13, 24, 25, 44 & 45

47

6598778

SEAL KIT stabilizer section - Ref. 11, 13, 14, 16 & 39

47

6598203

SEAL KIT complete overhaul
