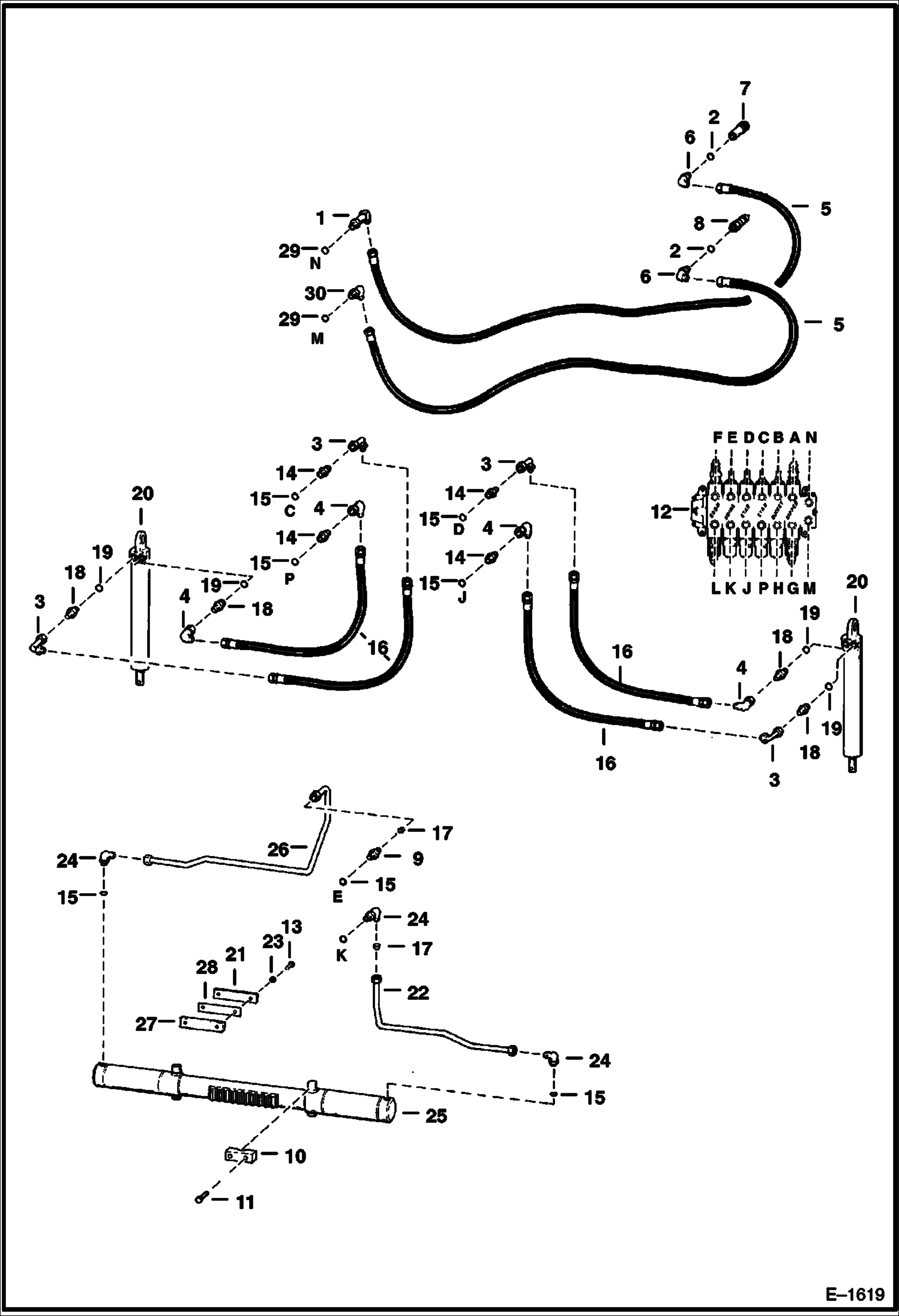

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics with Husco Valve) (907 195601426 & Above) 907 BACKHOE

1

6519195

ELBOW W/Ref. 2

2

79K10

O RING 10 Use with poppet couplers

2

79K12

O RING 10 Use with flush face couplers

3

6630814

ELBOW

4

11K5

FITTING

5

672554

HYD HOSE

6

17K7

ELBOW Use with poppet couplers

6

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

48K16

O RING 10 Use with poppet coupler

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

15K6

ADAPTER W/Ref. 15

10

6560428

RETAINER

11

17C840

BOLT

12

VALVE See Illustration BACKHOE/ E1622

13

17C516

BOLT

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6593148

HOSE

17

6592864

ORIFICE .077'' (1,96 mm) dia.

18

15K5

FITTING W/Ref. 19

19

79K6

O RING 10

20

CYLINDER See Illustration BACKHOE/ B20477 See Illustration BACKHOE/ C1203A stab.

21

6562524

SHIM

22

6592863

TUBE

23

25E15

WASHER

24

17K6

ELBOW W/Ref. 15

25

CYLINDER See Illustration BACKHOE/ B20475 swing

26

6592862

TUBE

27

BAR NLA - wear - Was 6562539 - A

28

6562540

BAR spacer

29

79K10

O RING 10

30

17K7

ELBOW
