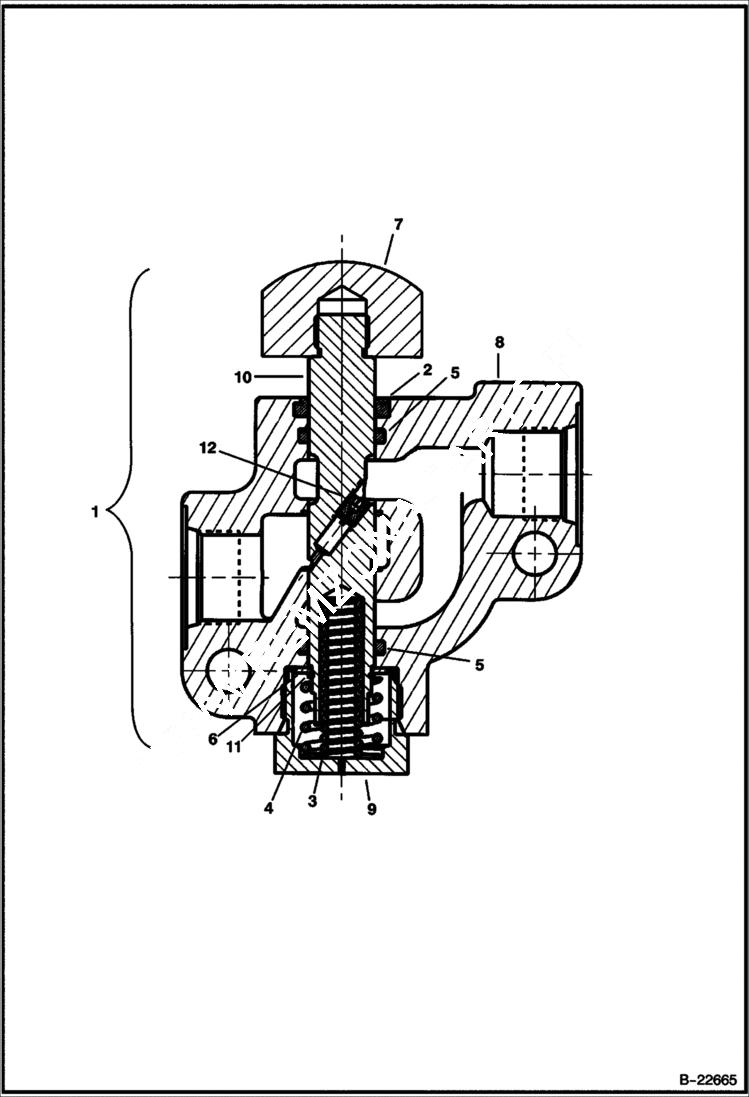

Запчасти Bobcat BACKHOE BACKHOE (Flow Control Valve) (709 2700) (709FDS 5841) 709 BACKHOE

1

6684669

VALVE, FLOW CONTRL. W/Ref. 2-12

2

6685527

RING, WIPER

3

SPRING .381'' OD NLA - .381'' O.D. - Was 6685528 - A

4

6685529

SPRING .750'' OD .750'' O.D.

5

6685530

O-RING

6

WASHER NLA - Was 6685531 - A

7

KNOB NLA - Was 6685532 - A

8

VALVE BODY NSS - Order Ref. 1

9

PLUG NLA - Was 6685533 - A

10

SPOOL NSS - Order Ref. 1

11

RETAINING RING NLA - retaining - Was 6685534 - A

12

ORIFICE .0200'' NLA - .0200'' dia. - Was 6685535 - A
