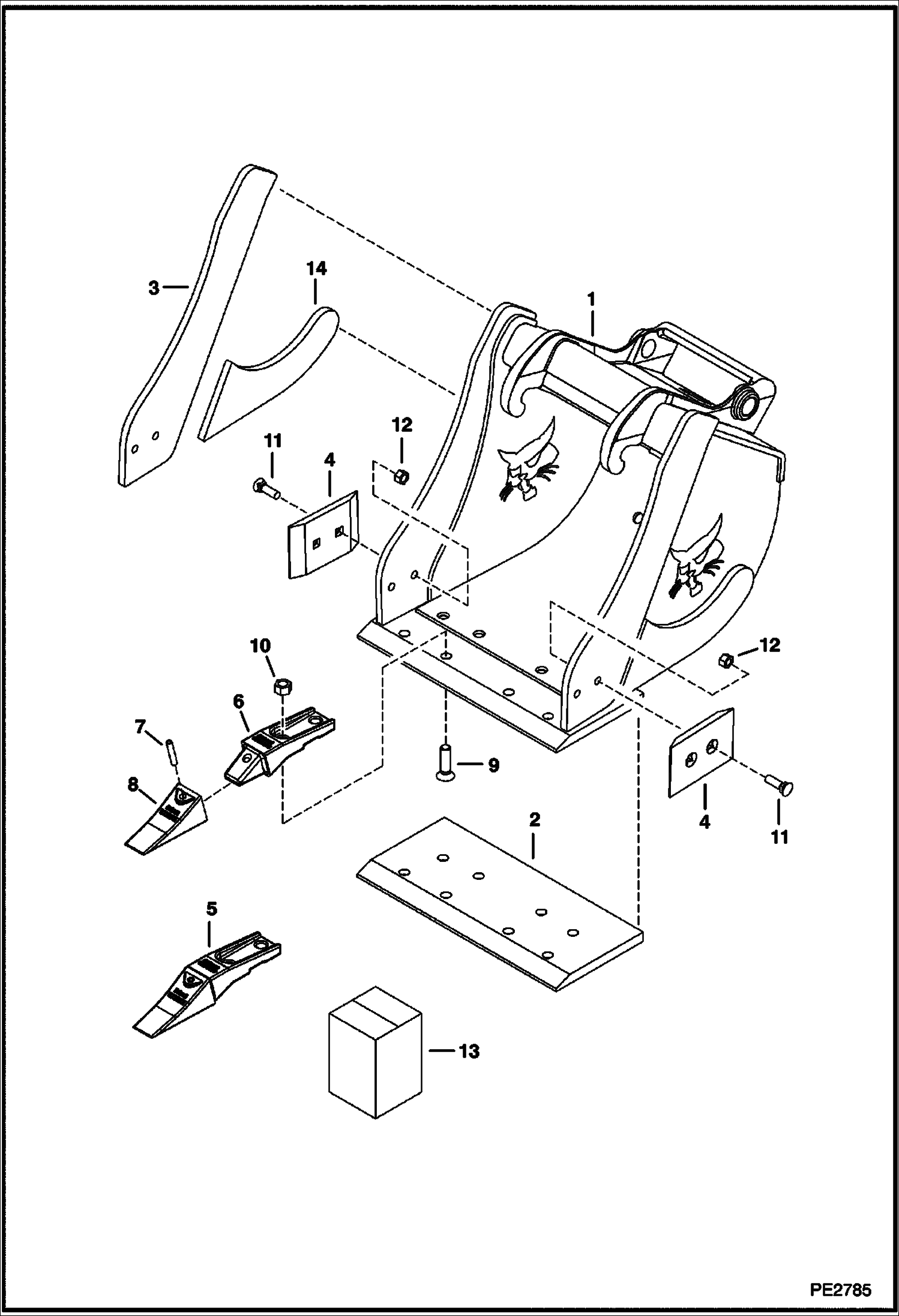

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (13 & 18 Heavy Duty) (709 2700 & A54M) (709FDS 5841 & A5F3) 709 BACKHOE

1

BUCKET SALES #7104343 - 330 mm (13'') wide H.D. - Uses 3 teeth

1

BUCKET SALES #7104336 - 457 mm (18'') wide H.D. - Uses 4 teeth

2

6805937

EDGE, CUTTING WELD-ON 13''

2

6807357

EDGE, CUTTING WELD-ON 18''

3

6805429

EDGE, CUTTING WELD-ON SIDE

4

6805464

EDGE, CUTTING BOLT-ON 4'' edge

5

TOOTH ASSY NLA - Order Ref. 13

6

SHANK NLA - Order Ref. 13

7

14J3732

PIN, STRAIGHT 5 See BTI376

7

6737326

PIN, FLEX BUCKET TOOTH See BTI376

8

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

9

6729510

BOLT (2) per tooth - Was 9G001036B - A

10

95D10

NUT (2) per tooth

11

39C828

BOLT

12

63D8

NUT

13

6737322

KIT, TOOTH BUCKET 8 8 tooth - W/Ref 5-10 - Was 6732465 - A

14

6813572

EDGE, CUTTING WELD-ON SIDE
