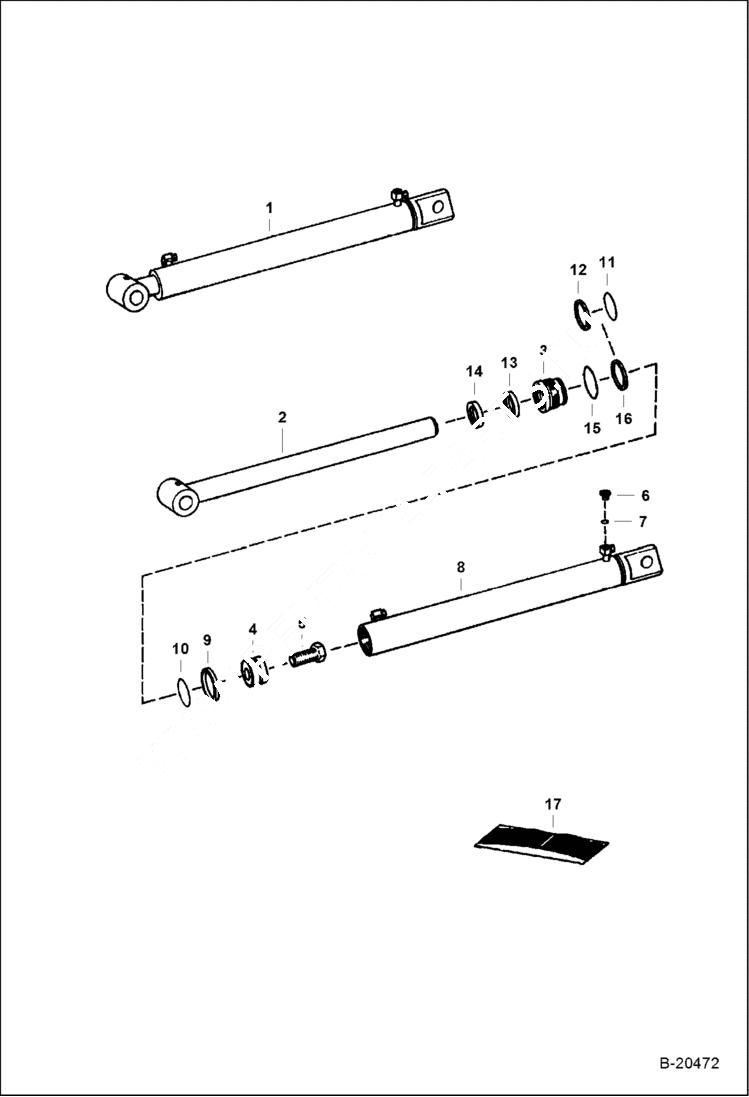

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (W/Internal Threaded Rod & Bolt) (709 2700) (709FDS 5841) 709 BACKHOE

1

CYLINDER See Illustration BACKHOE/ PE2641 - NLA - Ref. 2-15 -Was 6532557 - A

2

6807056

SHAFT Was 6532560 - A

3

6532564

HEAD

4

6532563

PISTON

5

6586508

SCREW Was 6536612 - B

6

PLUG NLA - flat boss face - Was 47K-5 - A

6

PLUG NLA - tapered boss face - allen socket head - Was 90KV5 - A

6

90K5

PLUG flat boss face - allen socket head

6

6812171

PLUG flat boss face - hex head

7

75K6

O-RING for flat boss face - Was 79K6 - B

7

95K6

O'RING for tapered boss face

8

6534687

CASE

9

6516229

PISTON SEAL Was NSS - D

10

25K30210

O-RING Was 54K30210 - B

11

25K60212

O RING 10 Was 54K60212 - B

12

80K332

WASHER back-up - Was NSS - D

13

6667328

SEAL Was 6538277 - A

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

25K40224

O RING 10 Was 54K40224 - B

16

7008355

SEAL, QUAD

17

6810717

KIT, SEAL Ref. 9-15 - Was 6803319 - A
