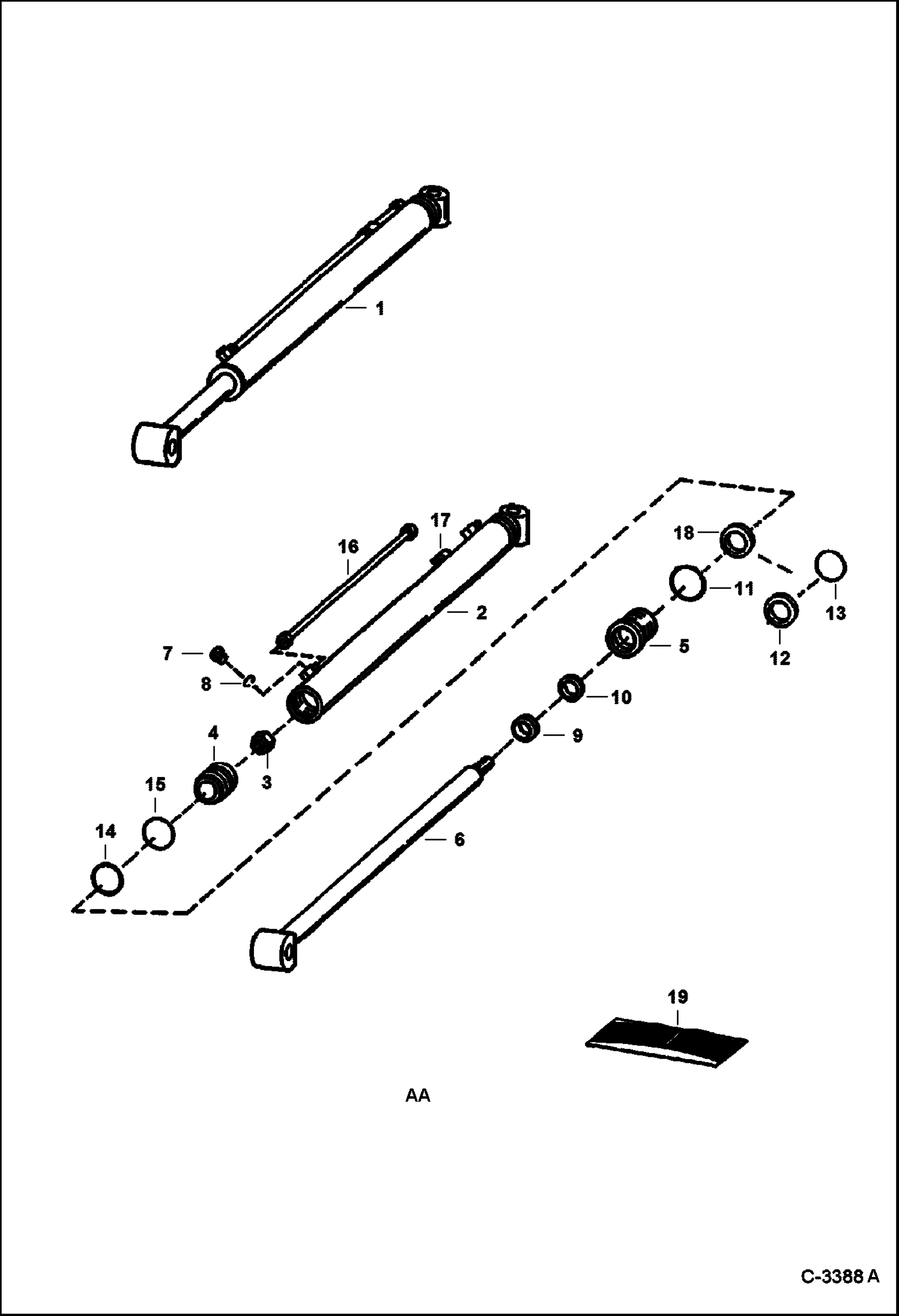

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (709 2700 & A54M) 709 BACKHOE

1

CYLINDER NLA - Ref. 2-17 - Order 6589431 cylinder & Ref. 16 - Was 6537077 - A

1

6589431

CYLINDER Ref. 2-15 & 17

2

CASE NLA - .94'' min. full thread - Order 6589432 case & Ref. 5 - Was 6534605 - A

2

6589432

CASE .83'' min. full thread

3

92D12

NUT Was 86D000012B - B

4

6661694

PISTON W/Ref. 14 & 15 - W/non-replaceable wear sleeves - Was 6535289 - A

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6532707

ROD

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

6666542

SEAL, WIPER ROD Was 1657083B - A

10

6667323

SEAL Was 6704232 - A

11

82K136

O-RING Was 58K136 - B

12

73K224

RING Was NSS - D

13

54K40124

O-RING Was 25K040124B - A

14

54K30118

O-RING Was 25K030118B - A

15

6516231

SEAL Was NSS - D

16

6537076

TUBE

17

6690910

CLAMP

18

7008781

SEAL, QUAD

19

6803482

SEAL KIT Ref. 3, 9-11, & 14-16 - Was 6589436 - A
