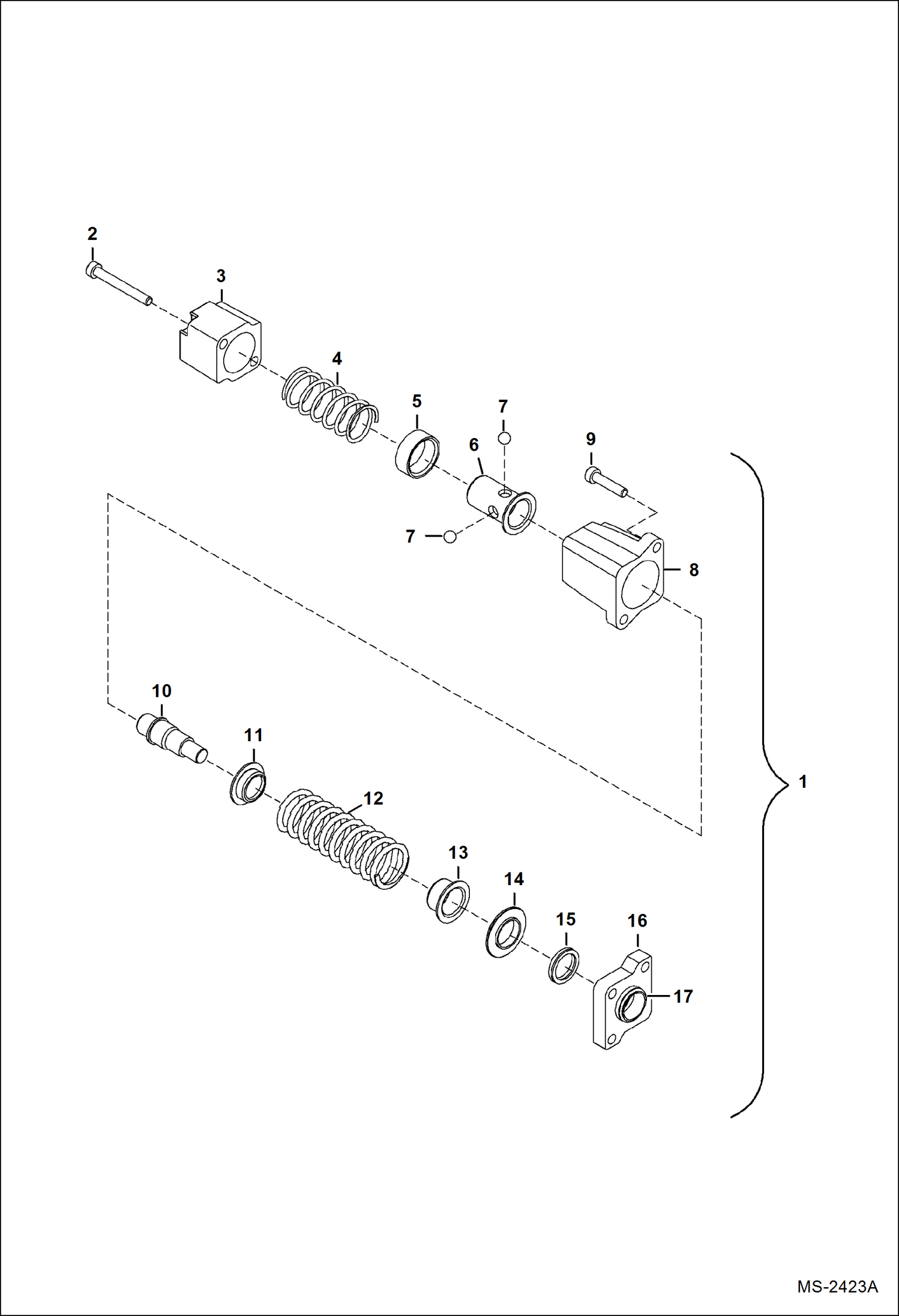

Запчасти Bobcat BACKHOE BACKHOE (Control Valve - Controls) (709 A54M) (709FDS A5F3) 709 BACKHOE

1

6693269

CONTROL W/Ref. 2-17

2

6693319

BOLT

3

CAP NSS - Order Ref. 1 - Was 6693320 - A

4

SPRING NSS - Order Ref. 1 - Was 6693321 - A

5

6693322

BUSHING

6

HOLDER NSS - Order Ref. 1 - Was 6693323 - A

7

BALL NSS - Order Ref. 1 - Was 6693324 - A

8

HOUSING NSS - Order Ref. 1 - Was 6693325 - A

9

6693326

BOLT

10

6693327

SHAFT

11

HOLDER NSS - Order Ref. 1 - Was 6693328 - A

12

SPRING NSS - Order Ref. 1 - Was 6693314 - A

13

HOLDER NSS - Order Ref. 1 - Was 6693329 - A

14

BUSHING NSS - Order Ref. 1 - Was 6693330 - A

15

6693283

SEAL KIT

16

FLANGE NSS - Order Ref. 1 - Was 6693331 - A

17

6693297

O-RING
