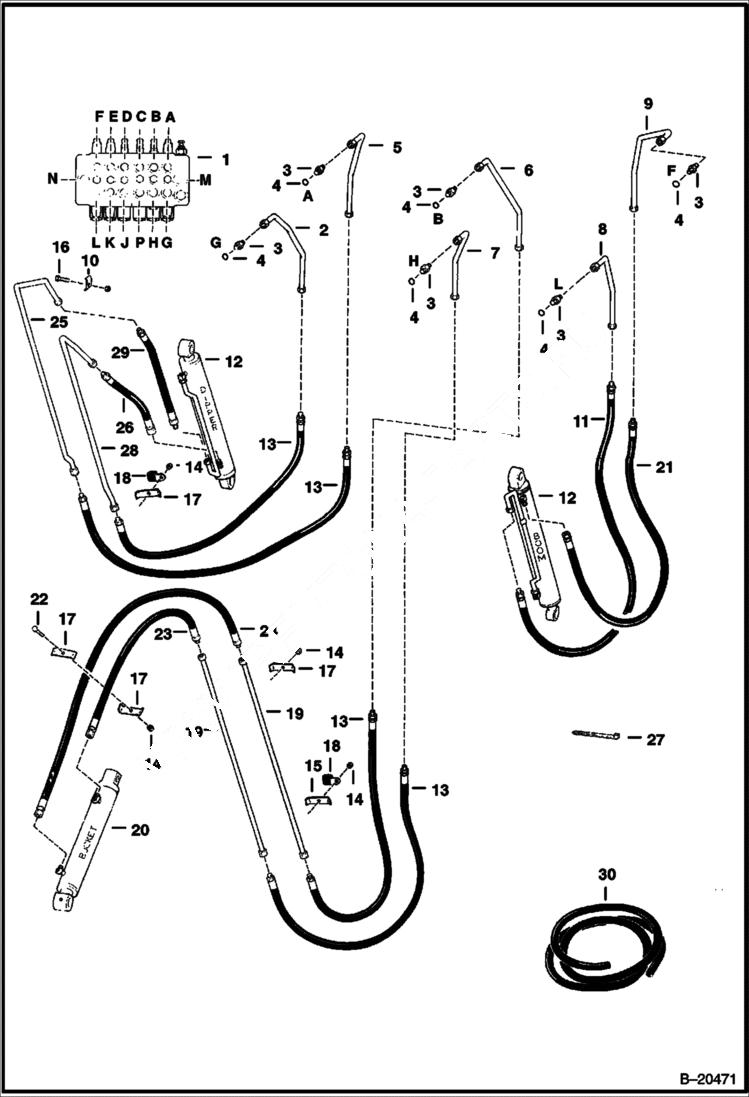

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (709 2700) (709FDS 5841) 709 BACKHOE

1

VALVE See Illustration BACKHOE/ D2111

2

6532963

TUBE

3

15K6

ADAPTER W/Ref. 4 - flat boss face

3

ADAPTER NLA - W/Ref. 4 - tapered boss face - Was 15KN00006B - A

3

15KB0808

FITTING, HYD CONNECTOR W/Ref. 4 - flat boss face

3

97K8

O-RING for flared end

4

79K8

O RING 10 for flat boss face

4

99K8

O-RING for tapered boss face

5

6532962

TUBE

6

6532961

TUBE

7

6532960

TUBE

8

6532956

TUBE

9

6532958

TUBE

10

6562266

CLAMP

11

6533039

HOSE

12

CYLINDER See Illustration BACKHOE/ NA2858 - boom & dipper

13

6536610

HOSE

14

81D6

NUT

15

6537761

CLAMP

16

84G3724

BOLT

17

6502426

CLAMP

18

30H38

CLIP

19

6532975

TUBE

20

CYLINDER See Illustration BACKHOE/ PE2641 See Illustration BACKHOE/ B20472 - bucket

21

6532977

HOSE

22

84G3728

BOLT Was 17C624 - B

23

6538438

HOSE Was 6532978 - A

24

6538437

HOSE Was 6536609 - A

25

6532973

TUBE

26

6713390

HOSE Was 6534348 - A

27

6610510

TIE Was 1715312B - A

28

6532974

TUBE

29

6534349

HOSE

30

6649389

HOSE COVER 1'' (25,4 mm) bulk - sold per foot
