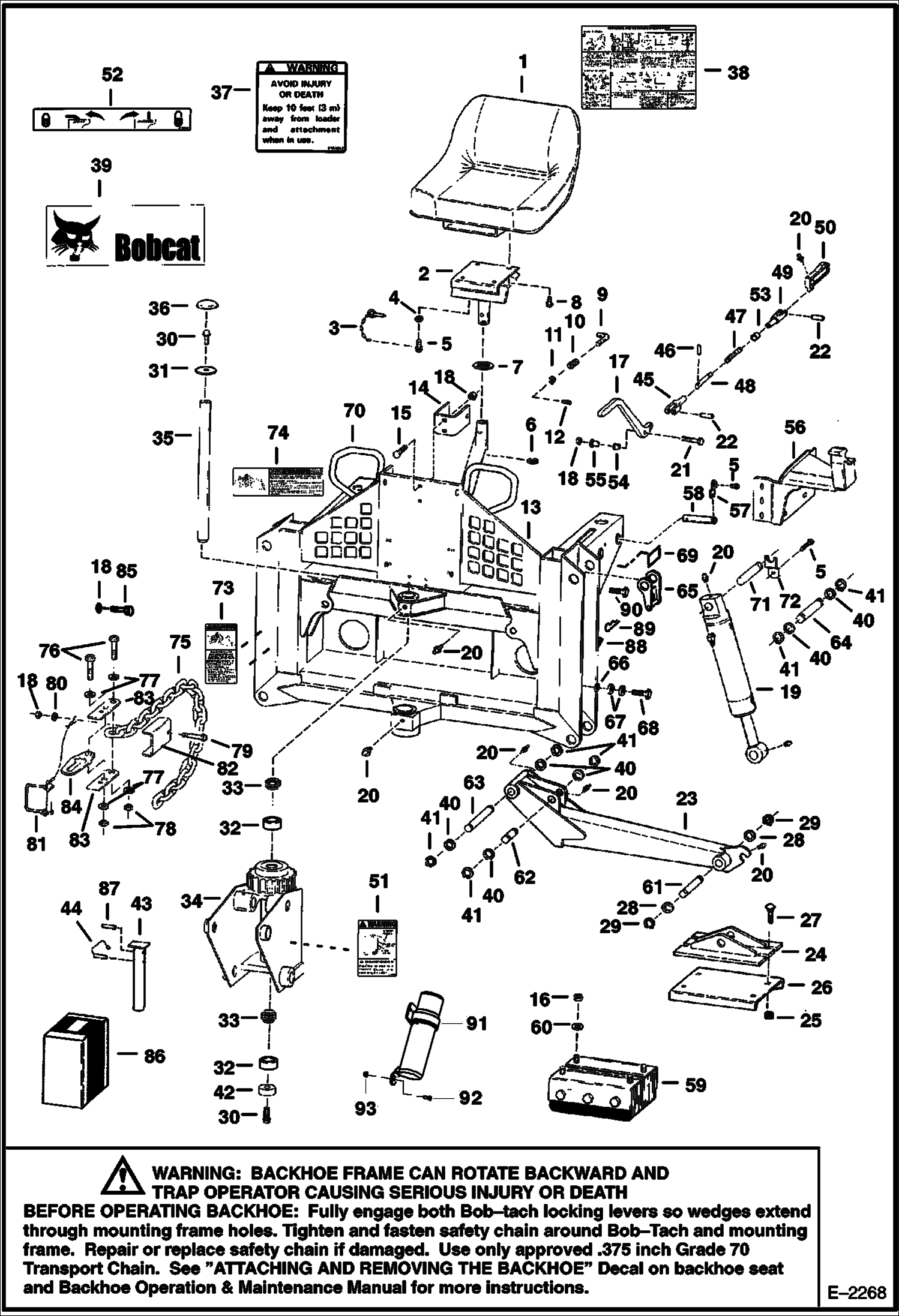

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (709FDS 5841 & A5F3) 709 BACKHOE

1

SEAT NLA - W/adj. track - Order 6643253 seat, Also Order Ref. 38 (6714915 decal) - Was 6653421 - A

1

6643253

SEAT, OPERATOR VINYL W/O adj. track - Also Order Ref. 38 (6714915 decal)

1

TRACK NLA - W/adj. - Was 6660436 - A

1

TRACK NLA - W/O adj. - Was 6660437 - A

2

6587384

HINGE, MOUNT SWIVEL

3

6511880

PIN

4

7D6

NUT

5

84G3712

BOLT 5

6

22J24

RING SNAP Was 6538285 - B

7

6558680

WASHER

8

17C512

BOLT 5

9

6592836

PIN

10

6610082

SPRING

11

25E15

WASHER

12

1F308

PIN, COTTER

13

6595844

MAIN FRAME

13

7131858

MAIN FRAME

14

6561537

BRACKET

15

37C612

BOLT carriage

16

61D8

NUT 5

17

6805822

LEVER Was 6533163 - A

18

85D6

NUT, 5

18

89D6

NUT

19

CYLINDER See Illustration BACKHOE/ C3381 - stabilizer

20

10H25

FITTING, GREASE 5

21

17C672

BOLT Was 17C000664B - B

22

14J5032

PIN, STRAIGHT

23

6587644

STABILIZER

24

6587676

PAD

25

85D8

NUT, 5 Was 55D8 - B

26

6531990

CLEAT

27

37C820

BOLT Was 6529377 - B

28

6573567

WASHER

29

22J16

SNAP RING Was 6538286 - A

30

49C1228

BOLT Was 31C001228B - B

31

6534555

WASHER

32

6513682

RACE

33

6519337

BEARING

34

6712763

FRAME swing - Was 6532793 - A

35

6532635

SHAFT

36

6598371

CAP

37

7166144

DECAL, WARNING warning - Was 6583862 - B

38

6714915

DECAL mounting instructions - Was 6536325 - A

39

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727324 - B

40

6532519

WASHER

41

22J20

SNAP RING Was 6538287 - B

42

6532631

WASHER

43

6593895

PIN boom lock - Was 6531439 - A

44

6510020

LOCK PIN

45

6533159

CLEVIS

46

14J2520

PIN

47

6578253

SPRING, COMPRESSION

48

6533158

ROD

49

6704248

PIVOT, WEDGE

50

6586377

STOP

51

6535259

DECAL, WARNING

52

6535896

DECAL R.H.

52

6535897

DECAL L.H.

53

6533160

BUSHING

54

6704453

SPRING

55

6586315

PIVOT

56

MOUNT See Illustration BACKHOE/ B20474

57

6586307

RETAINER

58

6586308

PIN Was 6588846 - D

59

6660164

PAD street

60

25E22

WASHER

61

6587700

PIN

62

6587702

PIN

63

6588848

PIN

64

6588991

PIN Use W/Ref. 40 & 41

65

6596214

LOCK

66

6587681

SHIM

67

6584652

BUMPER

68

84G3728

BOLT

69

6596513

DECAL

70

6805233

TUBE weld on - Was 6560876 - A

71

6713882

PIN Use W/Ref. 5 & 72

72

6713881

RETAINER

73

6714920

DECAL, WARNING

74

6714911

DECAL, WARNING

75

6714935

SAFETY CHAIN 1245 mm (55'') long - chain only - Use only approved .375 inch grade 70 transport chain - Was 6714867 - A

76

38C820

SCREW

77

27E8

WASHER 10

78

89D6

NUT Was 53D6 - B

79

17C636

BOLT

80

27E6

WASHER 5

81

6661838

HITCH PIN

82

6714839

CHAIN GUIDE

83

6714869

LATCH

84

6714868

BRACKET

85

17C612

BOLT 5

86

6713632AR

KIT decal

86

6713632BR

KIT decal

86

6713632JP

KIT decal

86

6713633AR

KIT translation

86

6713633BR

KIT translation

87

14J3740

PIN

88

7118021

STEP Was 6805450 - B

89

1306637

CLIP

90

84G3110

SCREW

91

7108147

CONTAINER, MANUAL W/ 6686517 tube

92

17C514

BOLT

93

83D5

NUT 5
