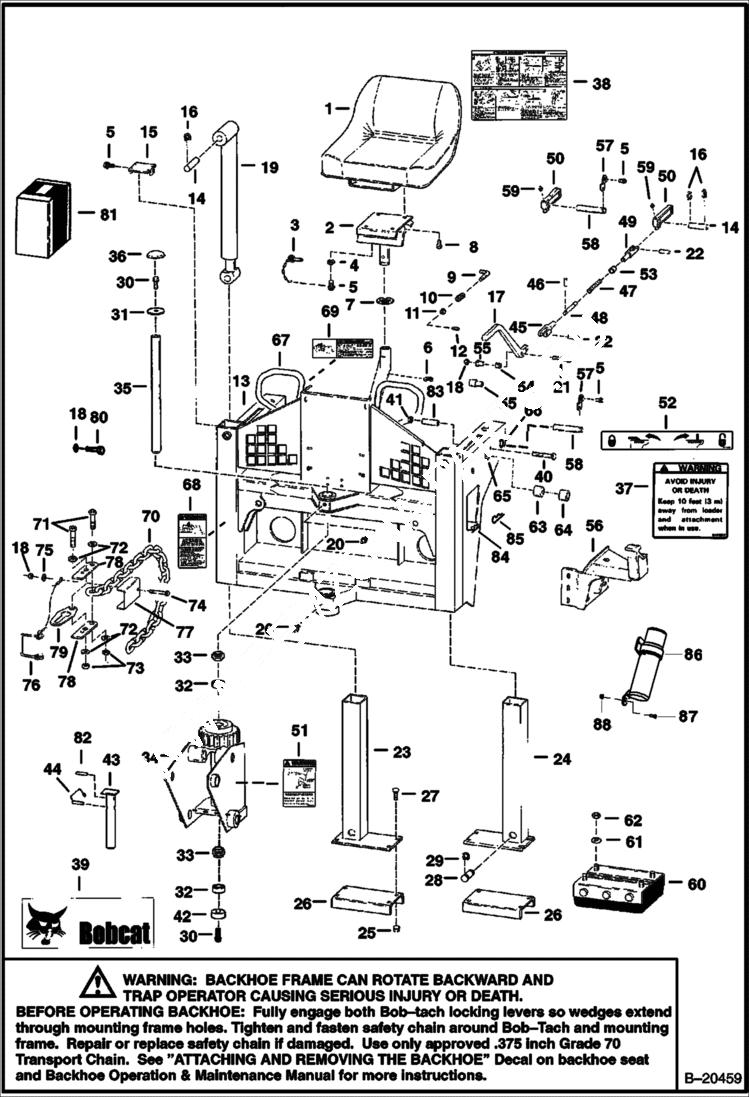

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (709 2700 & A54M) 709 BACKHOE

1

SEAT NLA - W/adj. track - Order 6643253 seat, Also Order Ref. 38 (6714915 decal) - Was 6653421 - A

1

6643253

SEAT, OPERATOR VINYL W/O adj. track - 7.25 in. x 7.00 in. (184 x 178 mm) hole spacing - Also Order Ref. 38 (6714915 decal)

1

TRACK NLA - W/adj. - Was 6660436 - A

1

TRACK NLA - W/O adj. - Was 6660437 - A

2

6587384

HINGE, MOUNT SWIVEL Was 6534341 - A

3

6511880

PIN

4

7D6

NUT

5

84G3712

BOLT 5

6

22J24

RING SNAP Was 6538285 - B

7

6558680

WASHER

8

17C512

BOLT 5 Was 17C000516B - B

9

6592836

PIN

10

6610082

SPRING

11

25E15

WASHER

12

1F308

PIN, COTTER

13

6538675

MAIN FRAME Was 6532834 - A

13

7130749

MAIN FRAME

14

6533178

PIN 1.00'' (25.4mm) dia. x 4.00'' (101.2 mm) long

15

6533029

COVER

16

23J16

SNAP RING Was 662770B - B

17

6805822

LEVER Was 6533163 - A

18

89D6

NUT

19

CYLINDER See Illustration BACKHOE/ C3388A - stabilizer

20

10H25

FITTING, GREASE 5

21

17C660

BOLT

21

17C680

BOLT

22

14J5032

PIN, STRAIGHT

23

6532680

STABILIZER R.H.

24

6533011

STABILIZER L.H.

25

85D8

NUT, 5 Was 55D8 - B

26

6531990

CLEAT

27

37C820

BOLT Was 6560578 - A

28

6560669

PIN

29

22J16

SNAP RING Was 6538286 - B

30

49C1228

BOLT Was 31C001228B - B

31

6534555

WASHER

32

6513682

RACE

33

6519337

BEARING

34

6712763

FRAME swing - Was 6532793 - A

35

6532635

SHAFT

36

6598371

CAP

37

7166144

DECAL, WARNING warning - Was 6583862 - B

38

6714915

DECAL mounting instructions - Was 6536325 - A

39

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727324 - B

40

17C868

BOLT

41

85D8

NUT, 5

42

6532631

WASHER

43

6593895

PIN boom lock - Was 6531439 - A

44

6510020

LOCK PIN

45

6533159

CLEVIS

46

14J2520

PIN

47

6578253

SPRING, COMPRESSION

48

6533158

ROD

49

6704248

PIVOT, WEDGE Was 6576454 - A

50

6586377

STOP Was 6533115 - A

51

6535259

DECAL, WARNING

52

6535896

DECAL R.H.

52

6535897

DECAL L.H.

53

6533160

BUSHING

54

6704453

SPRING Was 6578252 - A

55

6575636

BUSHING

55

6586315

PIVOT

56

MOUNT See Illustration BACKHOE/ B20474

57

6586307

RETAINER

58

6586308

PIN 1.00'' (25,4 mm) dia. x 4.60'' (101,2 mm) long

59

10H25

FITTING, GREASE 5

60

6660164

PAD street

61

25E22

WASHER

62

61D8

NUT 5

63

6586316

BUSHING

64

6586323

BUSHING

65

6533176

BUSHING

66

6533177

BUSHING

67

6805233

TUBE weld on - Was 6560876 - A

68

6714920

DECAL, WARNING

69

6714911

DECAL, WARNING

70

6714935

SAFETY CHAIN 55'' (1245 mm) long - chain only - use only approved .375 inch grade 70 transport chain - Was 6714867 - A

71

38C820

SCREW

72

27E8

WASHER 10

73

89D6

NUT Was 53D6 - B

74

17C636

BOLT

75

27E6

WASHER 5

76

6661838

HITCH PIN

77

6714839

CHAIN GUIDE

78

6714869

LATCH

79

6714868

BRACKET

80

17C612

BOLT 5

81

6713630AR

KIT decal - SEE NOTE

81

6713630BR

KIT decal - SEE NOTE

81

6713630JP

KIT decal - SEE NOTE

81

6713631AR

KIT translation - SEE NOTE

81

6713631BR

KIT translation - SEE NOTE

82

14J3740

PIN

83

6534351

BUSHING

84

7118021

STEP Was 6805450 - B

85

1306637

CLIP

86

7108147

CONTAINER, MANUAL W/ 6686517 tube

87

17C514

BOLT

88

83D5

NUT 5
