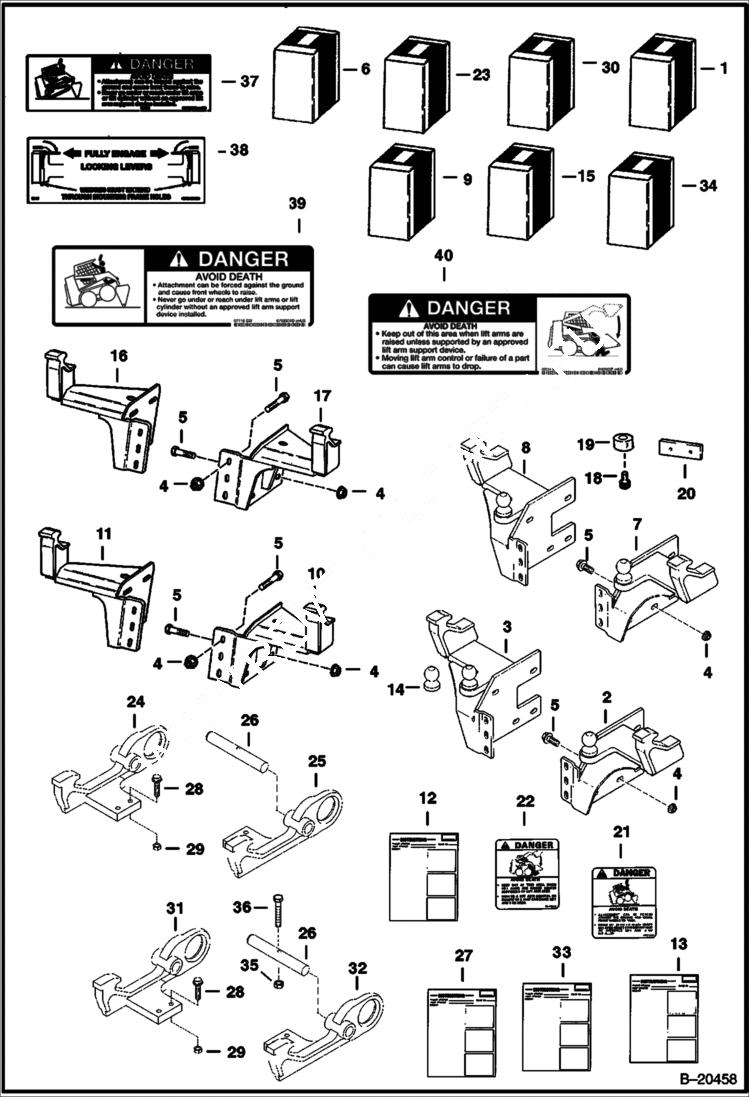

Запчасти Bobcat BACKHOE BACKHOE (Mounting Kits) (607 7750 & A5CW) 607 BACKHOE

1

KIT NLA - Order Ref. 2-4 (83D10 nut), 5,12, 20-22, 39 & 40 - 640 Series - Was SALES #6586939 - D

2

MOUNT NLA - L.H. (640 Series) Order 6586940 & 6586942 - Was 6538705 - A

2

6586940

MOUNT L.H. - 640 Series

3

MOUNT NLA - R.H. (640 Series) Order 6586942 & 6586940 - Was 6538706 - A

3

6586942

MOUNT R.H. - 640 Series

4

53D10

NUT Was 83D000010B - B

4

83D10

NUT 5

5

31C1028

SCREW

6

6586933

KIT 740 Series - Ref. 4 (83D10 nut), 5, 7, 8, 12, 20-22, 39 & 40 - Was SALES - D

7

MOUNT NLA - L.H. (740 Series) Order 6586934 & 6586937 - Was 6538661 - A

7

6586934

MOUNT L.H. - 740 Series

8

MOUNT NLA - R.H. (740 Series) Order 6586934 & 6586937 - Was 6538673 - A

8

6586937

MOUNT R.H. - 740 Series

9

KIT SALES #6538707 - 753 & 753L - Ref. 4 (53D10 nut), 5, 10, 11, 13, 18-20, 34 (6718718AR kit & 6718718BR kit), & 37-40

10

6538554

MOUNT L.H. - 751, 753, 753L, 763

11

6538553

MOUNT R.H. - 751, 753, 753L, 763

12

6720596

INSTRUCTIONS for Ref. 1 & 6

13

6720391

INSTRUCTIONS 753, 7753 & 773 - for Ref. 9 & 15

14

6539094

BALL

15

KIT SALES #6539674 - 7753 & 773 - Ref. 4 (53D10 nut), 5, 13, 16, 17, 21, 22, 34 (6718718AR kit & 6718718BR kit), 39 & 40

16

6539675

MOUNT R.H. - 7753 & 773

17

6539678

MOUNT L.H. - 7753 & 773

18

73G620

SCREW 753

19

6586470

STOP boom - 753

20

6587074

SPACER

21

6579509

DECAL

22

6579639

DECAL

23

KIT SALES #6718155 - 773G - Ref. 24-29

24

6717293

MOUNT RH

25

6718122

MOUNT LH

26

6717707

PIN

27

6900827

INSTRUCTIONS for Ref. 23

28

31C836

BOLT

29

63D8

NUT Was 61D000008B - A

30

KIT SALES #7101325 - S150, S160 & T180 - W/Ref. 26, 28, 29, 31-33 & 35

31

7101399

MOUNT R.H.

32

7101400

MOUNT L.H.

33

6902798

INSTRUCTIONS for Ref. 30

34

6718718AR

KIT trans. - For Ref. 9 & 15

34

6718718BR

KIT trans. - For Ref. 9 & 15

34

6718717AR

KIT decal - For Ref. 9 & 15

34

6718717BR

KIT decal - For Ref. 9 & 15

34

6718717JP

KIT decal - For Ref. 9 & 15

35

85D6

NUT, 5

36

17C640

BOLT 5

37

6718392

DECAL, DANGER

38

6718393

DECAL, DANGER

39

6702301

DECAL, DANGER

40

6702302

DECAL, DANGER Was 6579639 - B
