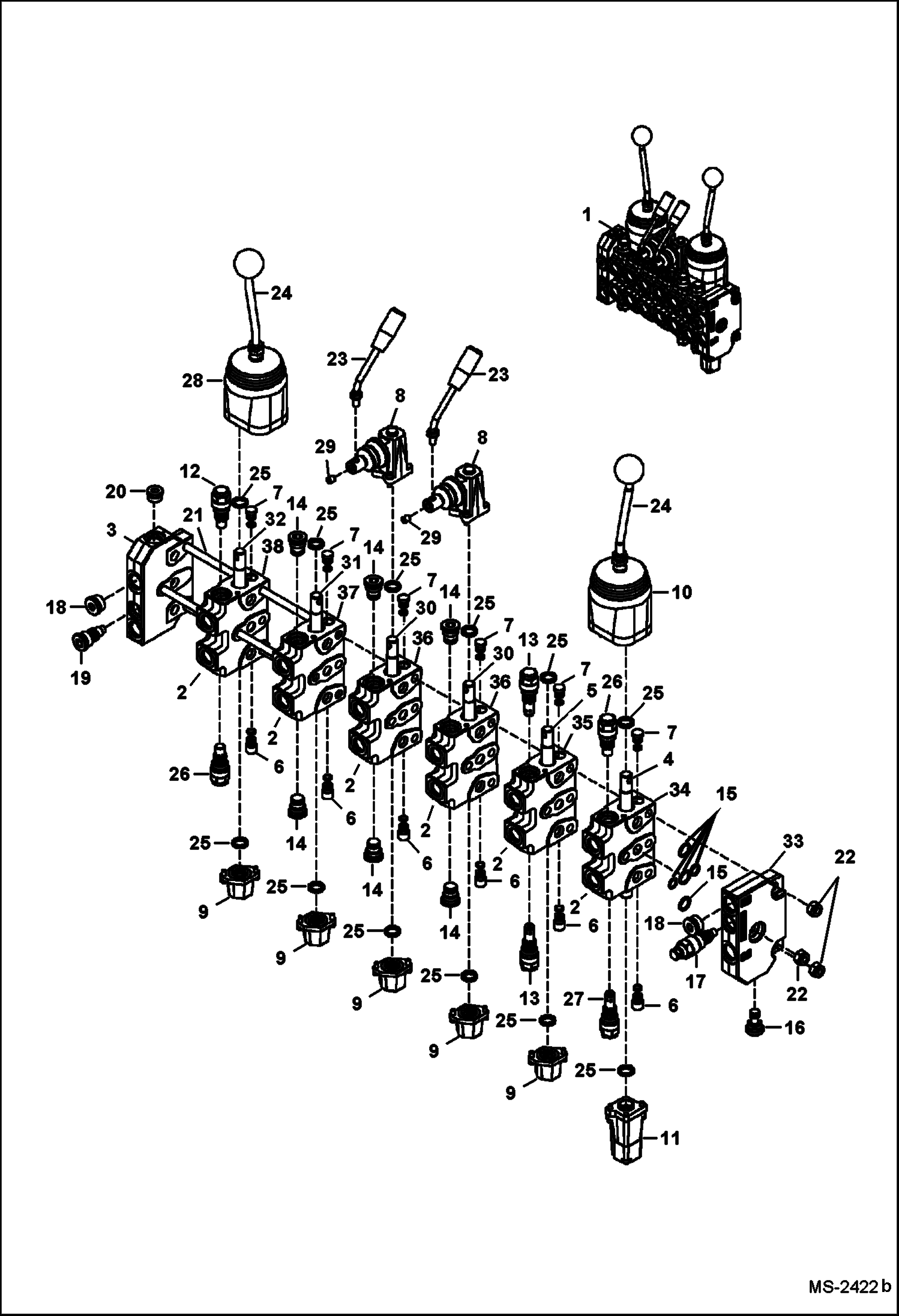

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (W/8 Sections) (607 A5CW) 607 BACKHOE

1

VALVE ASSY See BTI414 - NLA - Ref. 2-33 - Nimco CV556 11635-2S - W/round outer joystick lever knobs - Was 6690713 - C

2

VALVE SECTION NLA - blank section - order section assy Ref. 34, 35, 36, 37 or 38 - Was 6693260

3

7009638

SECTION, VALVE outlet - W/Ref. 18-20 - Was 6693261 - A

4

SPOOL NSS - Order Ref. 34 - Was 6693262 - A

5

SPOOL NSS - Order Ref. 35 - Was 6693263 - A

6

6693264

CHECK VALVE

6

6693291

SEAL KIT for check valve

7

6693265

CHECK VALVE

7

6693291

SEAL KIT for check valve

8

6693266

LEVER ASSY

9

CONTROL See Illustration BACKHOE/ MS2424B

10

JOYSTICK See Illustration BACKHOE/ MS2425B - LH

11

CONTROL See Illustration BACKHOE/ MS2423B

12

6693270

RELIEF VALVE

12

6693292

SEAL KIT

13

6693271

CHECK VALVE anti-cav

13

6693292

SEAL KIT

14

6693272

PLUG port relief cavity

14

6693292

SEAL KIT

15

SEAL KIT See BTI414 - between sections

16

6693274

PLUG unload cavity

16

6693295

SEAL KIT

17

6693275

RELIEF VALVE main relief

17

6693294

SEAL KIT

18

6693276

PLUG

19

6693277

PLUG main relief cavity

19

6693296

SEAL KIT

20

6693278

PLUG

21

6693279

TIE ROD

22

6693280

NUT

23

6693281

LEVER

24

6693282

LEVER

25

6693283

SEAL KIT for spools

26

6693284

RELIEF VALVE

26

6693292

SEAL KIT

27

6693285

CHECK VALVE anti-cav

27

6693292

SEAL KIT

28

JOYSTICK See Illustration BACKHOE/ MS2425B - RH

29

6693287

SET SCREW

30

SPOOL NSS - Order Ref. 36 - Was 6693288 - A

31

SPOOL NSS - Order Ref. 37 - Was 6693289 - A

32

SPOOL NSS - Order Ref. 38 - Was 6693290 - A

33

7009631

SECTION, VALVE inlet - W/Ref. 16-18 - Was 6693259 - A

34

7009633

SECTION, VALVE

35

7009634

SECTION, VALVE

36

7009635

SECTION, VALVE

37

7009636

SECTION, VALVE

38

7009637

SECTION, VALVE
