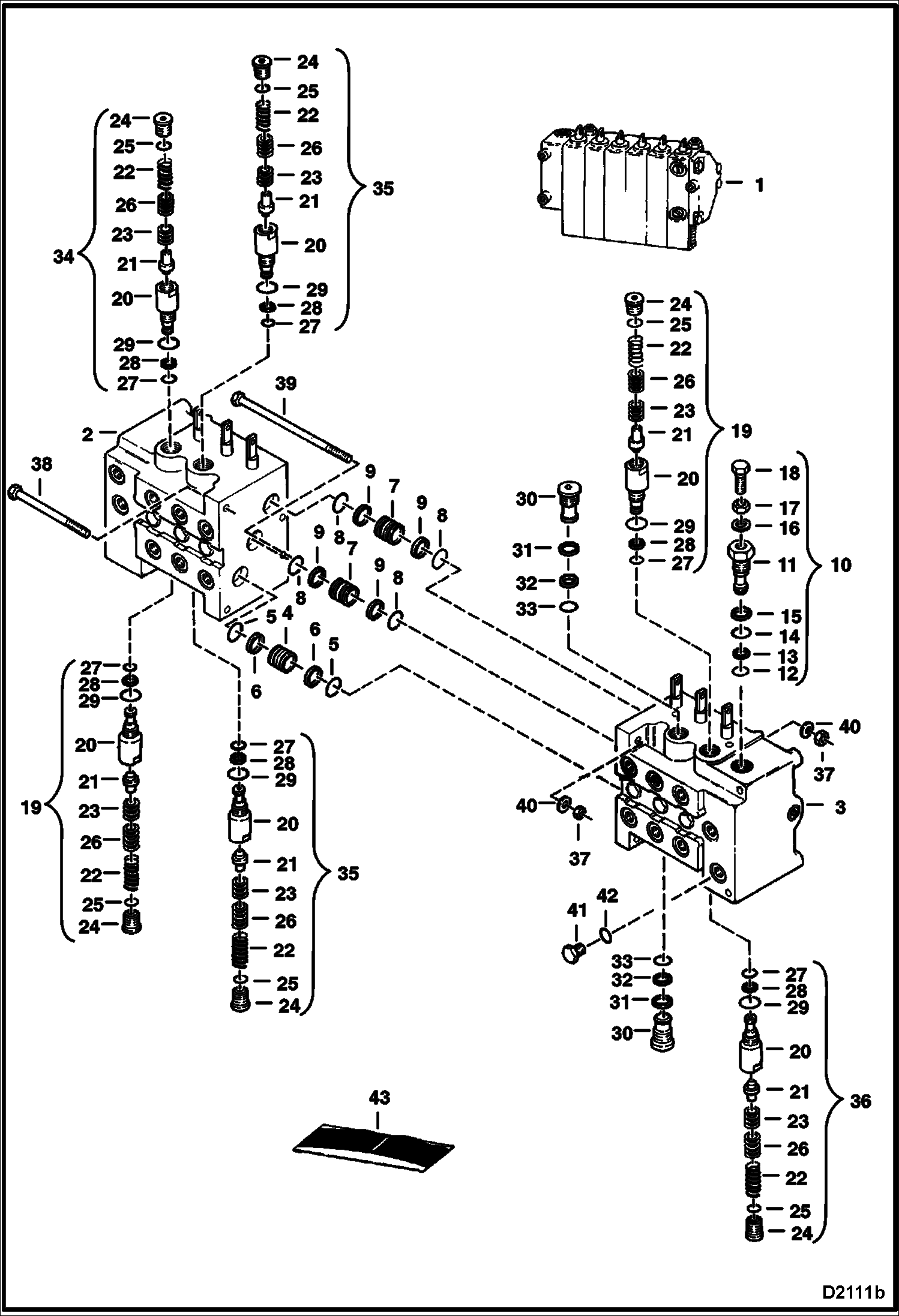

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (607 7750) 607 BACKHOE

1

VALVE NLA - assy. - Danfoss 1681-6-BB - Order 6685439 valve & 6805603 decal for 607 & 709, or 6805604 decal for 709FDS - Was 6651514 - A

1

VALVE NLA - assy. - Danfoss 156B2348 - Order 6685439 - Was 6674307 - A

1

VALVE NLA - assy. - Danfoss 156B2348 C - Order 6685439 - Was 6683809 - A

1

6685439

VALVE, CONTROL assy. - Danfoss 156B2435

2

VALVE SECTION See Illustration BACKHOE/ C3239A

3

VALVE SECTION See Illustration BACKHOE/ C3238A

4

6656294

TUBE W/Ref. 5 & 6

5

6656441

O-RING

6

6656440

BACK-UP RING

7

6656293

TUBE W/Ref. 8 & 9

8

6656443

O-RING

9

6656442

BACK-UP RING

10

6658416

RELIEF VALVE 2300-2400 PSI

11

HOUSING NSS

12

O-RING NSS

13

BACK-UP RING NSS

14

O-RING NSS

15

BACK-UP RING NSS

16

RING NSS

17

NUT NSS

18

BOLT NSS

19

6658445

RELIEF VALVE 3000-3100 PSI

20

HOUSING NSS

21

POPPET NSS

22

SPRING NSS

23

SHIM NSS - .021'' (0,53 mm)

24

6656446

PLUG W/Ref. 28

25

6656432

O-RING

26

SHIM NSS - .0035'' (0,09 mm)

27

O-RING NSS

28

BACK-UP RING NSS

29

O-RING NSS

30

6656439

RELIEF PLUG assy. - W/Ref. 31-33

31

6656437

O-RING

32

6656436

BACK-UP RING

33

6656438

O-RING

34

6658443

RELIEF VALVE 2300-2400 PSI

35

6658444

RELIEF VALVE 2200-2300 PSI

36

6658440

RELIEF VALVE 2800-2900 PSI

37

6656288

NUT

38

6658441

BOLT

39

6658442

BOLT

40

6656286

WASHER

41

24K7

PLUG W/Ref. 42 - flat boss face

41

24K7

PLUG W/Ref. 42 - tapered boss face - Was 24KN00007B - A

41

97K10

O-RING 10 for flared end

42

79K10

O RING 10 for flat boss face

42

99K10

O'RING for tapered boss face

43

6656281

SEAL KIT Ref. 12-18

43

6656283

SEAL KIT Ref. 25-29

43

6658439

SEAL KIT See Illustration BACKHOE/ C3238A See Illustration BACKHOE/ C3239A
