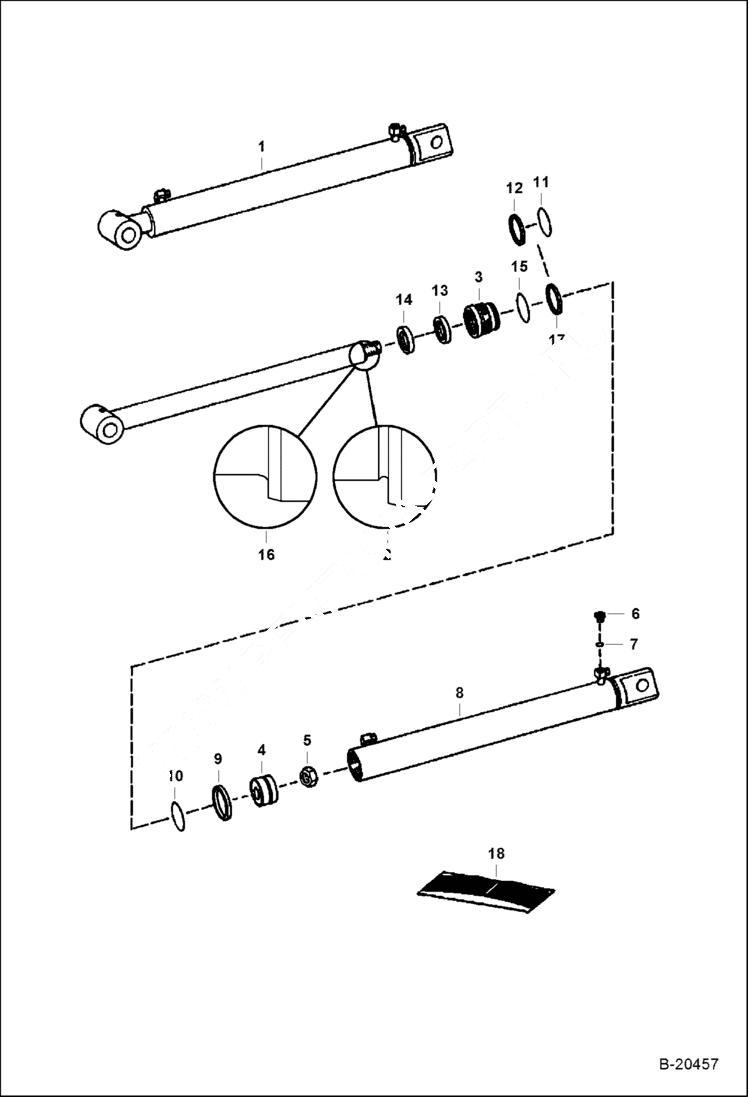

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (W/External Threaded Rod & Nut) (607 7750 & A5CW) 607 BACKHOE

1

CYLINDER NLA - Ref. 2-15 - Order 7147446 cylinder - Was 6539256 - A

1

CYLINDER NLA - Ref. 2-15 - Order 7147446 cylinder - Was 6589252 - A

1

7147446

CYLINDER Ref. 3-15 & 17 - Was 6589476 - A

2

ROD NLA - Order Ref. 4 & 17 - Was 6539251 - A

3

6532564

HEAD

4

7147310

PISTON Was 6539252 - A

5

92D20

NUT Was 82D000020B - B

6

PLUG NLA - flat boss face - allen socket head - Was 47K-5 - A

6

PLUG NLA - tapered boss face - allen socket head - Was 90KV00005B - A

6

90K5

PLUG flat boss face - allen socket head

6

6812171

PLUG flat boss face - hex head

7

75K6

O-RING for flat boss face - Was 79K000006B - B

7

95K6

O'RING for tapered boss face

8

CASE NLA - Order 6589479 - Was 6536946 - A

8

6589479

CASE

9

6516229

PISTON SEAL Was NSS - D

10

25K30210

O-RING Was 54K30210 - B

11

25K60212

O RING 10 Was 54K60212 - B

12

80K332

WASHER back-up - Was 73K000332B - A

13

6667328

SEAL Was 6538277 - A

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

25K40224

O RING 10 Was 54K40224 - B

16

7147444

ROD

17

7008356

SEAL, QUAD

18

6803319

SEAL KIT Ref. 5, 9, 10, 13-15, & 17 - Was 6587993 - A
