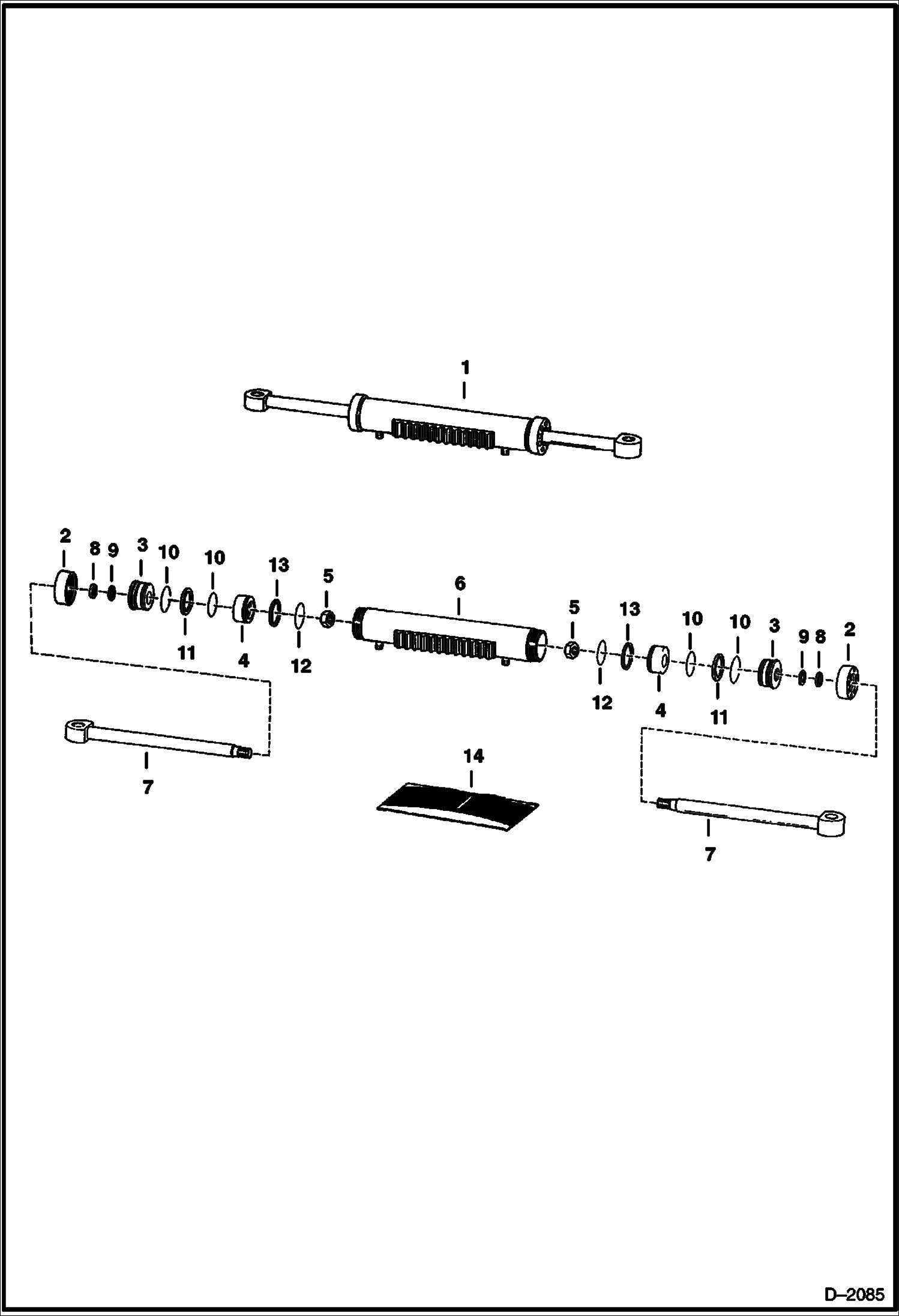

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (3.25 OD) (607 7750) 607 BACKHOE

1

CYLINDER See Illustration BACKHOE/ NA2813 - NLA - Ref. 2-13 - Was 6536989 - A

2

6536993

CAP

3

6536994

HEAD

4

6536995

PISTON

5

92D14

NUT Was 86D000014B - B

6

6536996

CASE

7

6532620

ROD

8

6665208

SEAL Was 1657085B - A

9

6667324

SEAL Was 6665184 - A

10

25K40208

O RING 10 Was 54K40208 - B

11

73K228

BACK-UP RING back-up - Was 80K000228B - A

12

25K30202

O RING 10 Was 54K30202 - B

13

1522534

SEAL Was NSS - D

14

7137870

SEAL KIT Ref. 5, 8-12 - Was 6803330 - A
