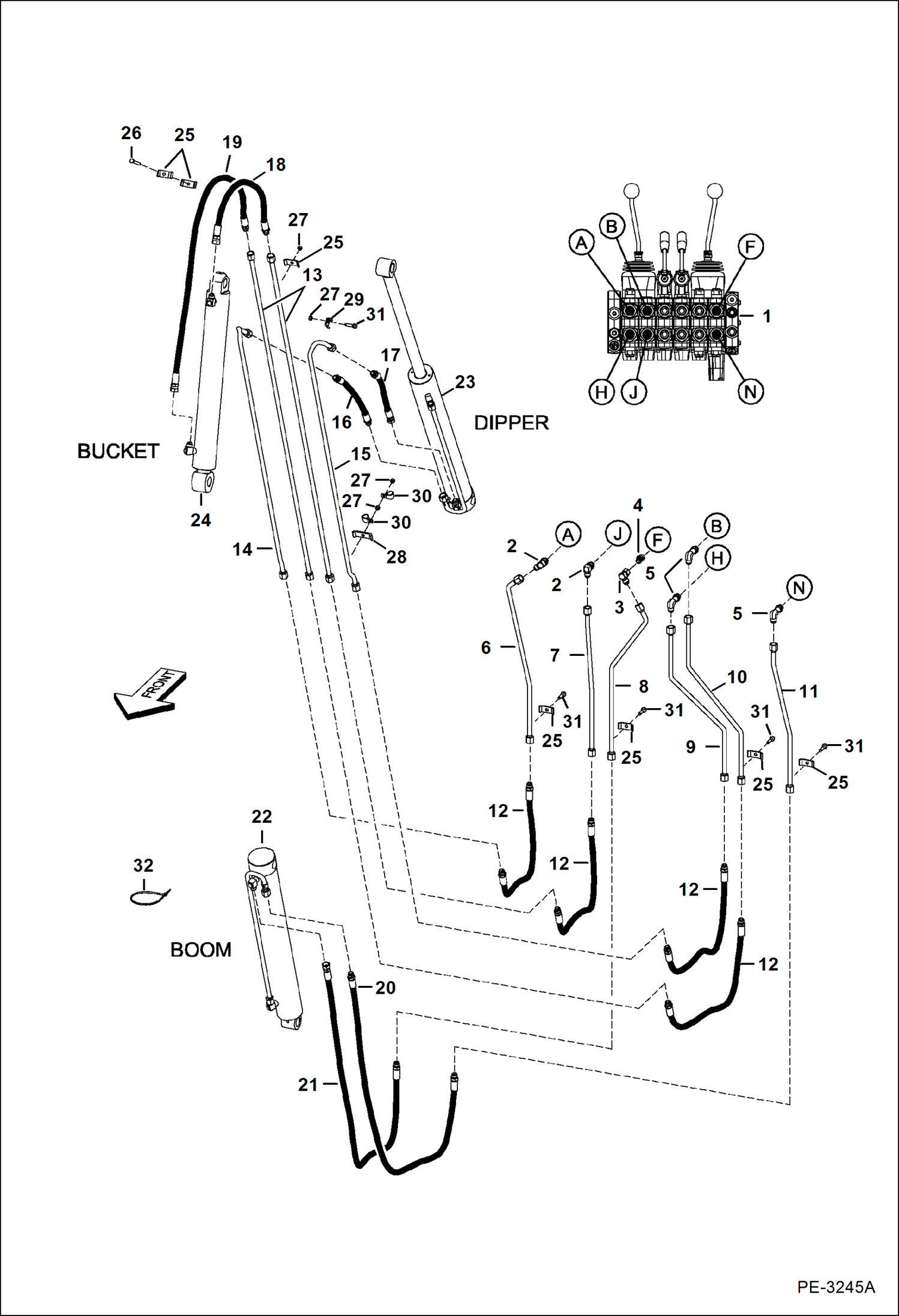

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (W/8 Sections) (607 A5CW) 607 BACKHOE

1

VALVE ASSY See Illustration BACKHOE/ MS2422B

2

17KB1010

FITTING, HYD ELBOW

3

11K7

ADAPTER

4

15KB1010

FITTING, HYD CONNECTOR

5

6519195

ELBOW

6

7131255

TUBELINE

7

7131258

TUBELINE

8

7131259

TUBELINE

9

7131256

TUBELINE

10

7131257

TUBELINE

11

7131260

TUBELINE

12

7131530

HOSE

13

6536622

TUBE

14

6536623

TUBE

15

6536624

TUBE

16

6534349

HOSE

17

6713390

HOSE

18

6538438

HOSE

19

6536609

HOSE

20

7131531

HOSE

21

7131532

HOSE

22

CYLINDER See Illustration BACKHOE/ PE2513 - boom

23

CYLINDER See Illustration BACKHOE/ PE2513A - dipper

24

CYLINDER See Illustration BACKHOE/ B20457 - bucket

25

6502426

CLAMP

26

17C632

BOLT 5

27

85D6

NUT, 5

28

6537761

CLAMP

29

6562266

CLAMP

30

30H46

CLIP

31

84G3728

BOLT

32

6610510

TIE
