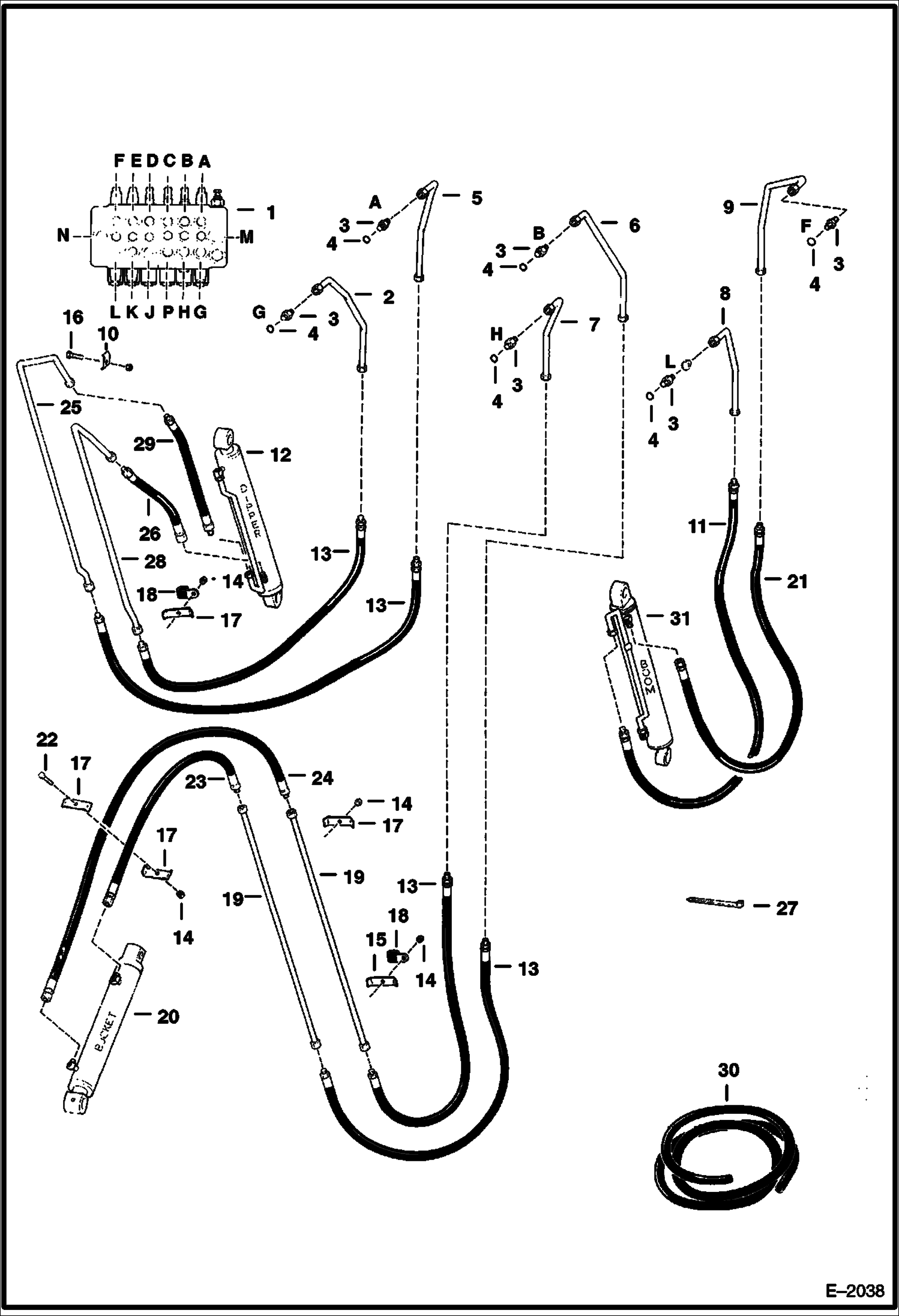

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (607 7750) 607 BACKHOE

1

VALVE See Illustration BACKHOE/ D2111B

2

6532963

TUBE

3

15K6

ADAPTER W/Ref. 4 - flat boss face

3

ADAPTER NLA - W/Ref. 4 - tapered boss face - Was 15KN00006B - A

3

15KB0808

FITTING, HYD CONNECTOR W/Ref. 4 - flat boss face

3

97K8

O-RING for flared end

4

79K8

O RING 10 for flat boss face

4

99K8

O-RING for tapered boss face

5

6532962

TUBE

6

6532961

TUBE

7

6532960

TUBE

8

6532956

TUBE

9

6532958

TUBE

10

6562266

CLAMP

11

6538292

HOSE

12

CYLINDER See Illustration BACKHOE/ C3240 - dipper

13

6538295

HOSE

14

81D6

NUT

15

6537761

CLAMP

16

84G3724

BOLT

17

6502426

CLAMP

18

30H38

CLIP

19

6536622

TUBE

20

CYLINDER See Illustration BACKHOE/ C3236 - bucket

21

6533050

HOSE

22

84G3728

BOLT Was 17C624 - B

23

6538438

HOSE

24

6536609

HOSE

25

6536623

TUBE

26

6713390

HOSE Was 6534348 - A

27

6610510

TIE Was 1715312B - A

28

6536624

TUBE

29

6534349

HOSE

30

6649389

HOSE COVER bulk - sold per foot

31

CYLINDER See Illustration BACKHOE/ C3241 - boom
