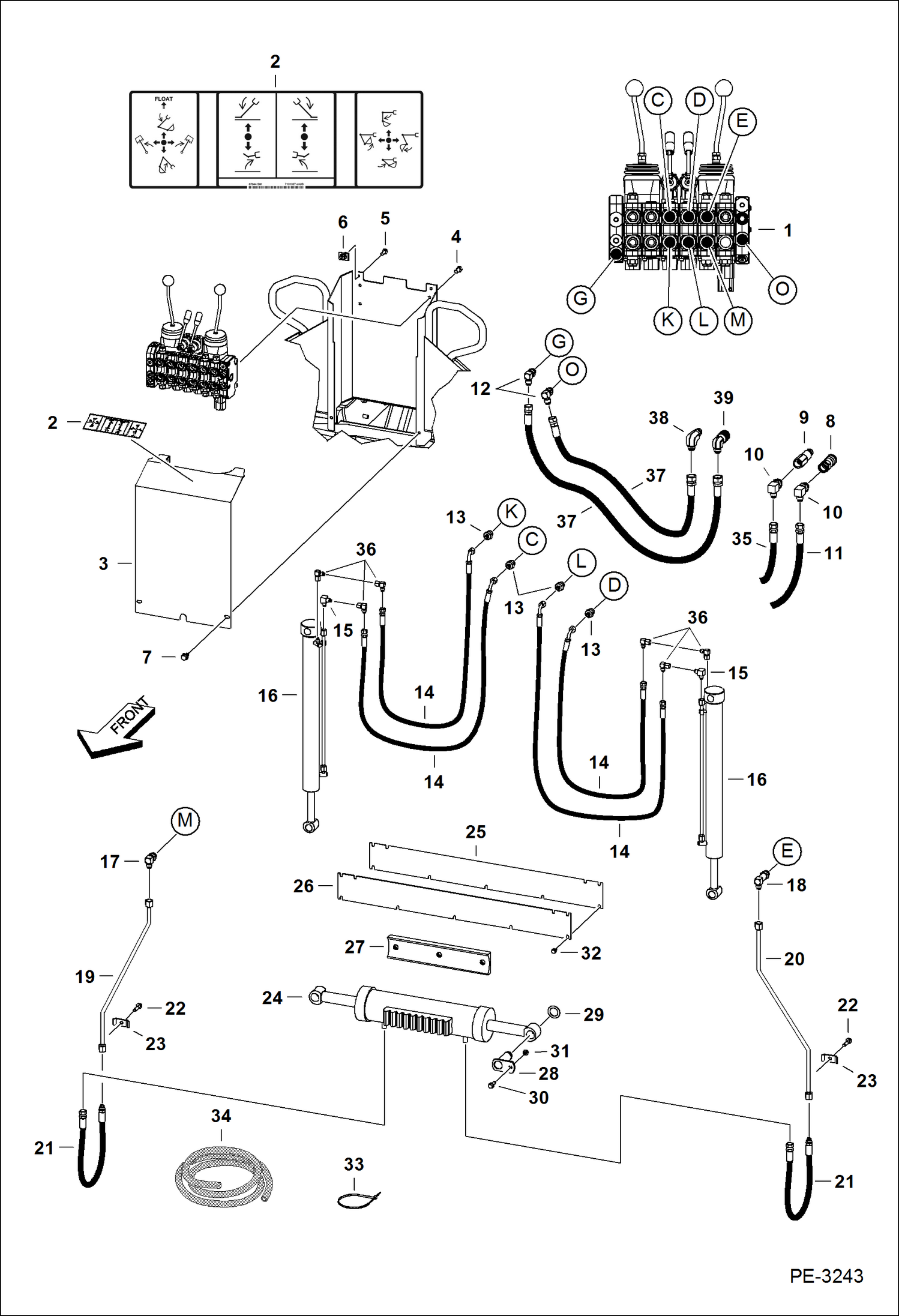

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (W/8 Sections) (607 A5CW) 607 BACKHOE

1

VALVE ASSY See Illustration BACKHOE/ MS2422B

2

7131327

DECAL control

3

7130434

COVER

4

17C510

BOLT

5

17C410

BOLT 10

5

17C412

BOLT 5

6

7160765

NUT Was 6660988 - A

7

84G3712

BOLT 5

8

6672960

COUPLER, FF FEMALE straight

9

6674688

COUPLER, FF MALE straight

10

17KB1012

FITTING, HYD ELBOW

11

7131150

HOSE 1422 mm (56'') long - .875'' threads - Use straight couplers

12

17KB1010

FITTING, HYD ELBOW

13

15KB0610

FITTING, HYD CONNECTOR

14

7131137

HOSE

15

77F5

FITTING

16

CYLINDER See Illustration BACKHOE/ C3388 - stabilizer

17

17KB0810

FITTING, HYD ELBOW

18

6816235

FITTING

19

7131261

TUBELINE

20

7131262

TUBELINE

21

6533046

HOSE

22

84G3728

BOLT

23

6502426

CLAMP

24

CYLINDER See Illustration BACKHOE/ NA2813 - swing

25

6532861

SHIM

26

6532860

WEAR PLATE

27

6532859

WEAR BAR

28

6532869

PIN

29

6528927

WASHER

30

84G3728

BOLT Was 84G3720 - B

31

89D6

NUT Was 55D6 - B

32

84G3110

SCREW

33

6610510

TIE

34

6649389

HOSE COVER bulk - sold per foot - for Ref. 21 hose

35

7131263

HOSE 1168 mm (46'') long - .875'' threads - Use straight couplers

36

11K5

FITTING

37

6958998

HOSE 1422 mm (56'') long - .87'' thread & 1.063'' thread - Use 90 degree coupler

38

7168432

COUPLER, FF MALE 90 degree

39

7168433

COUPLER, FF FEMALE 90 degree
