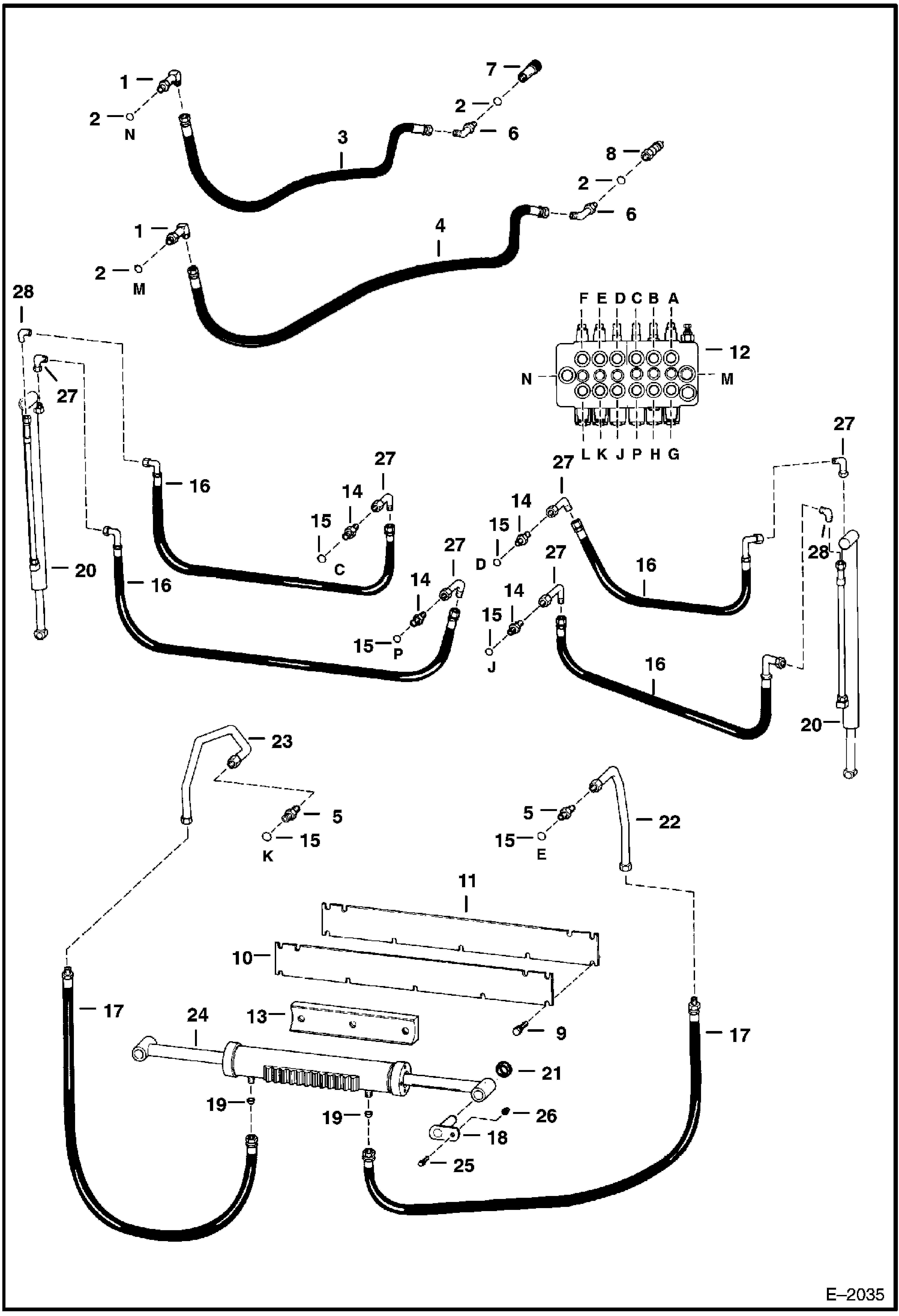

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (607 7750) 607 BACKHOE

1

6519195

ELBOW W/Ref. 2

2

79K10

O RING 10 Use with poppet couplers

2

79K12

O RING 10 Use with flush face couplers

3

6534346

HOSE

4

6534347

HOSE

5

15K6

ADAPTER W/Ref. 15 - flat boss face

5

ADAPTER NLA - W/Ref. 15 - tapered boss face - Was 15KN00006B - A

5

15KB0808

FITTING, HYD CONNECTOR W/Ref. 15 - flat boss face

5

97K8

O-RING for flared end

6

17K7

ELBOW Use with poppet couplers

6

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

48K16

O RING 10 for poppet coupler

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

84G3110

SCREW

10

6532860

WEAR PLATE

11

6532861

SHIM

12

VALVE See Illustration BACKHOE/ D2111B

13

6537116

WEAR BAR

13

6532859

WEAR BAR

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10 for flat boss face

15

99K8

O-RING for tapered boss face

16

HOSE NLA - Order 6640724 & Ref. 27 - Was 6532952 - A

16

6640724

HOSE

17

6533046

HOSE

18

6532869

PIN

19

6587339

ORIFICE .077'' (1,96 mm) dia. - 0.42'' O.D.

19

6592864

ORIFICE .077'' (1,96 mm) dia. - 0.55'' O.D.

19

6587338

ORIFICE .090'' (2.29 mm) dia. - 0.42'' O.D.

19

6592853

ORIFICE .090'' (2.29 mm) dia. - 0.55'' O.D.

19

7109886

ORIFICE .086 dia. - 55'' O.D.

20

CYLINDER See Illustration BACKHOE/ C3388 - stabilizer

21

6528927

WASHER

22

6532957

TUBE

23

6532959

TUBE

24

CYLINDER See Illustration BACKHOE/ D2085 - swing

25

84G3728

BOLT Was 84G3720 - B

26

89D6

NUT Was 55D6 - B

27

11K5

FITTING flat boss face

27

ELBOW NLA - tapered boss face - Order 11K-5 - Was 11KN00005B - A

27

97K6

O RING for flared end

28

77F5

FITTING
