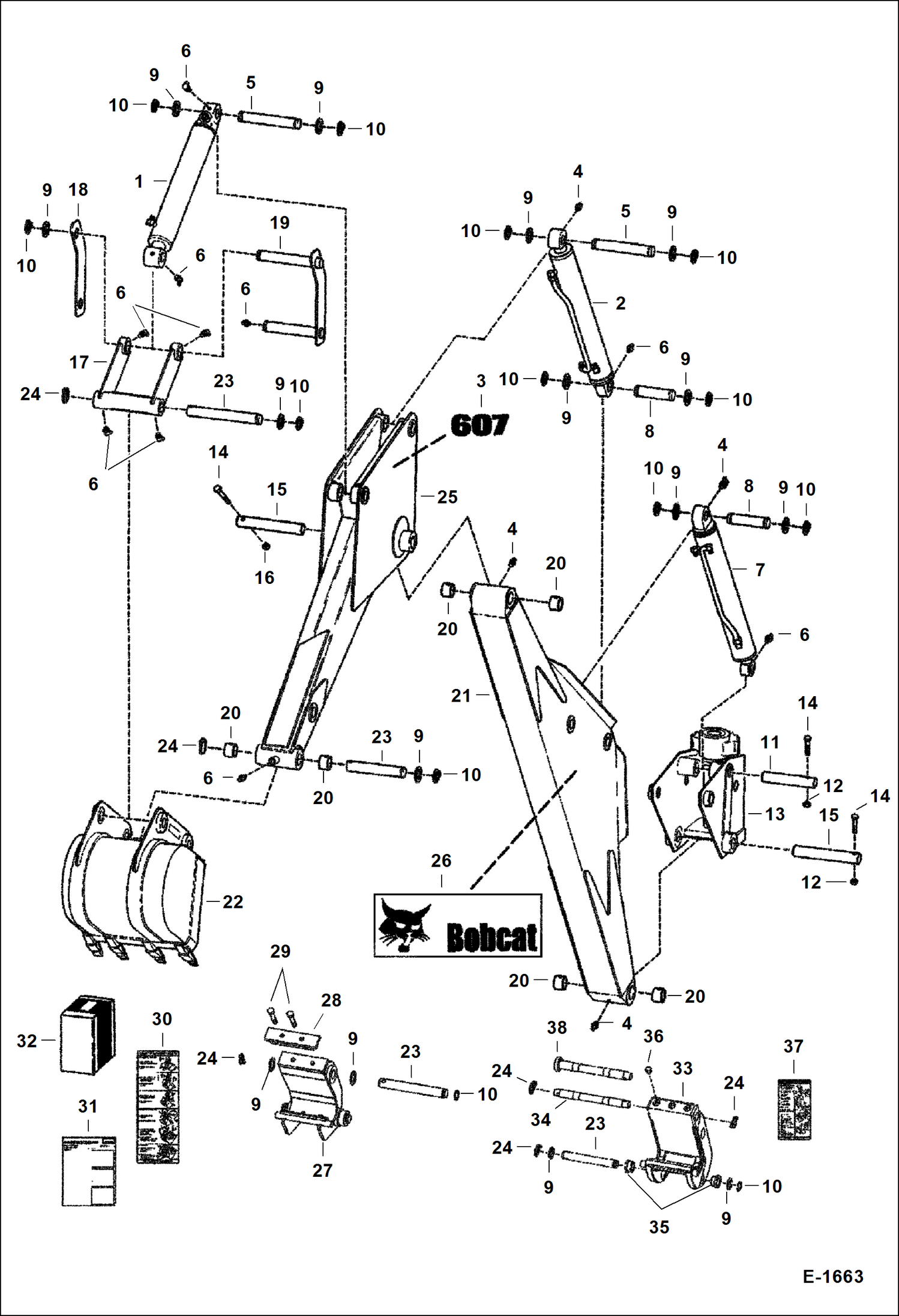

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick) (607 7750 & A5CW) 607 BACKHOE

1

CYLINDER See Illustration BACKHOE/ C3236 - bucket

1

CYLINDER See Illustration BACKHOE/ B20457 - bucket

2

CYLINDER See Illustration BACKHOE/ C3240 - dipper

2

CYLINDER See Illustration BACKHOE/ PE2513A - dipper

3

6537228

DECAL 607

4

12H15

FITTING, GREASE 5

5

6532518

PIN

6

10H25

FITTING, GREASE 5

7

CYLINDER See Illustration BACKHOE/ C3241 - boom

7

CYLINDER See Illustration BACKHOE/ PE2513 - boom

8

6532517

PIN

9

6532519

WASHER

10

22J20

SNAP RING Was 6538287 - B

11

6532568

PIN

12

81D6

NUT

13

FRAME See Illustration BACKHOE/ E2034 - swing

14

17C648

BOLT 5

15

6532522

PIN

16

89D6

NUT Was 85D6 - B

17

6535852

LINK

18

6538405

LINK

19

6535855

LINK

20

6651171

BUSHING

21

6535826

BOOM 607 BACKHOE

22

BUCKET See Illustration BACKHOE/ MS1378A See Illustration BACKHOE/ C2910

23

6537226

PIN

24

6560382

PIN, LOCK ring lock

25

6535817

DIPPERSTICK

26

6808545

DECAL bobcat - R.H. - Was 6557412 - B

26

6808546

DECAL bobcat - L.H. - Was 6557413 - B

26

6815489

DECAL bobcat - used on both sides

27

6714924

FRAME bolt-on X-Change

28

6804485

PLATE

29

17C1052

BOLT

30

6806121

DECAL bolt-on X-Change

31

6900862

INSTRUCTIONS

32

KIT SALES #6807915 - bolt-on X-change - Ref. 27-31

33

7102890

FRAME pin-on X-change

34

7137214

PIN

35

7103006

BUSHING

36

24K6

FITTING

37

6818059

DECAL using X-change

38

PIN NLA - Order 7137214 pin & (2) of 6560382 lock rings - Was 6734239 - A
