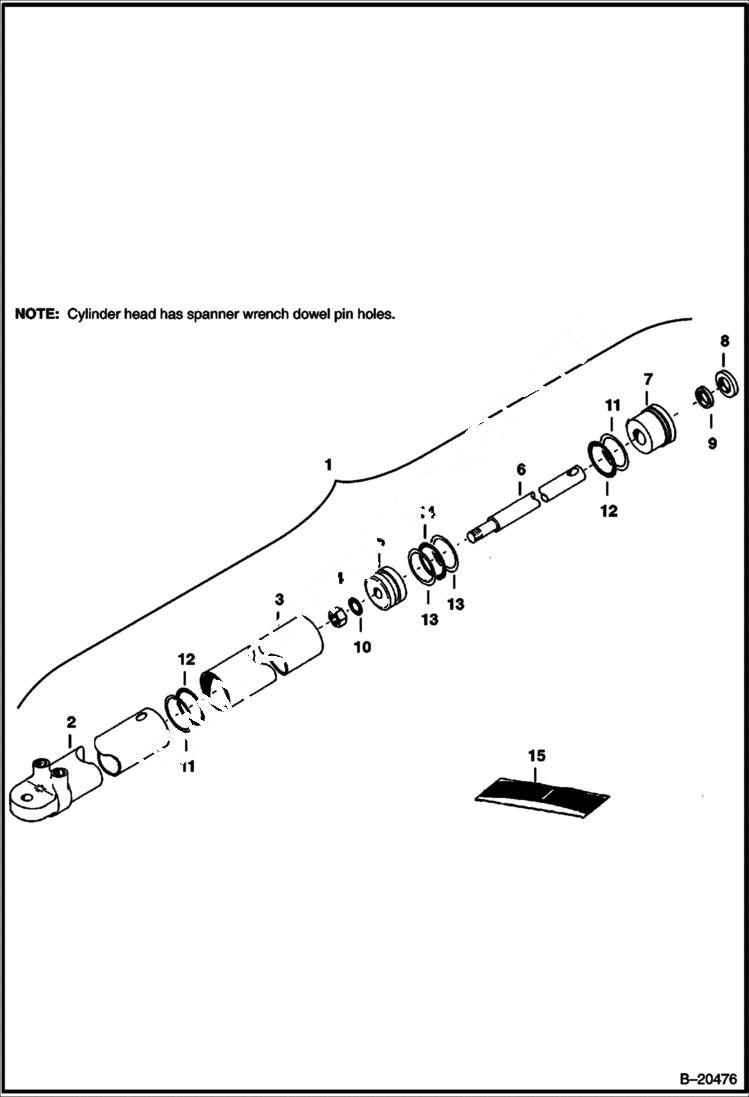

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (Bobcat) (907) (908A) (908B) (909) 908 BACKHOE

1

7102042

CYLINDER Was 6592266 - A

2

7102043

BARREL Was 6592802 - A

3

6592274

BARREL outer

4

86D10

NUT

5

6592273

PISTON

6

6592271

ROD

7

6592275

HEAD

8

1657083

WIPER ROD oil - Was NSS - D

9

6704243

SEAL back-up - Was NSS - D

10

25K20016

O RING 10 Was NSS - D

11

80K328

BK UP RG back-up - Was NSS - D

12

25K60128

O RING 10 Was 54K60128 - D

13

80K222

BK UP RG back-up - Was NSS - D

14

58K222

O-RING Was NSS - D

15

7102597

SEAL KIT Ref. 8-14 - Was 6592276 - A
