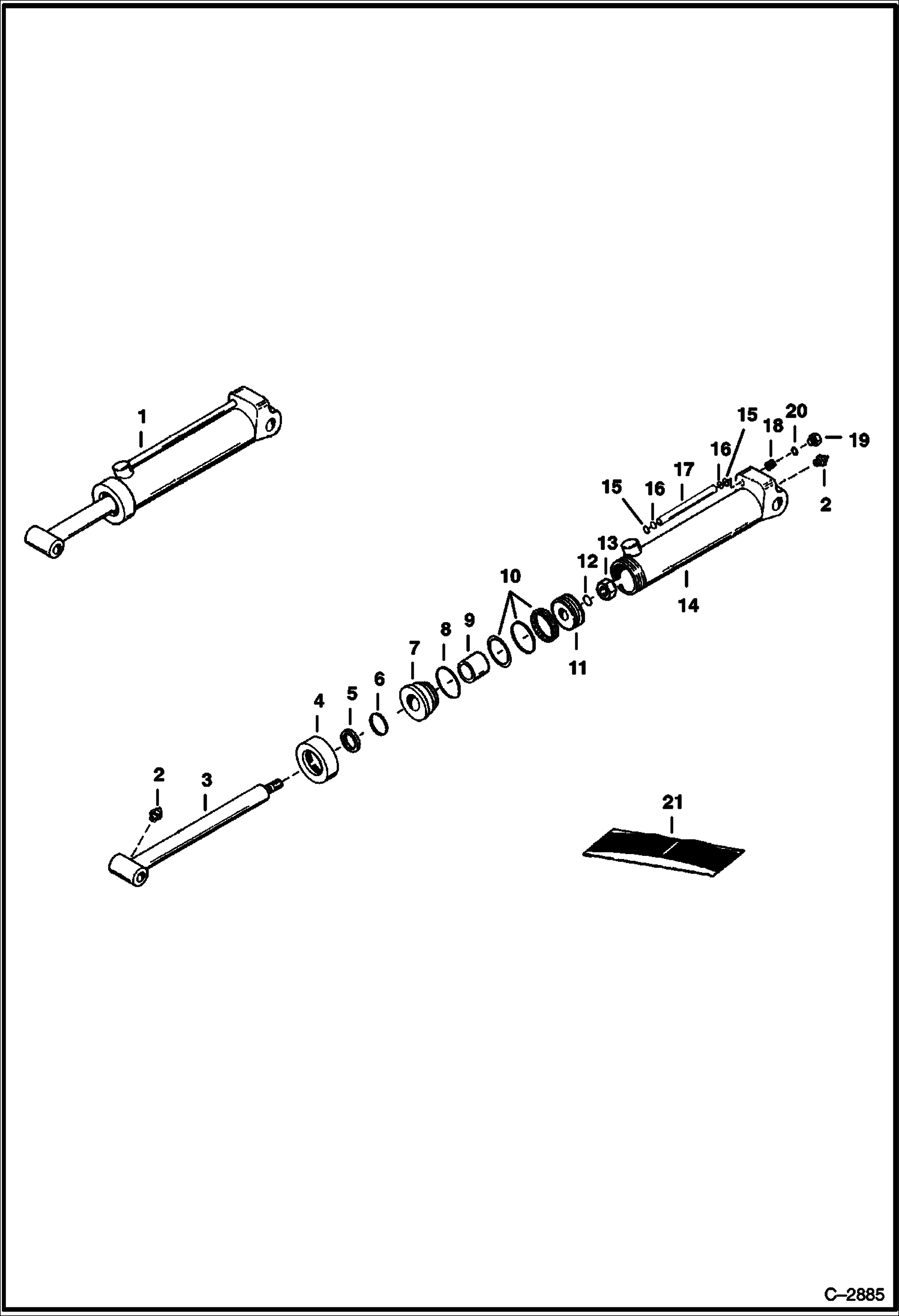

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (Lantex) (908) 908 BACKHOE

1

CYLINDER See BTI110 NLA - lantex - Fig. 7 for identification - Was 6512877 - A

2

GREASE ZERK NLA - Was 10H000002B - A

3

6512890

ROD

4

6512888

COLLAR

5

WIPER NSS

6

SEAL NSS

7

6512887

GLAND

8

O-RING NSS

9

SPACER NLA

10

SEAL NSS

11

PISTON NLA - Was 6512889 - A

12

O-RING NSS

13

86D20

NUT

14

CASE NLA - Was 6598676 - A

15

25K30014

O RING

16

6518075

RING

17

MANIFOLD NSS

18

SPRING NLA - Was 6510921 - A

19

24K6

FITTING

20

79K8

O RING 10 Was 91F000006B - A

21

6512891

SEAL KIT Ref. 5, 6, 8, 10 & 12

21

KIT NLA - manifold - Ref. 15-17 - Was 6510923 - A
