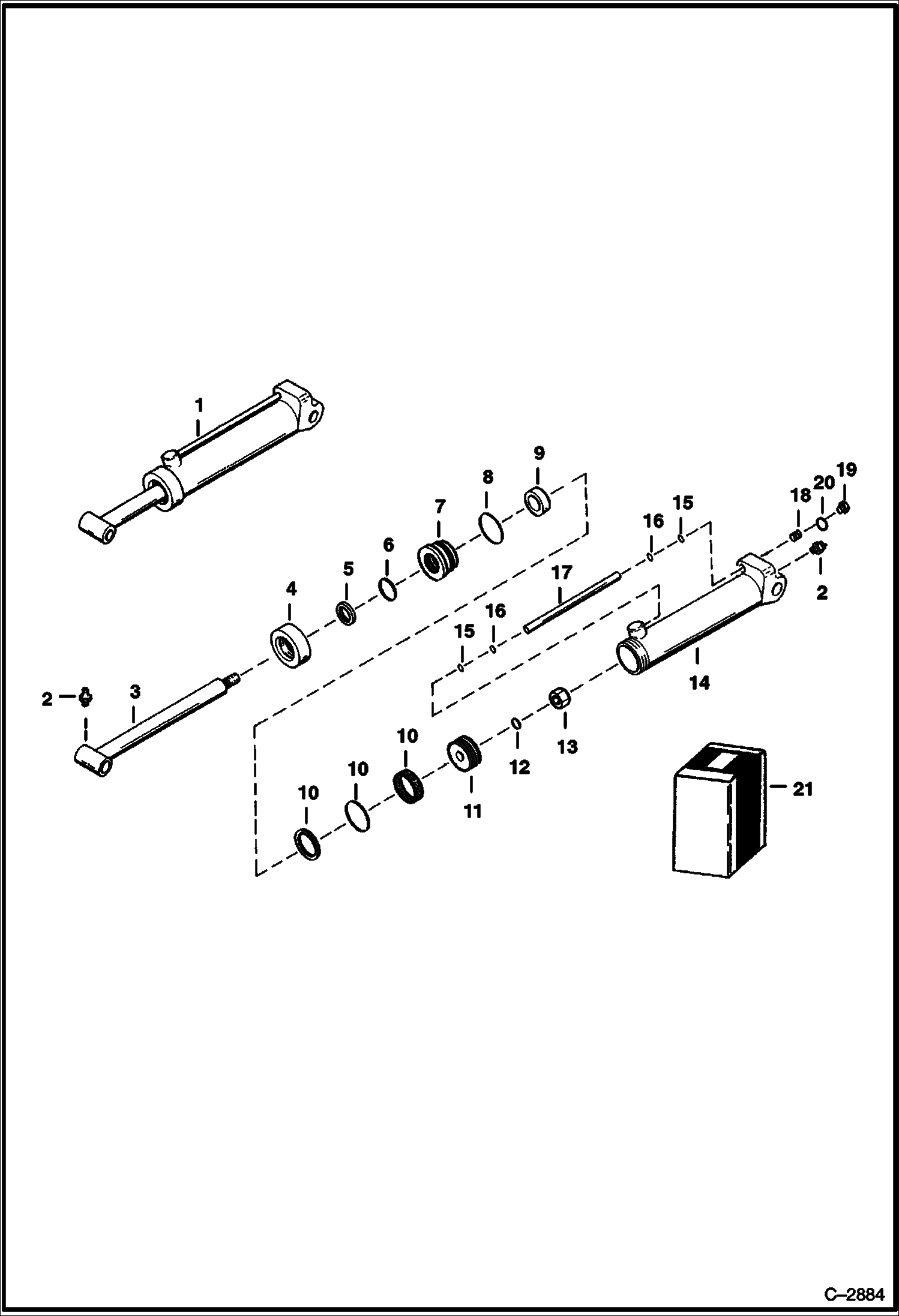

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (Lantex - Rebuilt H-621029) (908) 908 BACKHOE

1

CYLINDER See BTI110 NLA - Order 6512877 - fig. 6 for identification

2

GREASE ZERK NLA - Was 10H000002B - A

3

ROD NLA - Was 6512668 - A

4

6512888

COLLAR

5

WIPER NSS

6

WASHER NSS - back-up & O-ring

7

6512887

GLAND

8

O-RING NSS

9

SPACER NLA

10

WASHER NSS - back-up & O-ring

11

6512886

PISTON

12

O-RING NSS

13

6810539

NUT Was 27D000018B - A

14

CASE NLA

15

25K30014

O RING Was NSS - D

16

6518075

RING Was NSS - D

17

MANIFOLD NSS

18

SPRING NLA - Was 6510921 - A

19

24K6

FITTING W/Ref. 20

20

79K8

O RING 10 Was 91F000006B - A

21

6512822

SEAL KIT Ref. 5, 6, 8, 10 & 12

21

KIT NLA - manifold - Ref. 15-17 - Was 6510923 - A
