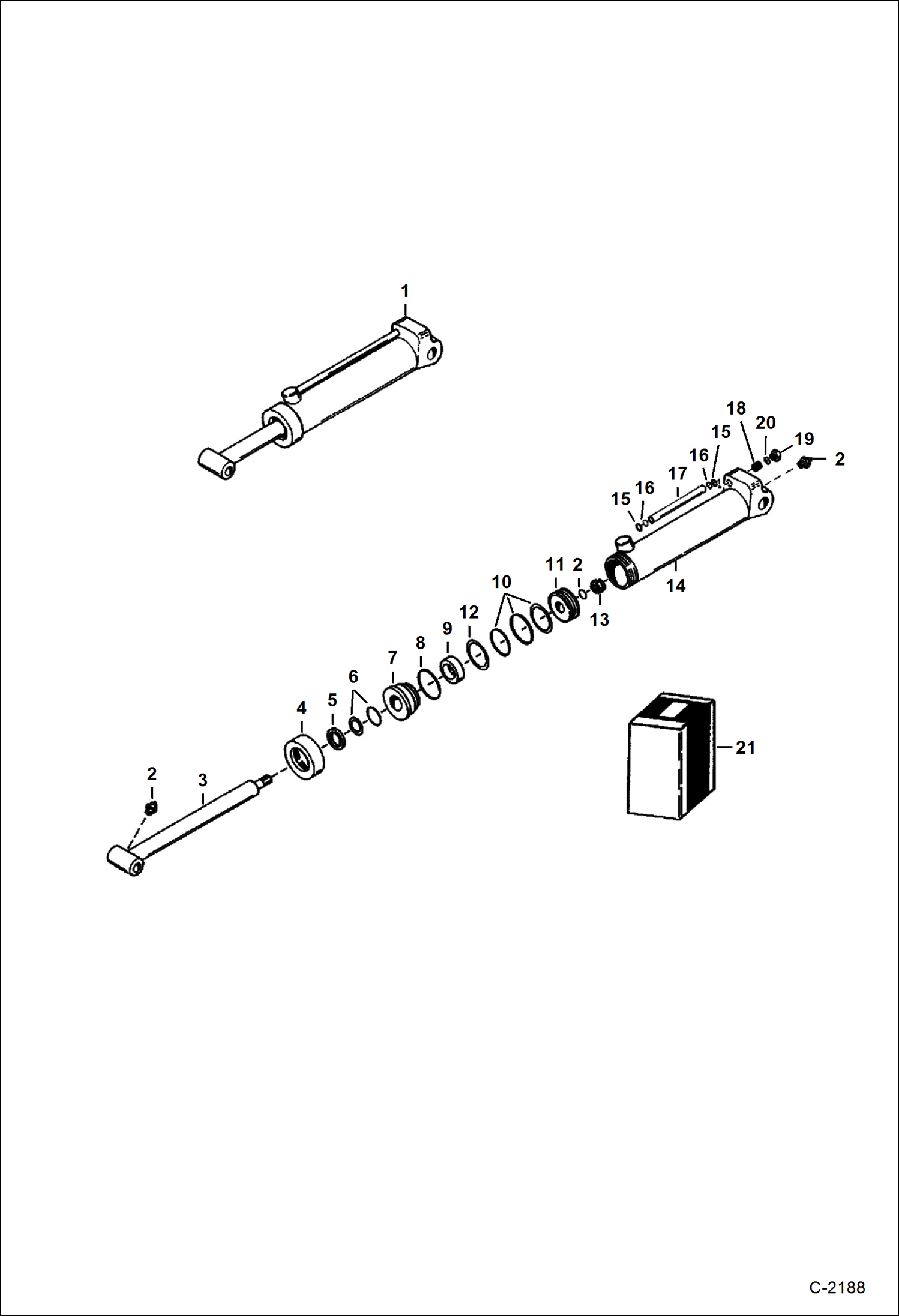

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (Lantex - Old) (908) 908 BACKHOE

1

CYLINDER See BTI110 NLA - Order 6512877 - fig. 5 for identification

2

GREASE ZERK NLA - Was 10H000002B - A

3

ROD NLA - Was 6512668 - A

4

6512669

COLLAR

5

WIPER NSS - rod

6

WASHER NSS - back-up & O-ring

7

GLAND See BTI110 NLA - Order Ref. 21

8

O-RING NSS

9

SPACER NLA

10

WASHER NSS - back-up & O-ring

11

PISTON See BTI110 NLA - W/Ref. 20

12

O-RING NSS

13

6810539

NUT Was 27D000018B - A

14

CASE NLA

15

O-RING NSS

16

RING NSS

17

MANIFOLD NSS - 17-7/16'' x 5/8'' (442,91 mm x 15,88 mm)

18

SPRING NLA - Was 6510921 - A

19

24K6

FITTING W/Ref. 20

20

79K8

O RING 10 Was 91F000006B - A

21

KIT NLA - manifold - Ref. 15-17 - Was 6510923 - A

21

6557487

KIT See BTI110 repair - Ref. 5-8 & 10-12
