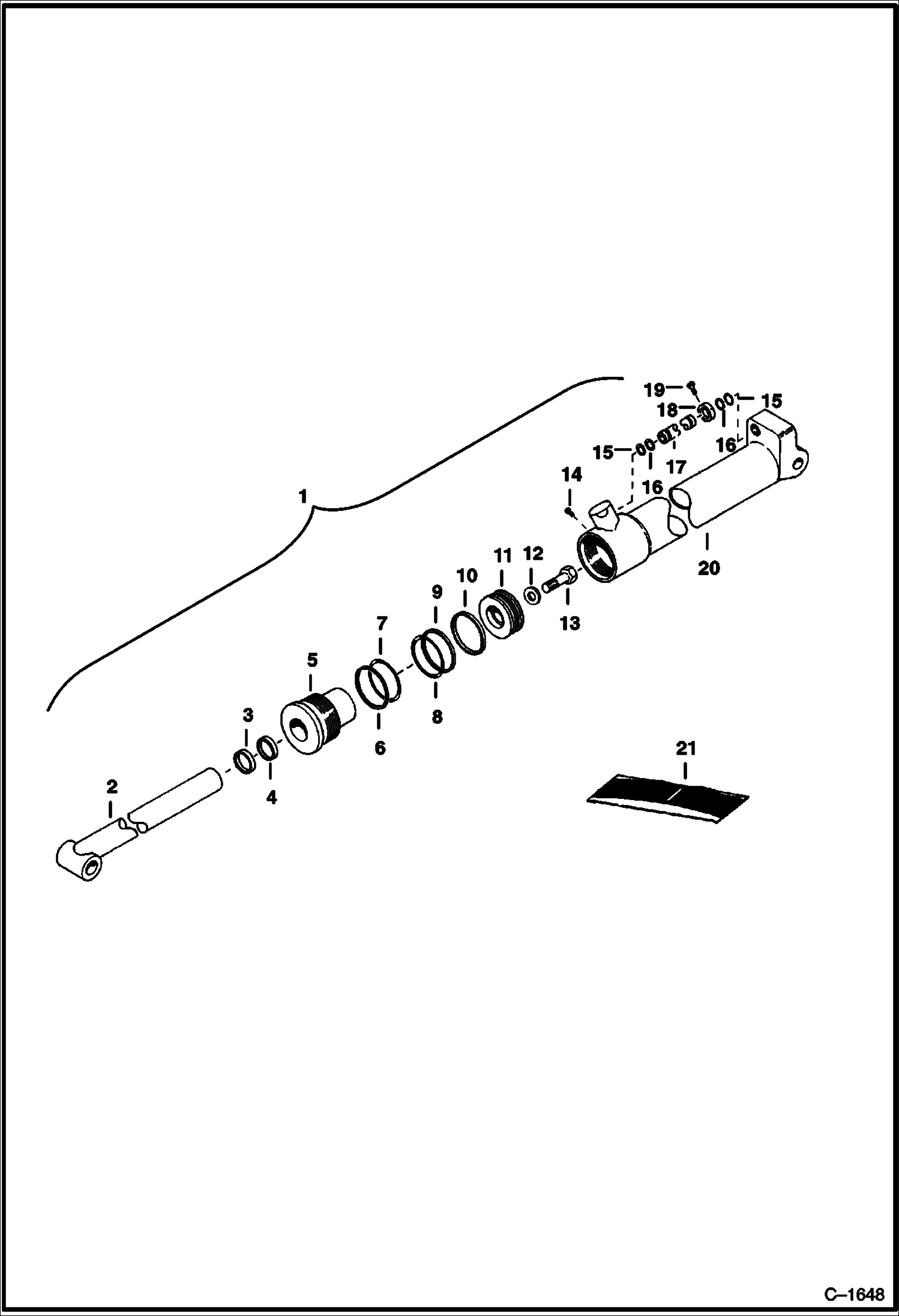

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (J.I.Case) (908) 908 BACKHOE

1

CYLINDER See BTI110 NLA - Order 6512877 - fig. 3 for identification

2

ROD NLA

3

WIPER NSS

4

SEAL NSS

5

6660938

HEAD W/Ref. 3, 4, 6 & 7 - Was 6519784 - A

6

RING NSS - back-up

7

O-RING NSS

8

O-RING NSS

9

RING NSS - back-up

10

RING NSS - wear

11

6519778

PISTON

12

6519809

WASHER

13

18C1232

BOLT

14

65G804

SCREW

15

25K20014

O RING 10

16

73K013

RING, BACK-UP Was 80K13 - B

17

6519782

TUBE 17-7/8'' x 9/16'' (454 mm x 14,4 mm)

18

6519777

CLAMP W/Ref. 19

19

21G1008

SCREW

20

CASE NLA

21

6519785

SEAL KIT W/Ref. 3, 4 & 6-10
