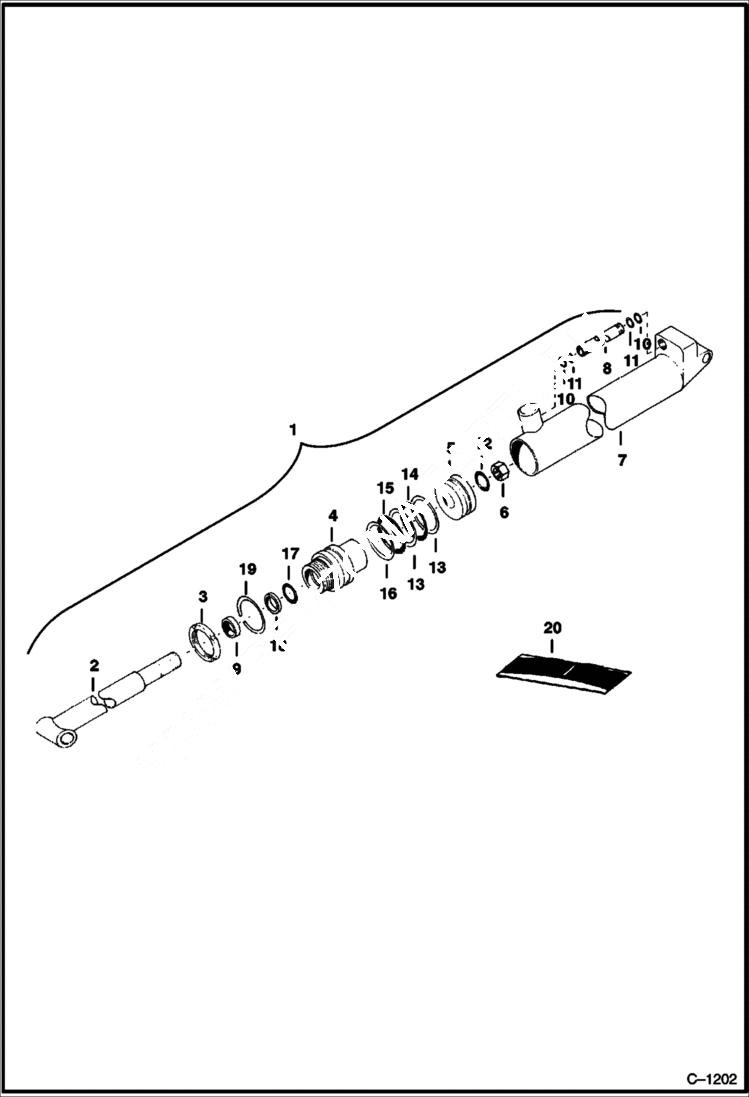

Запчасти Bobcat BACKHOE BACKHOE (Boom, Bucket & Dipperstick Cylinder) (Cessna) (908) 908 BACKHOE

1

CYLINDER See BTI110 NLA - Order 6512877 - Fig. 2 for identification

2

ROD NLA - Was 6518066 - A

3

6518065

NUT

4

6518064

BEARING

5

PISTON NLA - Was 6518063 - A

6

6810539

NUT Was 27D000018B - A

7

CASE NLA - Was 6518062 - A

8

6518061

TUBE 18-12'' x 58'' (304,8 mm x 1473,2 mm)

9

SEAL NSS

10

25K30014

O RING

11

6518075

RING back-up

12

O-RING NSS

13

WASHER NSS - back-up

14

O-RING NSS

15

O-RING NSS

16

WASHER NSS - back-up

17

O-RING NSS

18

WASHER NSS - back-up

19

RING NSS - lock

20

6515452

SEAL KIT Ref. 10-20
