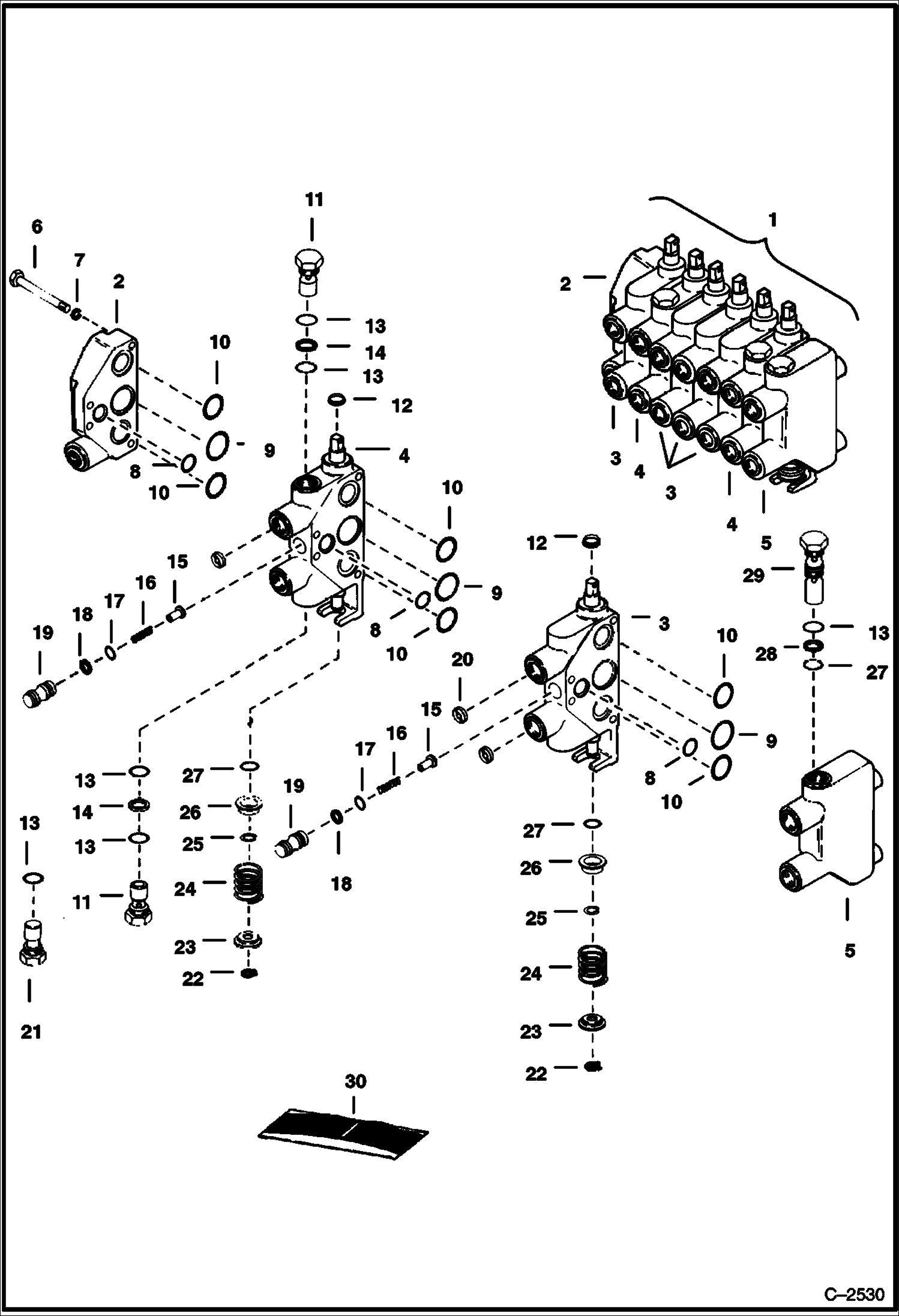

Запчасти Bobcat BACKHOE BACKHOE (Valve Bank) (908) 908 BACKHOE

1

VALVE NLA - Was 6518006 - A

2

4149056

END PLATE end

3

4149060

VALVE valve - bucket, stabilizer & swing sections - Was 4149060B - A

4

4149058

VALVE valve - boom & dipperstick sections

5

4149057

PORT PLAT port

6

17C6174

BOLT section retaining

7

4E6

WASHER

8

O-RING NSS

9

O-RING NSS

10

O-RING NSS

11

RELIEF VALVE NLA - W/Ref. 13 & 14 - Was 6512602 - A

12

SEAL NSS - spool

13

O-RING NSS

14

WASHER NSS - back-up

15

4149071

PLUNGER L lift check

16

1550482

SPRING

17

O-RING NSS

18

WASHER NSS - back-up

19

4149069

BODY LIFT lift check

20

ORIFICE NSS - upper boom section - Was 6518042 - A

20

6518998

ORIFICE upper swing section

21

6518043

PLUG W/Ref. 13

22

743609

RET RING retainer

23

4149067

WASHER, S shallow

24

4149068

SPRING SP spool

25

4149072

WASHER wire

26

4149070

WASHER deep

27

O-RING NSS

28

WASHER NSS - back-up

29

6518052

RELIEF VALVE W/Ref. 13, 27 & 28

30

6515455

SEAL KIT between sections - Ref. 8-10

30

6510058

SEAL KIT stabilizer & swing sections - Ref. 12, 17 & 27

30

6510059

SEAL KIT boom or crowd sections - Ref. 12, 14, 17, 18 & 27

30

5294158

SEAL KIT relief valve - Ref. 13, 14, 27 & 28

30

6515454

SEAL KIT major - Ref. 6515455 , 6510058 , 6510059 & 5294158B
