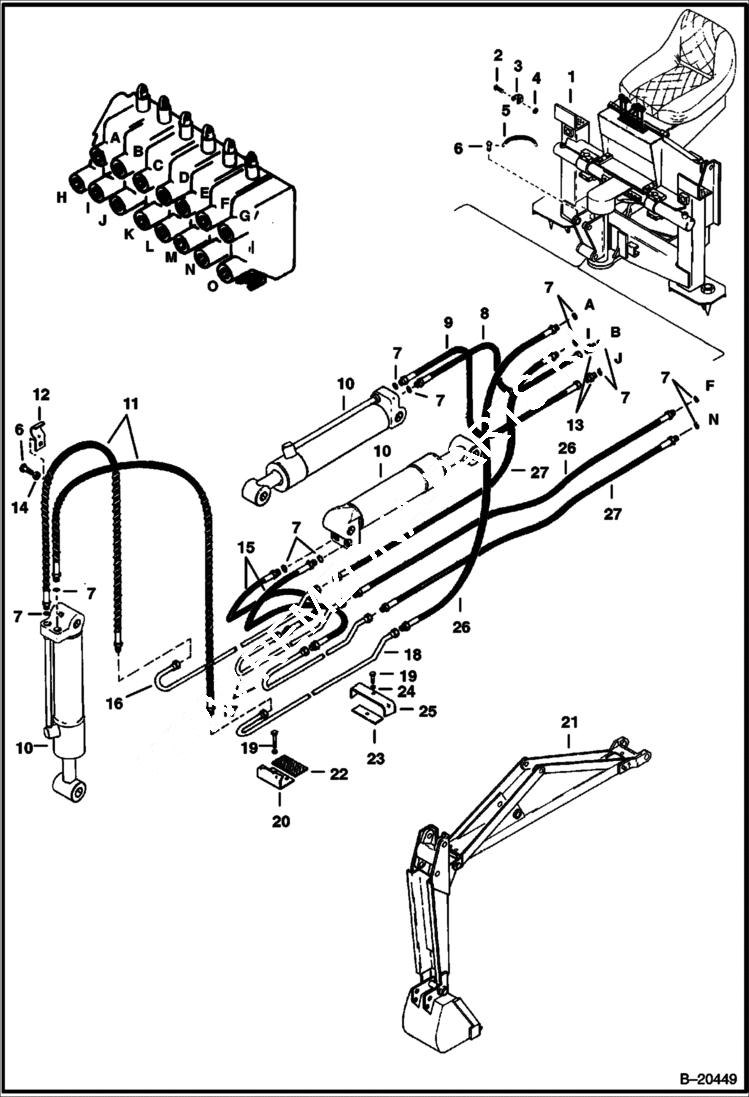

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick Hydraulics) (P-15 - Spec. No. P15DV02 & Above) 908 BACKHOE

1

MAIN FRAME See Illustration BACKHOE/ E1040

2

SCREW NLA - Was 89G000424B - A

3

6518020

CLAMP

4

61D4

NUT 5

5

6518019

SPRING hose retainer

6

17C412

BOLT 5

7

79K8

O RING 10 Was 91F000006B - A

8

6510198

HOSE

9

6510197

HOSE

10

CYLINDER See Illustration BACKHOE/ B3315 See Illustration BACKHOE/ C1202

11

6510181

HOSE

12

6518027

CLAMP

13

15K6

ADAPTER W/Ref. 7

14

81D4

NUT

15

6510195

HOSE

16

6510134

TUBE

17

6510135

TUBE

18

6510133

TUBE

19

17C532

BOLT 5

20

6518022

CLAMP

21

BOOM See Illustration BACKHOE/ D1112 W/buckets & dipperstick

22

6510318

CUSHION tube

23

6518025

CLAMP

24

4E5

WASHER

25

6518026

CLAMP

26

6510200

HOSE

27

6510196

HOSE
