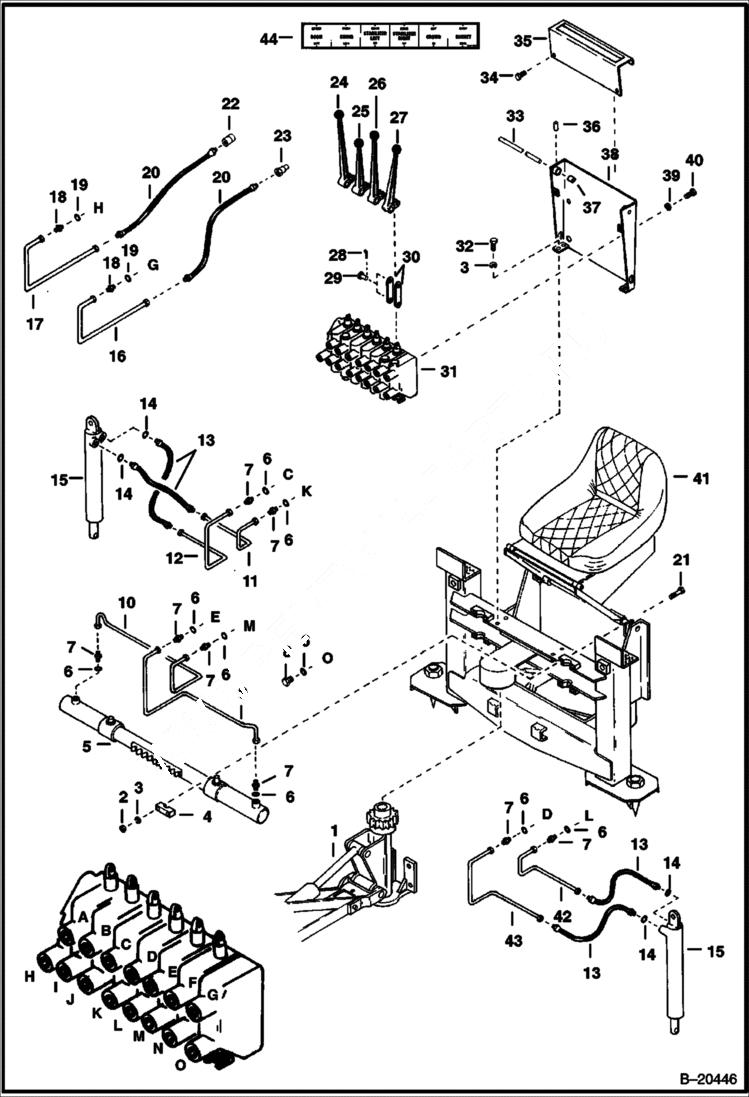

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (D-15 - 00500 & Above) 908 BACKHOE

1

BOOM See Illustration BACKHOE/ D1112 W/bucket & dipperstick

2

61D6

NUT 5

3

4E6

WASHER

4

6518969

RETAINER

5

6518012

CYLINDER See Illustration BACKHOE/ B13712

6

79K8

O RING 10 Was 91F000006B - A

7

6518436

ADAPTER W/Ref. 6

8

24K6

FITTING W/Ref. 6

9

6518015

TUBE

10

6518011

TUBE

11

6518016

TUBE

12

6518017

TUBE

13

6515449

HOSE

14

79K6

O RING 10 Was 91F000005B - A

15

CYLINDER See Illustration BACKHOE/ C1203 stabilizer

16

TUBE See Illustration BACKHOE/ B20447 NLA - Order Ref. 2, 3, 10 & 11

17

TUBE See Illustration BACKHOE/ B20447 NLA - Order Ref. 1-3 & 10

18

6518008

ADAPTER W/Ref. 19

19

79K10

O RING 10 Was 91F000007B - A

20

6504514

HOSE

21

17C644

BOLT

22

6598756

QUICK COUPLER female

22

25K40026

O RING 10

23

6598755

QUICK COUPLER male

24

6515461

LEVER bucket

25

LEVER See Illustration BACKHOE/ B20447 NLA - stabilizer - Order Ref. 13, 16, 20-22 - Was 6515445 - A

26

6515444

LEVER swing & crowd

27

6515460

LEVER boom

28

1F208

PIN

29

6518002

PIN

30

6518003

LINK

31

VALVE See Illustration BACKHOE/ C2530 NLA - Was 6518006 - A

32

17C620

BOLT

33

6518000

SHAFT

34

84G3112

BOLT 5 Was 14G-512 - D

35

6518005

COVER

36

6517999

PIN

37

SPACER NLA - Was 6518001 - A

38

6518004

BRACKET

39

4E7

WASHER

40

17C716

BOLT

41

MAIN FRAME See Illustration BACKHOE/ E1040

42

6518014

TUBE

43

TUBE NLA - Was 6518013 - A

44

6561627

DECAL levers
