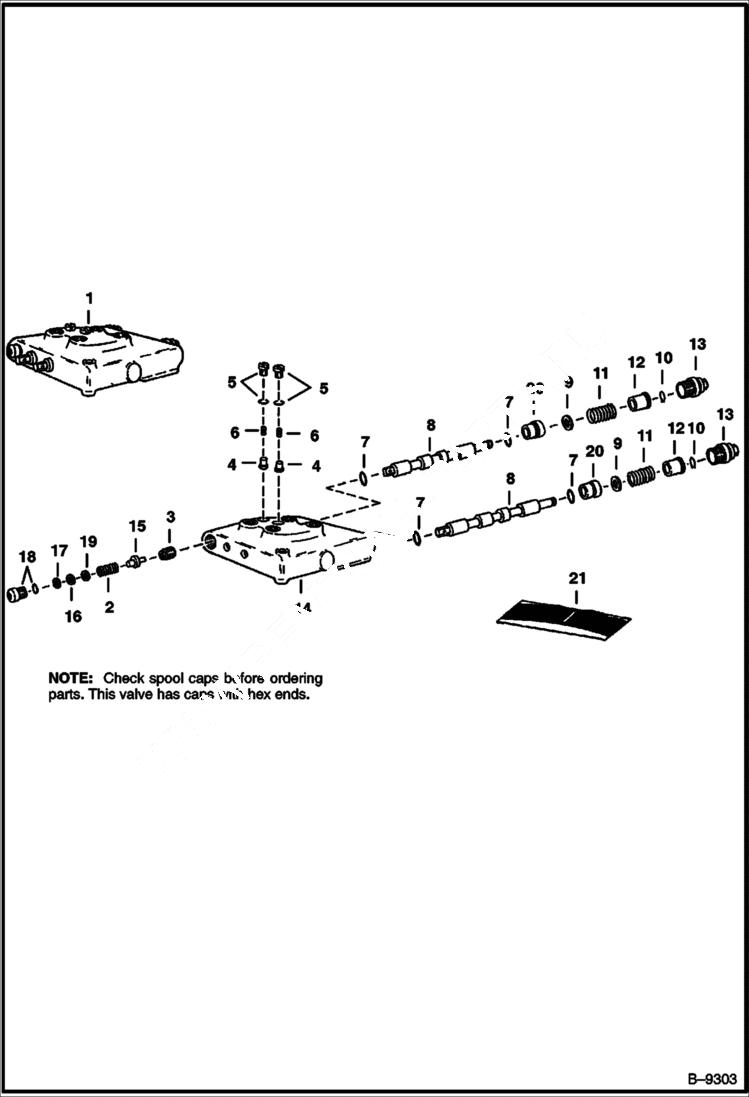

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Valve) (Cessna 30922-CCG) (905) (905A) (905B) 905 BACKHOE

1

6632097

VALVE hydraulic - Ref. 1-19

2

896068

SPRING Was 6632107 - A

3

896066

SEAT

4

994793

POPPET lift check

5

996202

PLUG

6

6510047

SPRING lift check

7

6632108

O-RING

8

SPOOL NLA

9

6632110

WASHER

10

6632109

SNAP RING

11

6632111

SPRING

12

6632105

SPACER

13

6632106

CAP breather

14

HOUSING NLA

15

996350

POPPET

16

6510043

WASHER 0.035

17

894211

WASHER 0.1

18

996349

PLUG

19

896069

SHIM 0.015

20

BUSHING NLA

21

996352

KIT
