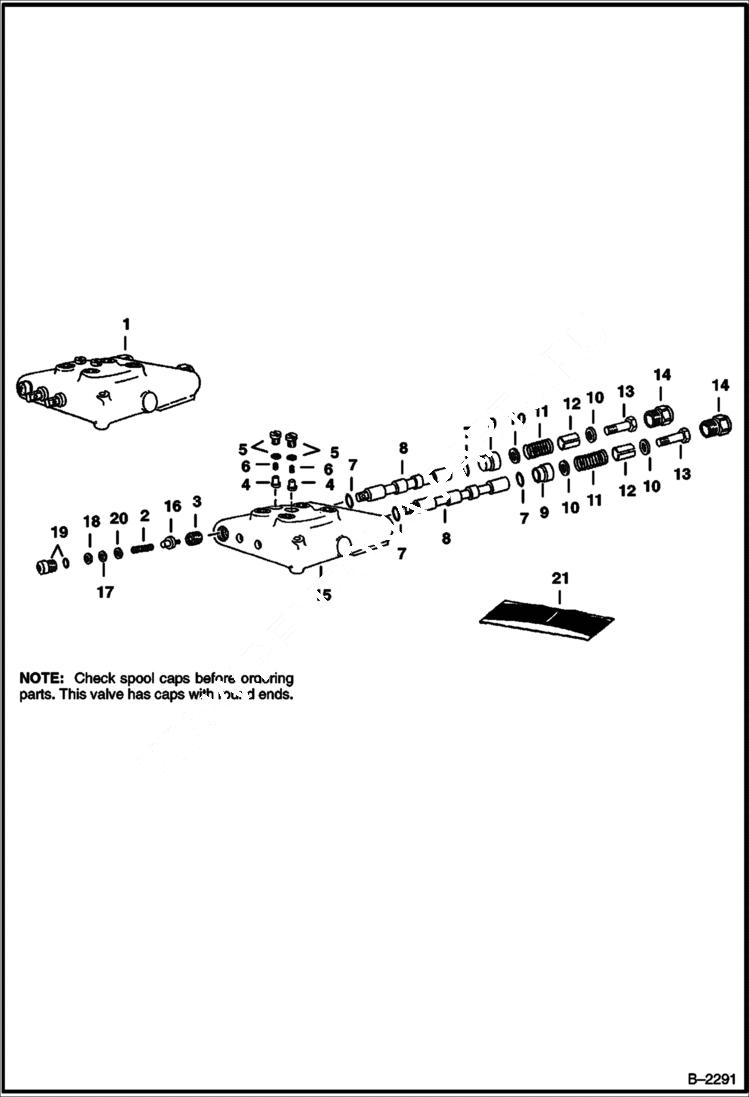

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Valve) (Cessna 30922-AJ) (905) (905A) (905B) 905 BACKHOE

1

VALVE See Illustration BACKHOE/ B9303 NLA - Order 6632097

2

6512235

SPRING

3

896066

SEAT

4

994793

POPPET lift check

5

996202

PLUG

6

6510047

SPRING lift check

7

O-RING NSS

8

SPOOL NLA

9

BUSHING NLA

10

WASHER NLA

11

994787

SPRING

12

SPACER NLA

13

BOLT NLA - spool

14

994789

CAP

15

HOUSING NLA

16

996350

POPPET

17

6510043

WASHER 0.035

18

894211

WASHER 0.1

19

996349

PLUG

20

896069

SHIM 0.015

21

996352

KIT
