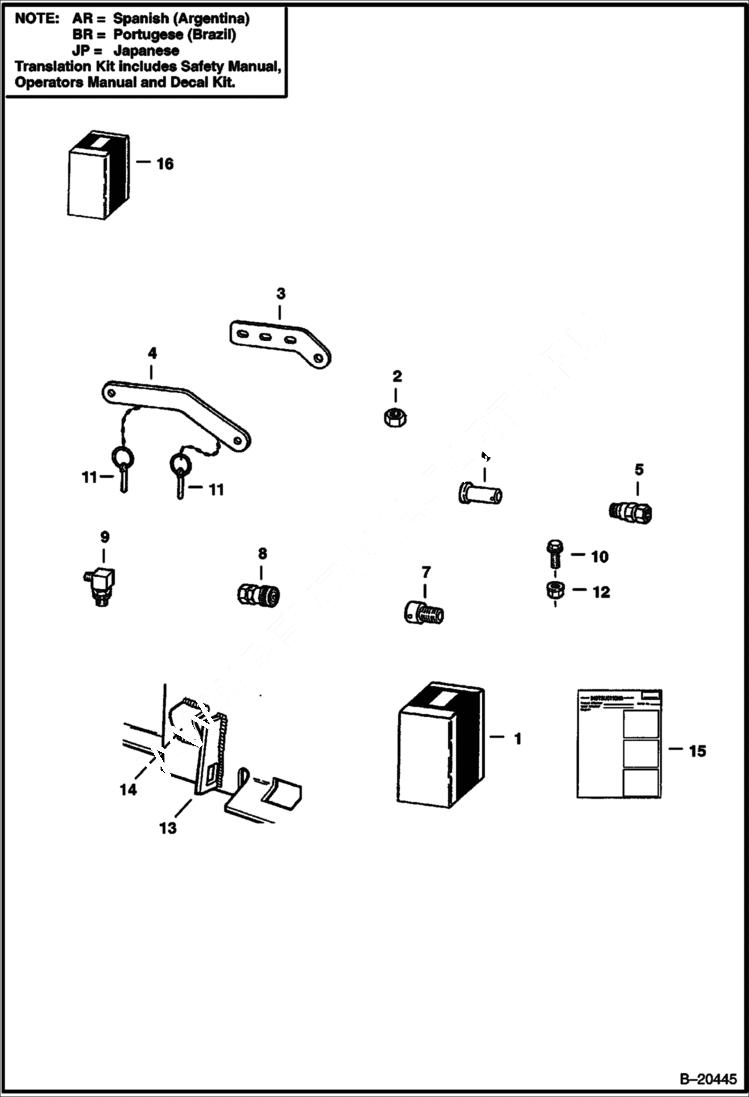

Запчасти Bobcat BACKHOE BACKHOE (Backhoe Mounting Kit) (905B) (For 553) 905 BACKHOE

1

KIT SALES - backhoe mtg. - Ref. 2-15 - Sales #6712092

2

61D16

LCKNUT Was 61D000006B - D

3

6596558

PLATE pivot

4

6596559

BAR lockout - tilt

5

6513634

QUICK COUPLER male - poppet

5

6674688

COUPLER, FF MALE straight - Was 6667808 - A

5

6679841

SEAL Was 6672026 - A

6

6557920

PIN

7

6557887

PIN threaded

8

6512159

QUICK COUPLER female - poppet

8

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

58K211

O RING 10 Use with poppet coupler

9

1300059

ELBOW Use with poppet couplers

9

6589193

ELBOW Use with flush face couplers

10

31C1028

SCREW

11

6649496

CLICK PIN Was 6513692 - A

12

53D10

NUT

13

6594048

PLATE required when backhoe is used on 450 series, but must be removed for 553F - See Serviceletter of 2 April 1998

14

6594049

ANGLE required when backhoe is used on 450 series, but must be removed for 553F - See Serviceletter of 2 April 1998

15

6566553

INSTRUCTIONS

16

6718710AR

KIT translation - SEE NOTE

16

6718710BR

KIT translation - SEE NOTE
