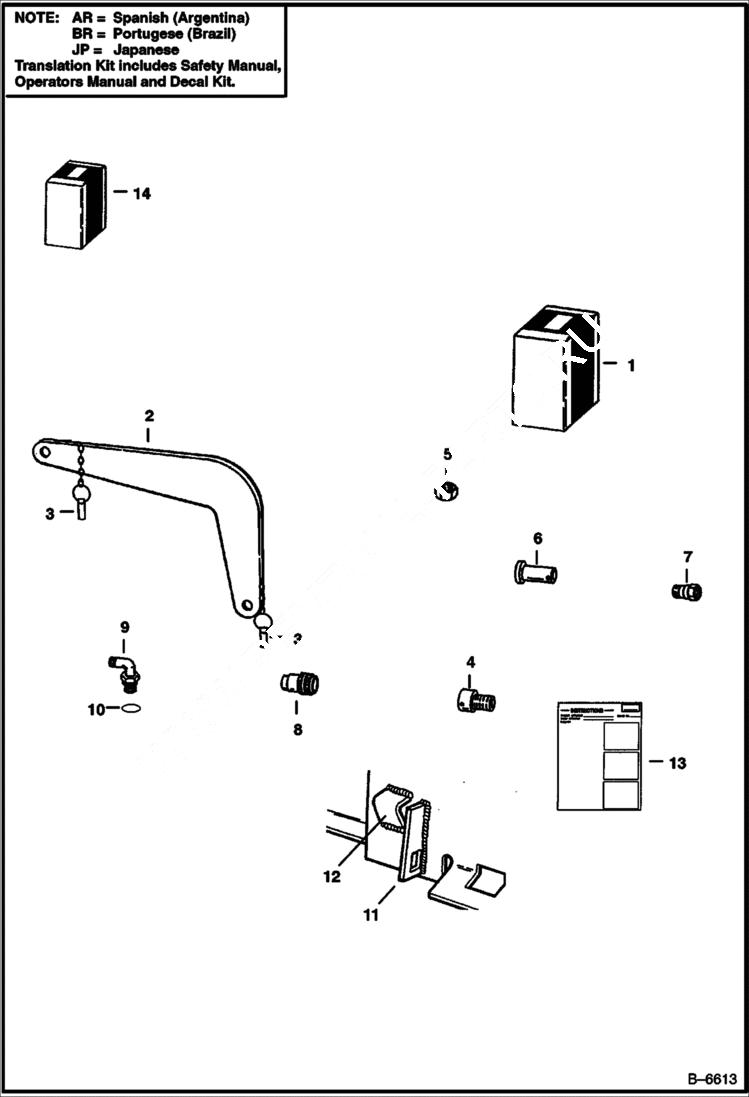

Запчасти Bobcat BACKHOE BACKHOE (Backhoe Mounting Kit) (905B) (For 400 Series) 905 BACKHOE

1

KIT SALES - Ref. 2-10 - Sales #6712109

2

6565726

BAR W/Ref. 3

3

6649496

CLICK PIN Was 6513692 - A

4

6557887

PIN

5

61D16

LCKNUT

6

6557920

PIN

7

QUICK COUPLER NLA - male - poppet - Was 6630093 - A

7

6667806

COUPLER male - flush face

8

QUICK COUPLER NLA - female - poppet - Was 6630092 - A

8

6667805

COUPLER, FF FEMALE straight

8

25K30024

O RING 10

9

1300059

ELBOW W/Ref. 10

10

79K8

O RING 10 Was 91F000006B - A

11

6594048

PLATE required when backhoe is used on 450 series, but must be removed for 553F - See Serviceletter of 2 April 1998

12

6594049

ANGLE required when backhoe is used on 450 series, but must be removed for 553F - See Serviceletter of 2 April 1998

13

6566553

INSTRUCTIONS

14

6718710AR

KIT translation - SEE NOTE

14

6718710BR

KIT translation - SEE NOTE
