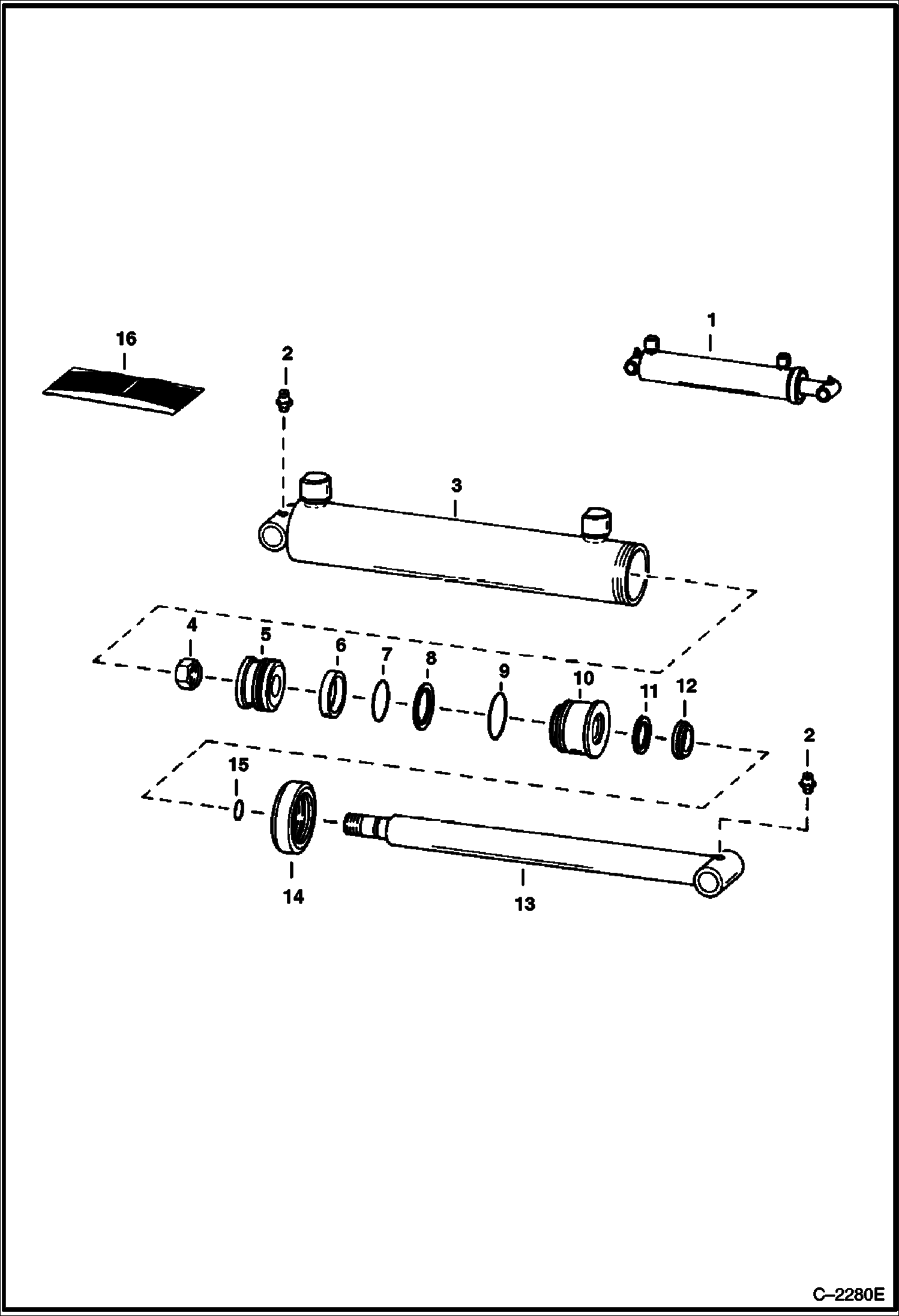

Запчасти Bobcat BACKHOE BACKHOE (Crowd Cylinder) (905) (905A) (905B) 905 BACKHOE

1

6554896

CYLINDER

2

10H35

FITTING, GREASE 10

3

CASE NLA

4

NUT NLA - buy locally - Was 6513452 - A

5

PISTON NLA - Was 6513453 - A

6

RING NSS - wear

7

SEAL NSS - piston

8

SEAL NSS - slipper

9

SEAL NSS - gland static

10

6513455

GLAND

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

6513459

ROD Was 6513463 - A

14

6513460

COLLAR

15

SEAL NSS - rod static

16

6641366

SEAL KIT W/Ref. 6-9, 11, 12 & 15 - Was 6554897 - A
