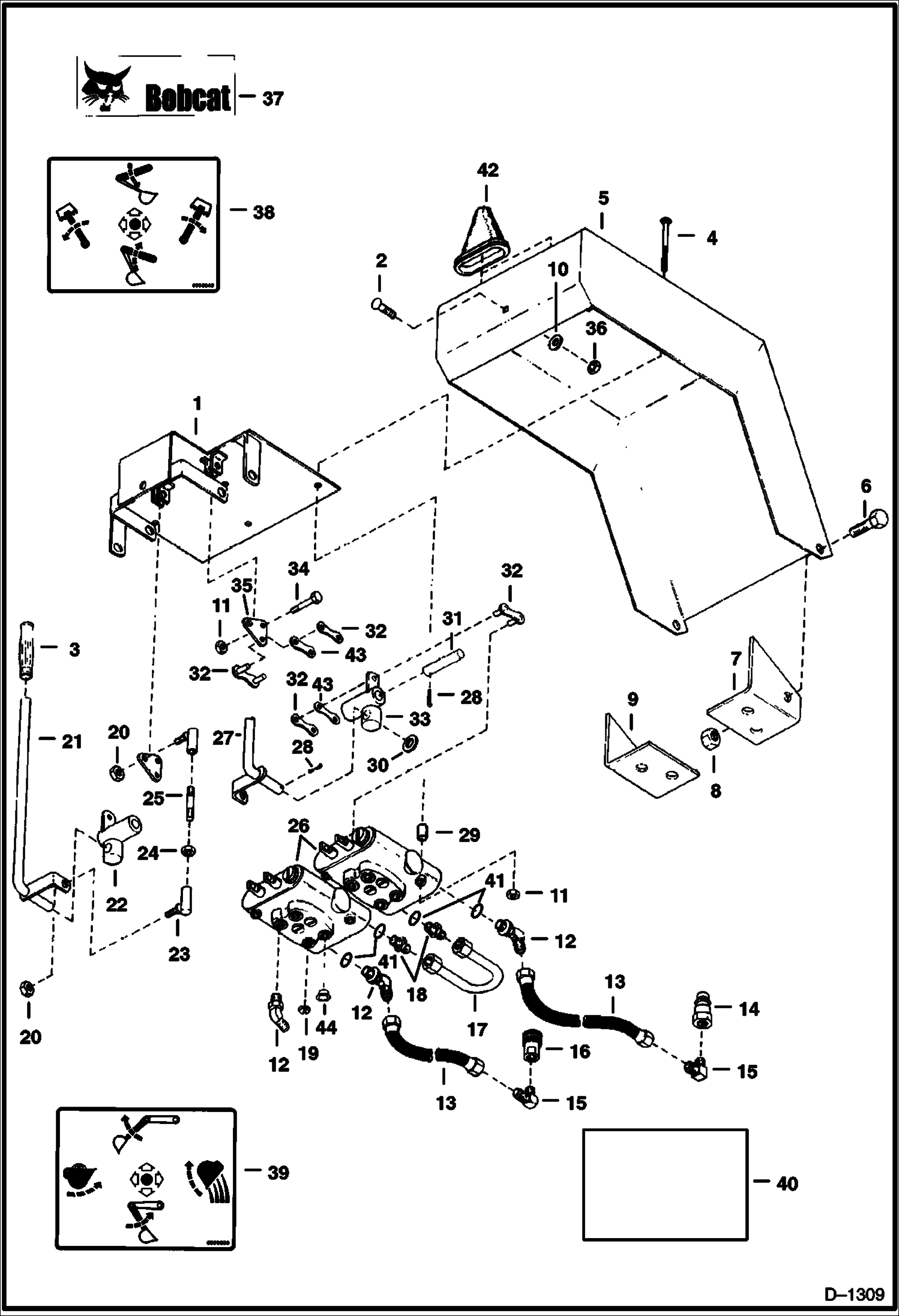

Запчасти Bobcat BACKHOE BACKHOE (Control Linkage) (905) (905A) (905B) 905 BACKHOE

1

6554420

MOUNT valve

2

7C512

SCREW

3

6512354

HANDLE grip

4

17C448

BOLT Was 7C-448 - B

5

6554419

COVER

6

17C816

BOLT

7

6554402

BRACKET

8

85D8

NUT, 5

9

6554401

BRACKET

10

25E15

WASHER

11

85D4

NUT 5

12

18K5

ELBOW W/Ref. 41

13

6530891

HOSE Was 6554395 - A

14

6519318

QUICK COUPLER male

15

669499

ELBOW

16

6519317

QUICK COUPLER female

16

58K116

O RING 10

17

6554400

TUBE

18

15K5

FITTING W/Ref. 41

19

6512234

ORIFICE

20

82D5

NUT 5

21

6554421

LEVER L.H.

22

6554423

PIVOT

23

6512356

BALL JOINT ball

24

62D5

NUT

25

6532193

ROD Was 1538150B - B

26

VALVE See Illustration BACKHOE/ B9303 See Illustration BACKHOE/ B2291 hydraulic

27

6554422

LEVER R.H.

28

1F416

PIN

29

791979

SPACER

30

25E21

WASHER 5

31

6554398

PIN

32

6599644

LINK

33

6554424

PIVOT

34

17C416

BOLT

35

6554399

BELLCRANK

36

85D5

NUT 5

37

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6569071 - A

38

6558049

DECAL operator

39

6558050

DECAL operator

40

6565812

DECAL mounting & dismounting

41

79K6

O RING 10 Was 91F000005B - A

42

BOOT NLA

43

6631967

SPACER

44

6655091

ORIFICE .031 - See Serviceletter 12-11-89
