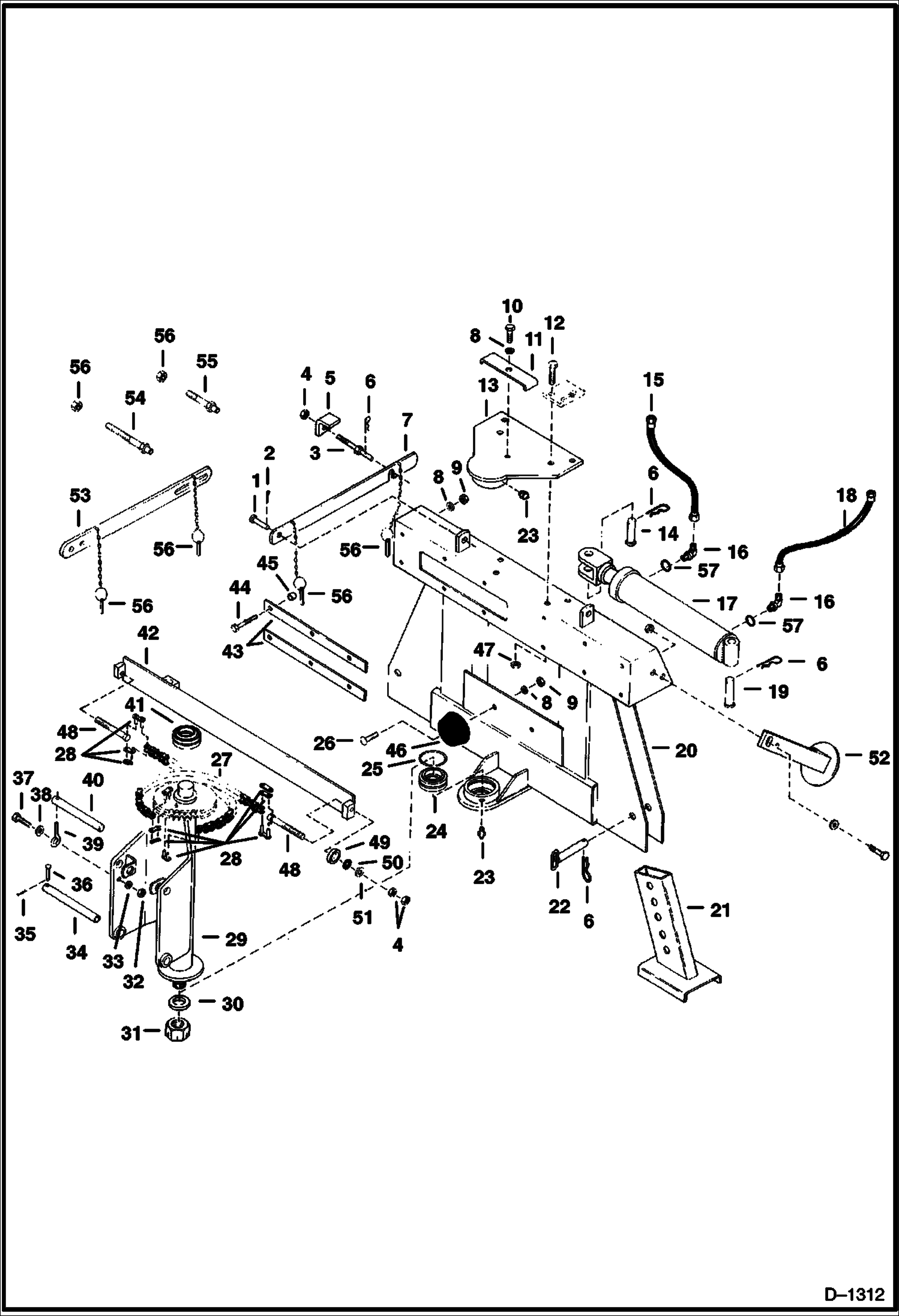

Запчасти Bobcat BACKHOE BACKHOE (Main Frame & Swing Assembly) (905) 905 BACKHOE

1

6512359

PIN

2

COTTER PIN NLA - Was 1F000520B - A

3

6554418

BOLT

4

7D10

NUT Was 7D000005B - B

5

6554417

BRACKET

6

1318565

COTTER PIN

7

6513693

BAR ASSY.

7

6554416

BAR

8

4E6

WASHER

9

61D6

NUT 5

10

17C620

BOLT

11

6512350

CLAMP

12

17C820

BOLT

13

6906922

MOUNT swing post - Was 6554405 - A

14

6557920

PIN Was 6512352 - A

15

17K5

ELBOW W/Ref. 57

16

6530884

HOSE Was 6554388 - A

17

6554890

CYLINDER See Illustration BACKHOE/ C2281A swing

18

6530892

HOSE Was 6554396 - A

19

6514638

CLEVIS PIN Was 6512351 - A

20

FRAME NLA - mounting - Use 1-6594095 , 1-6557894 & 1-6557821

21

STABILIZER NLA - Was 6554406 - A

22

6554415

PIN

23

10H35

FITTING, GREASE 10

24

713418

BUSHING

25

711406

RING

26

6514537

BOLT

27

6512900

CHAIN

28

6515191

LINK

29

6554404

POST swing

30

6554411

WASHER

31

86D20

NUT Was 6554892 - A

32

61D5

NUT

33

4E5

WASHER

34

6554412

PIN

35

1F308

PIN, COTTER

36

6512353

CLEVIS PIN

37

17C520

BOLT 5

38

25E15

WASHER

39

6554414

PIN eye

40

6554413

PIN

41

1307537

BUSHING

42

6554407

SLIDE

43

6554409

BAR

44

17C628

BOLT

45

6512358

SPACER

46

6562109

STOP, SWING Was 6554410 - A

47

81D8

NUT

48

6594097

BOLT shoulder - Was 6512899 - A

49

6594041

CUP

50

6594090

WASHER rubber

51

6557777

WASHER

52

6557922

BRAKE

53

6513696

BAR ASSY.

53

6558006

BAR limiting

54

6558074

BOLT pin

55

6558075

BOLT pin

56

6649496

CLICK PIN Was 6513692 - A

57

79K6

O RING 10 Was 91F000005B - A
